19/33kV Three Core
19/33kV Three Core

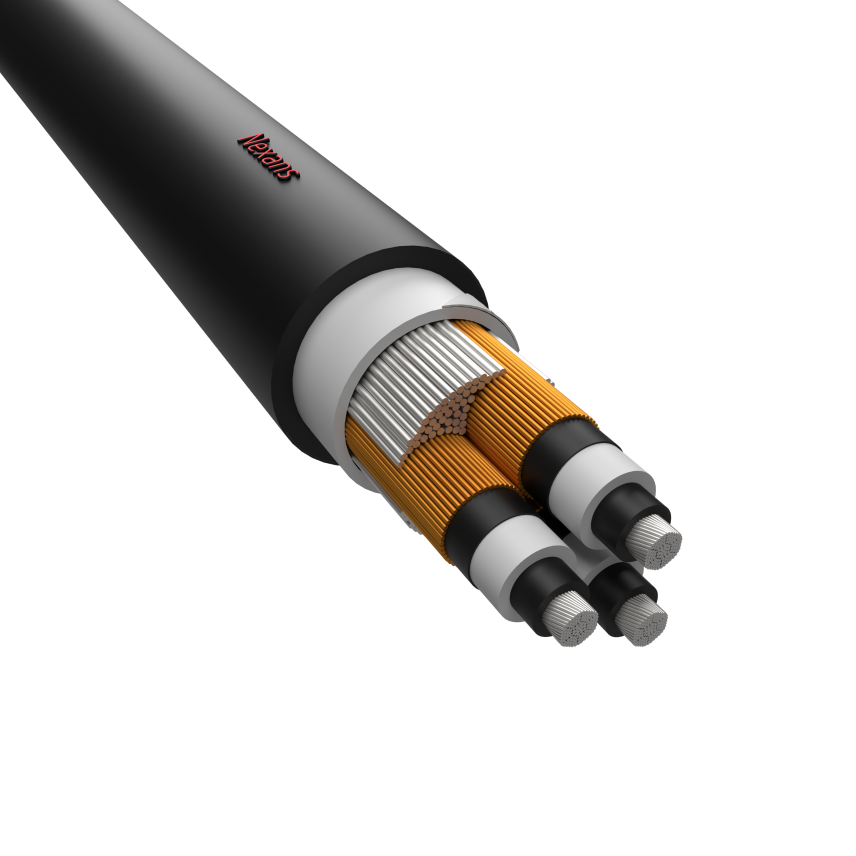

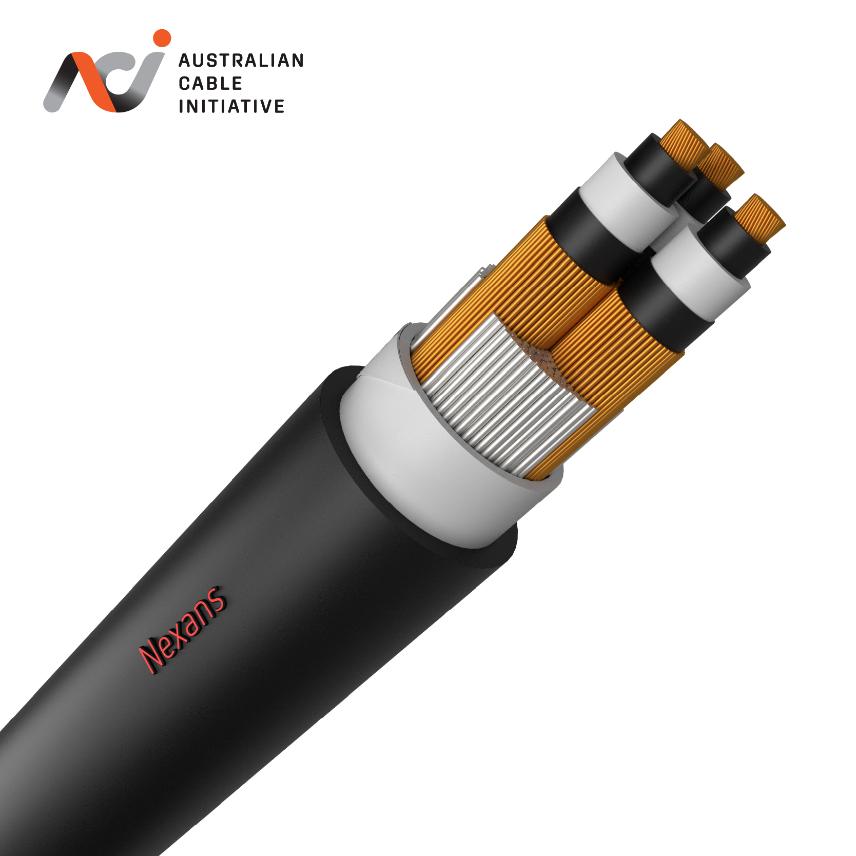

19/33kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level
Read more3C 120mm2 Al 19/33kV PVC Black
Nexans ref. XNHA23AA003CXAA - Country ref. XNHA23AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 80.2 mm
3C 120mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP23AA003CXAA - Country ref. XNHP23AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 81.1 mm
3C 150mm2 Al 19/33kV PVC Black
Nexans ref. XNHA24AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 83.9 mm
3C 150mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP24AA003CXAA - Country ref. XNHP24AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 84.8 mm
3C 185mm2 Al 19/33kV PVC Black
Nexans ref. XNHA25AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 87.3 mm
3C 185mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP25AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 88.4 mm
3C 240mm2 Al 19/33kV PVC Black
Nexans ref. XNHA26AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 92.9 mm
3C 240mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP26AA003CXAA - Country ref. XNHP26AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 94.1 mm
3C 300mm2 Al 19/33kV PVC Black
Nexans ref. XNHA27AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 98.1 mm
3C 300mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP27AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 99.4 mm
3C 400mm2 Al 19/33kV PVC Black
Nexans ref. XNHA28AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 104.8 mm
3C 400mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP28AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 106.2 mm
3C 500mm2 Al 19/33kV PVC Black
Nexans ref. XNHA30AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 112.9 mm
3C 500mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP30AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 112.9 mm
3C 50mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP19AA003CXAA - Country ref. XNHP19AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 69.4 mm
3C 50mm2 Cu 19/33kV PVC Black
Nexans ref. XNHA19AA003CXAA - Country ref. XNHA19AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 69.5 mm
3C 70mm2 Al 19/33kV PVC Black
Nexans ref. XNHA20AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 73.1 mm
3C 70mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP20AA003CXAA - Country ref. XNHP20AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 73.0 mm
3C 95mm2 Al 19/33kV PVC Black
Nexans ref. XNHA22AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 77.0 mm
3C 95mm2 Cu 19/33kV PVC Black
Nexans ref. XNHP22AA003CXAA - Country ref. XNHP22AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 77.3 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2

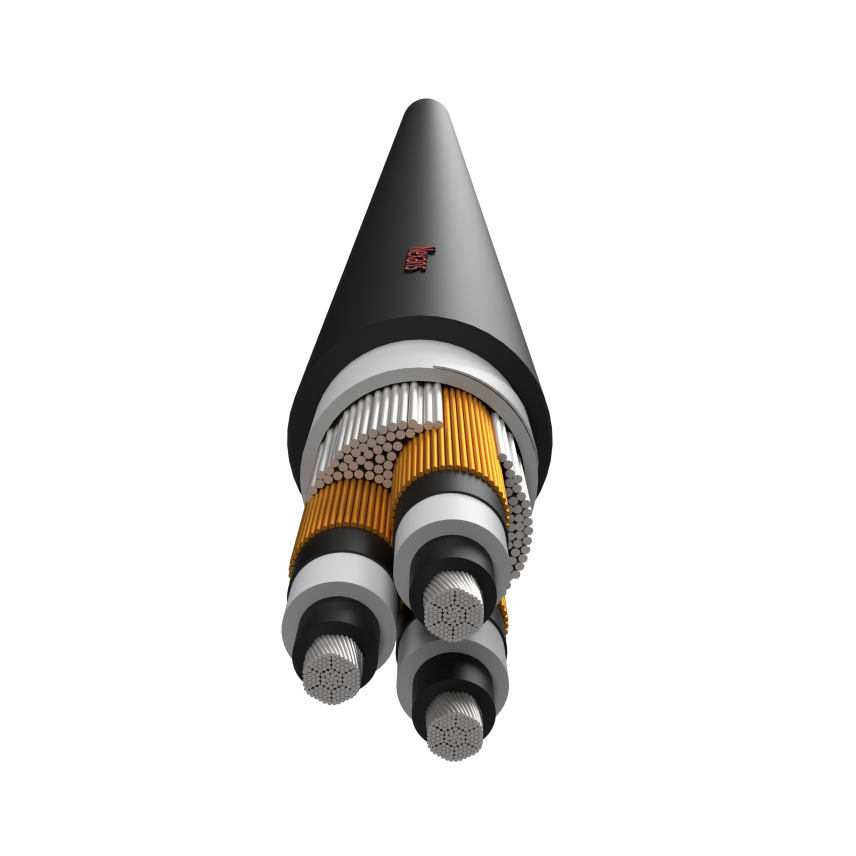

Construction
- Stranded compacted conductor
- Semi-conductive insulation screen
- Copper wire screen
- XLPE insulation
- Semi-conductive conductor screen
- FIllers
- PVC sheath
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor shape
Circular
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Nominal overall diameter
-
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
-
Resources
Resources
Current carrying capacity table (in Amps) - 19/33kV Three Core
Current carrying capacity table (in Amps) - 19/33kV Three Core
| Conductor cross-section |
|
|
|
|
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 50.0 | 204.0 | 158.0 | 217.0 | 168.0 | 156.0 | 121.0 | 205.0 | 159.0 | 170.0 | 132.0 |
| 70.0 | 252.0 | 196.0 | 269.0 | 209.0 | 198.0 | 153.0 | 250.0 | 194.0 | 213.0 | 165.0 |
| 95.0 | 306.0 | 237.0 | 328.0 | 254.0 | 238.0 | 184.0 | 299.0 | 232.0 | 255.0 | 197.0 |
| 120.0 | 352.0 | 272.0 | 377.0 | 292.0 | 271.0 | 210.0 | 341.0 | 264.0 | 290.0 | 224.0 |
| 150.0 | 397.0 | 307.0 | 427.0 | 330.0 | 304.0 | 236.0 | 381.0 | 295.0 | 324.0 | 251.0 |
| 185.0 | 454.0 | 351.0 | 488.0 | 378.0 | 345.0 | 268.0 | 431.0 | 334.0 | 366.0 | 284.0 |
| 240.0 | 533.0 | 413.0 | 575.0 | 445.0 | 402.0 | 312.0 | 499.0 | 388.0 | 424.0 | 330.0 |
| 300.0 | 609.0 | 472.0 | 658.0 | 509.0 | 456.0 | 354.0 | 563.0 | 438.0 | 478.0 | 372.0 |
| 400.0 | 701.0 | 548.0 | 759.0 | 593.0 | 542.0 | 424.0 | 640.0 | 502.0 | 562.0 | 440.0 |
| 500.0 | 797.0 | 632.0 | 864.0 | 686.0 | 610.0 | 484.0 | 718.0 | 570.0 | 630.0 | 499.0 |
|
In air touching (3 core) |
|
In air spaced (3 core) |
|
In air enclosed (3 core) |
|
Underground Direct Buried (3 core) |
|
Underground ducts (3 core) |
