12.7/22kV Three Core

12.7/22kV Three Core 12.7/22kV Three Core 12.7/22kV Three Core

12.7/22kV Three Core

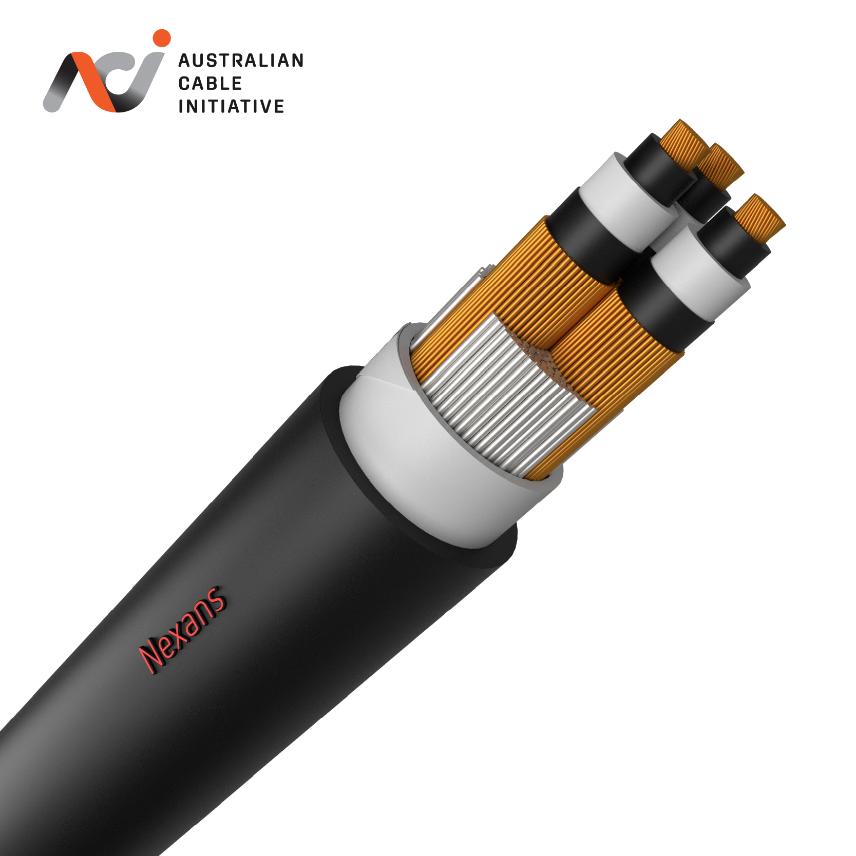

12.7/22kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level

Read more
Contact us

Products

Actions
Filters

  • products

12.7/22kV Three Core

Nexans ref. XLHA18AA003CXAA - Country ref. XLHA18AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 54.7 mm



12.7/22kV Three Core

Nexans ref. XLHA19AA003CXAA - Country ref. XLHA19AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 57.4 mm



12.7/22kV Three Core

Nexans ref. XLHA20AA003CXAA - Country ref. XLHA20AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 61.0 mm



12.7/22kV Three Core

Nexans ref. XLHA22AA003CXAA - Country ref. XLHA22AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 64.9 mm



12.7/22kV Three Core

Nexans ref. XLHA24AA003CXAA - Country ref. XLHA24AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 71.4 mm



12.7/22kV Three Core

Nexans ref. XLHA25AA003CXAA - Country ref. XLHA25AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 74.8 mm



12.7/22kV Three Core

Nexans ref. XLHA26AA003CXAA - Country ref. XLHA26AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 80.2 mm



12.7/22kV Three Core

Nexans ref. XLHA27AA003CXAA - Country ref. XLHA27AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 85.9 mm



12.7/22kV Three Core

Nexans ref. XLHA28AA003CXAA - Country ref. XLHA28AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Aluminum
  • Conductor cross-section: 400 mm²
  • Nominal overall diameter: 92.7 mm



12.7/22kV Three Core

Nexans ref. XLHP18AA003CXAA - Country ref. XLHP18AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 54.6 mm



12.7/22kV Three Core

Nexans ref. XLHP19AA003CXAA - Country ref. XLHP19AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 57.3 mm



12.7/22kV Three Core

Nexans ref. XLHP20AA003CXAA - Country ref. XLHP20AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 60.9 mm



12.7/22kV Three Core

Nexans ref. XLHP20AA003JBAA - Country ref. XLHP20AA003JBAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 60.9 mm



12.7/22kV Three Core

Nexans ref. XLHP22AA003JBAA - Country ref. XLHP22AA003JBAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 65.2 mm



12.7/22kV Three Core

Nexans ref. XLHP22AA003CXAA - Country ref. XLHP22AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 65.2 mm



12.7/22kV Three Core

Nexans ref. XLHP24AA003CXAA - Country ref. XLHP24AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 72.2 mm



12.7/22kV Three Core

Nexans ref. XLHP25AA003CXAA - Country ref. XLHP25AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 75.9 mm



12.7/22kV Three Core

Nexans ref. XLHP26AA003CXAA - Country ref. XLHP26AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 81.5 mm



12.7/22kV Three Core

Nexans ref. XLHP27AA003CXAA - Country ref. XLHP27AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 87.5 mm



12.7/22kV Three Core

Nexans ref. XLHP28AA003CXAA - Country ref. XLHP28AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 400 mm²
  • Nominal overall diameter: 94.1 mm



12.7/22kV Three Core

Nexans ref. XLHP23AA003CXAA - Country ref. XLHP23AA003CXAA

  • Packaging: Cut to length (m)
  • Conductor material: Copper
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 68.9 mm



12.7/22kV Three Core

Nexans ref. XLHA23AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 68.1 mm



Description

Description

Standards

  • Product
    AS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2

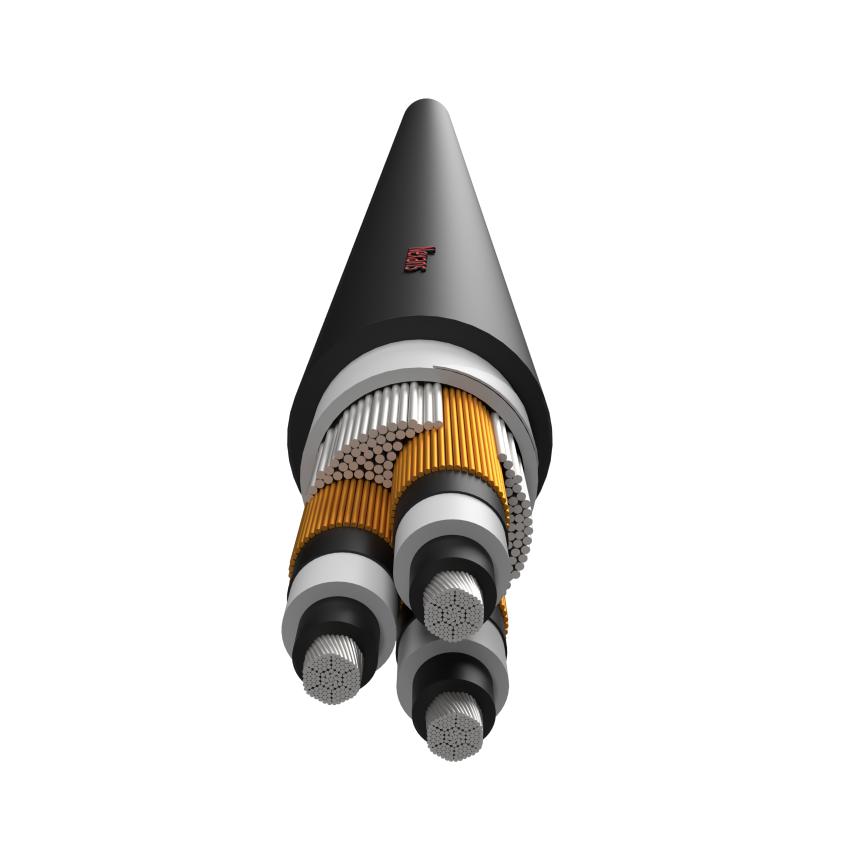

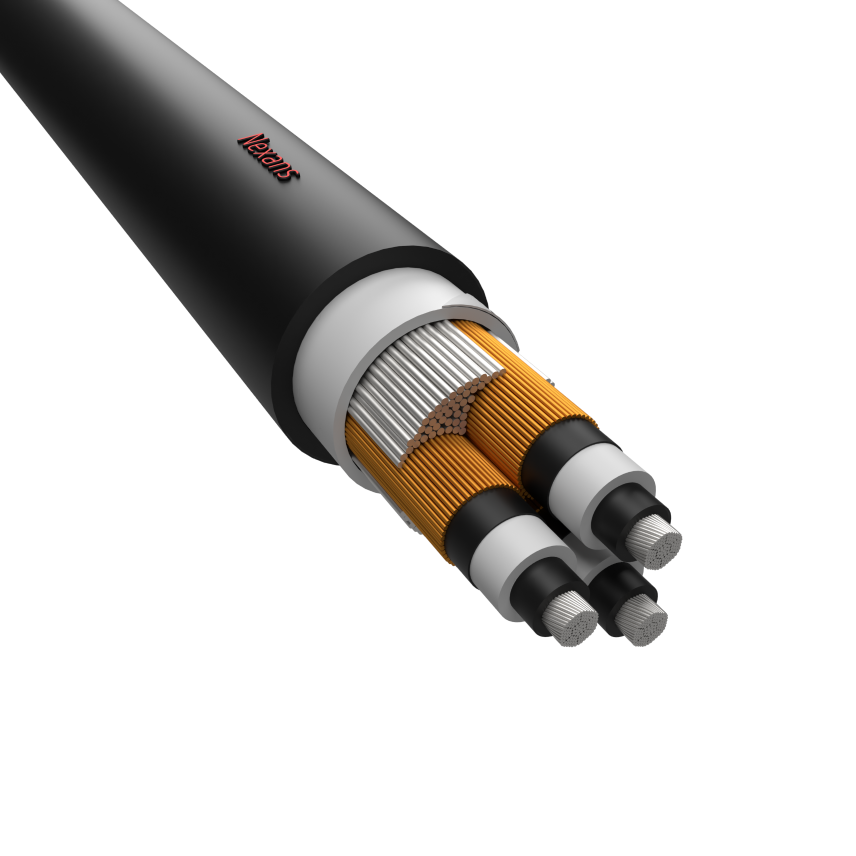

Construction

  • Stranded compacted conductor
  • Semi-conductive insulation screen
  • Copper wire screen
  • Semi-conductive conductor screen
  • XLPE insulation
  • Fillers
  • PVC sheath

Characteristics

Characteristics

Resources

Resources

Current carrying capacity table (in Amps) - 12.7/22kV Three Core

Current carrying capacity table (in Amps) - 12.7/22kV Three Core

Conductor cross-section
mm² Cu Al Cu Al Cu Al Cu Al Cu Al
35.0 167.0 130.0 178.0 138.0 126.0 97.0 173.0 134.0 140.0 109.0
50.0 199.0 155.0 213.0 165.0 152.0 118.0 204.0 158.0 168.0 130.0
70.0 247.0 192.0 265.0 205.0 187.0 145.0 250.0 194.0 205.0 159.0
95.0 301.0 233.0 323.0 250.0 225.0 175.0 299.0 232.0 246.0 191.0
120.0 346.0 268.0 373.0 288.0 258.0 199.0 340.0 264.0 280.0 217.0
150.0 392.0 303.0 422.0 326.0 299.0 232.0 381.0 295.0 321.0 249.0
185.0 448.0 346.0 483.0 374.0 339.0 263.0 430.0 334.0 363.0 281.0
240.0 527.0 408.0 570.0 441.0 396.0 307.0 498.0 388.0 421.0 327.0
300.0 602.0 467.0 652.0 506.0 449.0 349.0 562.0 437.0 474.0 369.0
400.0 694.0 543.0 754.0 590.0 513.0 403.0 638.0 501.0 539.0 423.0
500.0 789.0 628.0 859.0 683.0 601.0 478.0 714.0 568.0 624.0 497.0
In air touching (3 core)
In air spaced (3 core)
In air enclosed (3 core)
Underground Direct Buried (3 core)
Underground ducts (3 core)
