6.35/11kV Three Core PVC

Products

3C 120mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA23AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 58.2 mm



3C 120mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP23AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 58.9 mm



3C 150mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA24AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 61.5 mm



3C 150mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP24AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 62.3 mm



3C 16mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP15AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 40.0 mm



3C 185mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA25AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 64.9 mm



3C 185mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP25AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 66.0 mm



3C 240mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA26AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 70.3 mm



3C 240mm2 Al 6.35/11kV PVC to Powercor Spec

Nexans ref. XJHA26SUT03CXAA

  • Packaging: Drum (400m)
  • Conductor material: Aluminum
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 78.8 mm



3C 240mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP26AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 71.6 mm



3C 25mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP17AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 42.3 mm



3C 300mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA27AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 75.5 mm



3C 300mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP27AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 76.9 mm



3C 35mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA18AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 44.6 mm



3C 35mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP18AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 44.7 mm



3C 400mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA28AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 400 mm²
  • Nominal overall diameter: 82.8 mm



3C 400mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP28AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 400 mm²
  • Nominal overall diameter: 84.2 mm



3C 500mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA30AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 500 mm²
  • Nominal overall diameter: 90.9 mm



3C 500mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP30AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 500 mm²
  • Nominal overall diameter: 90.9 mm



3C 50mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA19AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 47.5 mm



3C 50mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP19AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 47.4 mm



3C 70mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA20AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 51.1 mm



3C 70mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP20AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 51.0 mm



3C 95mm2 Al 6.35/11kV PVC Black

Nexans ref. XJHA22AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 55.0 mm



3C 95mm2 Cu 6.35/11kV PVC Black

Nexans ref. XJHP22AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 55.3 mm



Description

Description

Standards

  • International
    IEC 60228; IEC 60502-2
  • National
    AS/NZS 1125; AS/NZS 1429.1

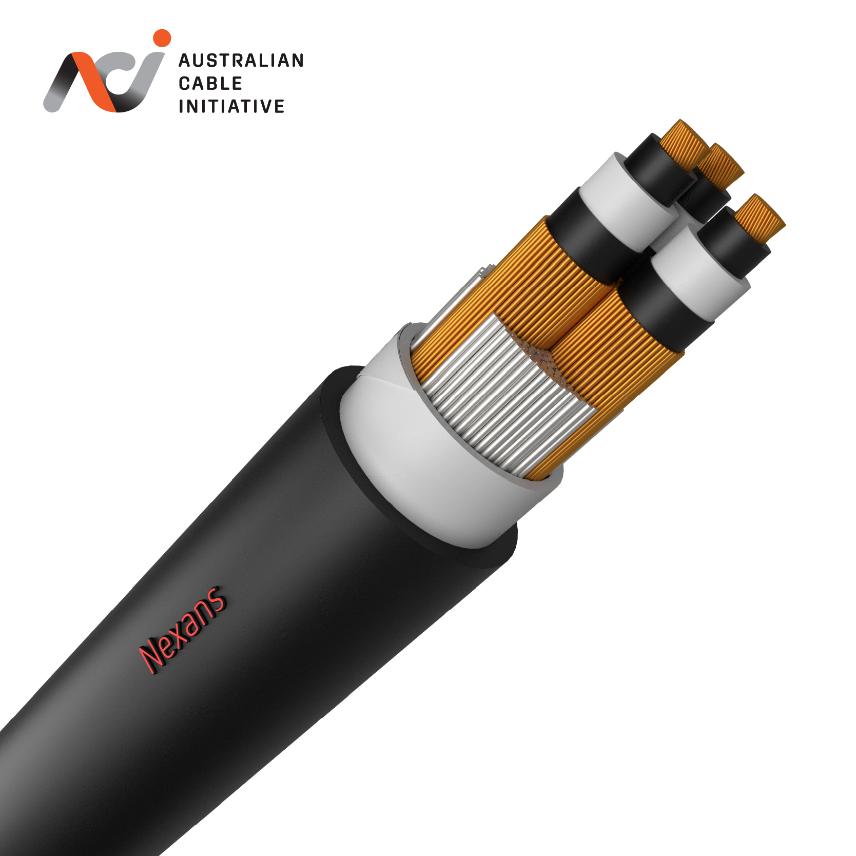

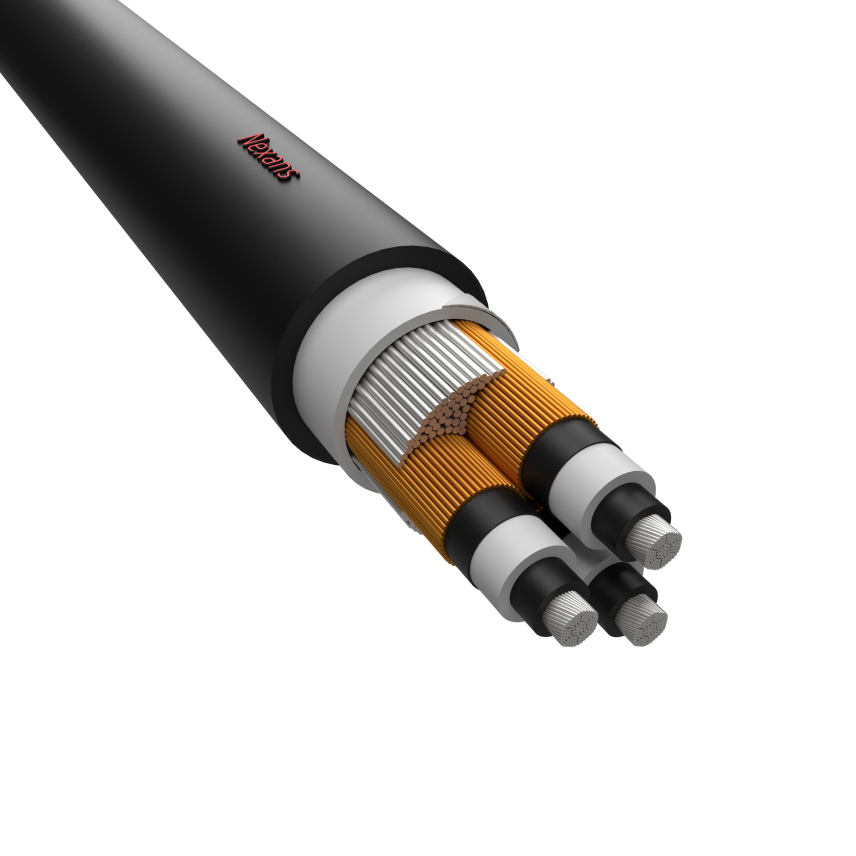

Construction

  • Stranded compacted conductors
  • Semi-conductive insulation screen
  • Copper wire screen
  • XLPE insulation
  • Semi-conductive conductor screen
  • PVC sheath
  • Fillers

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor shape
Circular
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Resources

Resources

Current carrying capacity table (in Amps) - 6.35/11kV Three Core

Current carrying capacity table (in Amps) - 6.35/11kV Three Core

Conductor cross-section
mm² Cu Al Cu Al Cu Al Cu Al Cu Al
16.0 104.0 0.0 110.0 0.0 78.0 0.0 113.0 0.0 89.0 0.0
25.0 134.0 0.0 143.0 0.0 100.0 0.0 145.0 0.0 114.0 0.0
35.0 162.0 126.0 173.0 135.0 120.0 93.0 173.0 134.0 136.0 106.0
50.0 194.0 151.0 208.0 161.0 145.0 112.0 204.0 158.0 162.0 126.0
70.0 241.0 187.0 259.0 201.0 178.0 138.0 249.0 193.0 199.0 154.0
95.0 295.0 228.0 317.0 245.0 220.0 171.0 299.0 231.0 242.0 188.0
120.0 340.0 263.0 367.0 283.0 252.0 195.0 340.0 263.0 276.0 214.0
150.0 385.0 298.0 415.0 321.0 284.0 220.0 380.0 295.0 310.0 240.0
185.0 440.0 341.0 476.0 368.0 322.0 250.0 429.0 333.0 350.0 272.0
240.0 519.0 403.0 563.0 436.0 389.0 292.0 497.0 387.0 416.0 316.0
300.0 594.0 462.0 645.0 501.0 442.0 344.0 560.0 437.0 470.0 366.0
400.0 685.0 538.0 746.0 585.0 505.0 397.0 635.0 500.0 534.0 420.0
500.0 779.0 622.0 850.0 679.0 569.0 454.0 710.0 567.0 597.0 477.0
In air touching (3 core)
In air spaced (3 core)
In air enclosed (3 core)
Underground direct buried (3 core)
Underground ducts (3 core)
