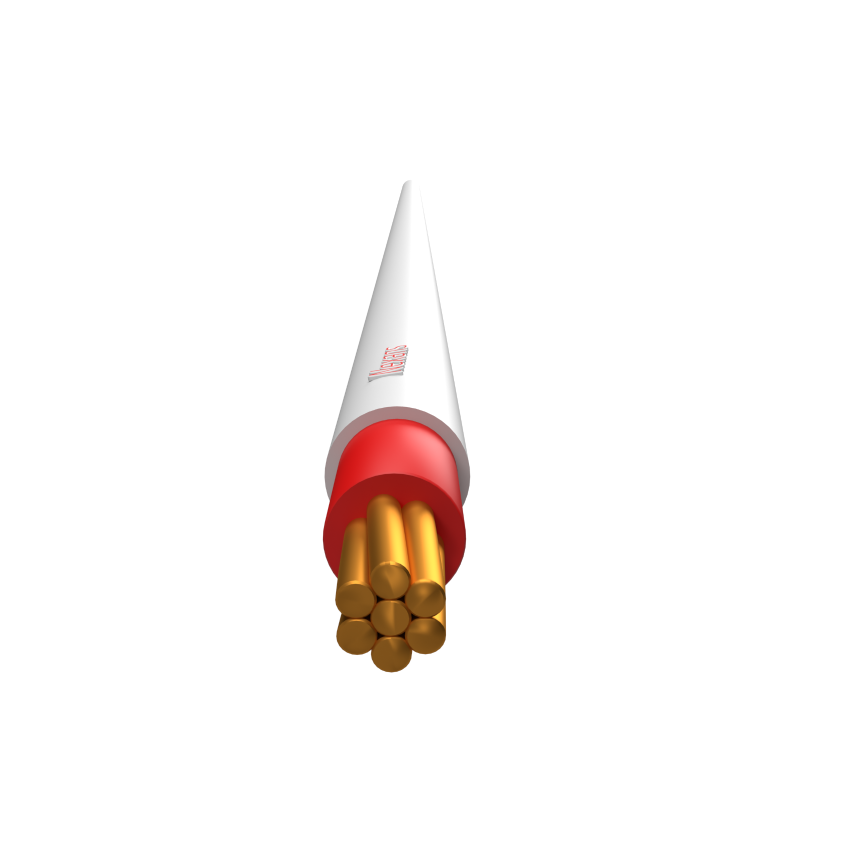

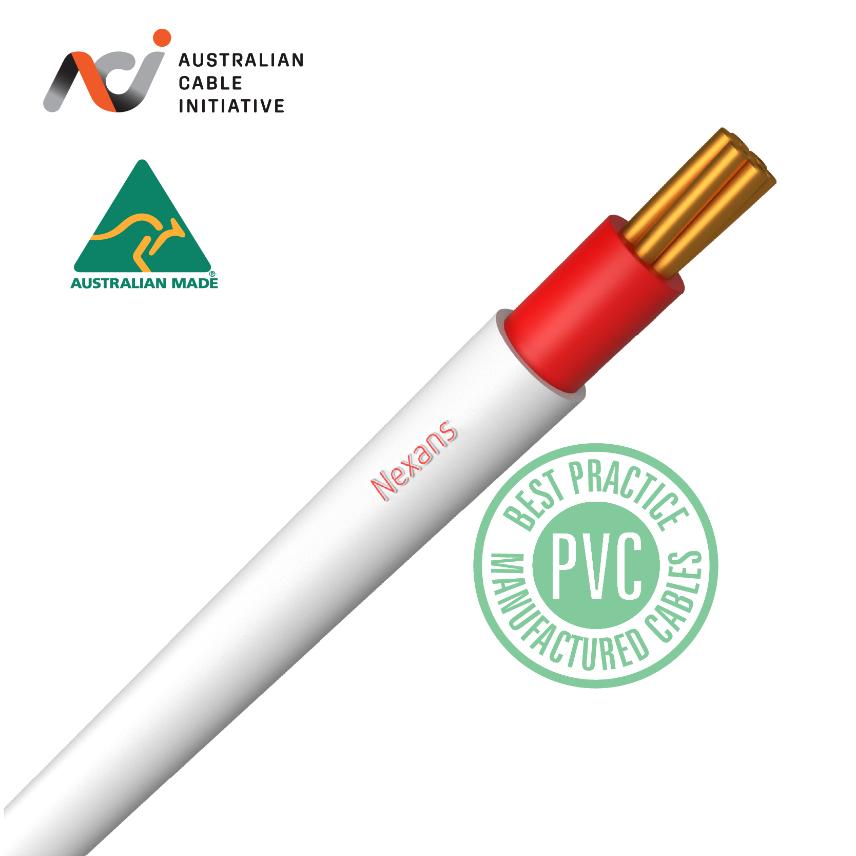

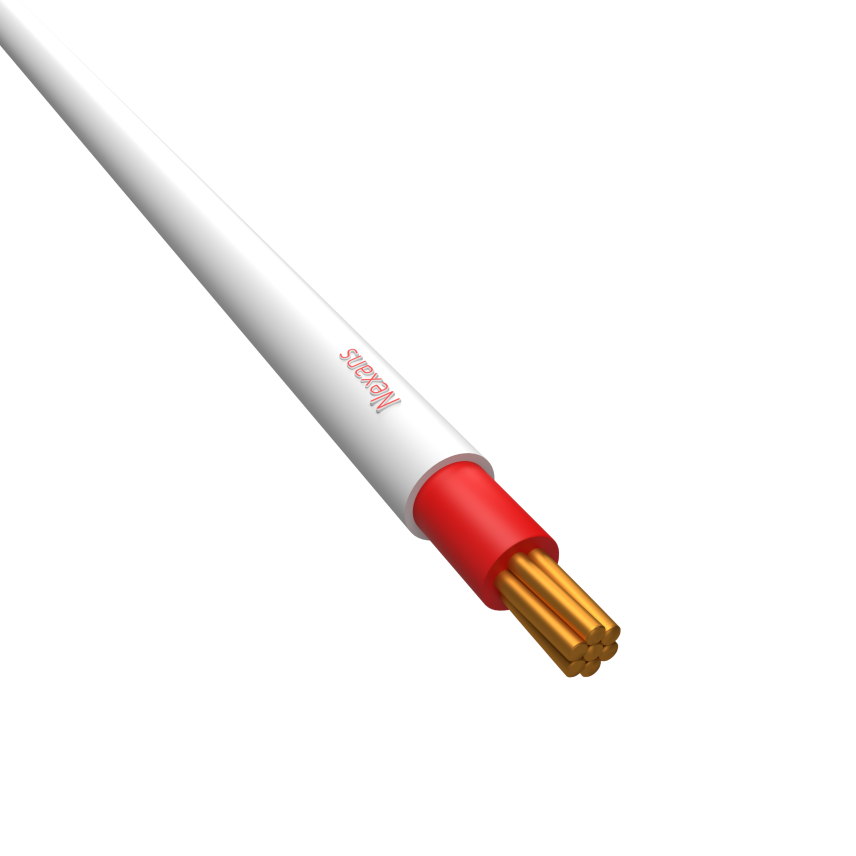

PVC SDI Single Core

PVC SDI Single Core PVC SDI Single Core PVC SDI Single Core

PVC SDI Single Core

Single core, V-90 insulated, PVC sheathed to AS/NZS 5000, copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.

Read more
Contact us

Products

Actions
Filters

  • products

1.0mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP02A1001WTRD - Country ref. AABP02A1001WTRD

  • Colour: White / red
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid, Class 1
  • Approximate weight: 2.7 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1 mm²
  • Nominal overall diameter: 4.0 mm
  • Maximum installation tension: 70 N
  • Minimum Bend Radius - During Installation (under Tension): 24 mm
  • Minimum Bend Radius - Installed: 16 mm



1.0mm2 PVC SDI Red Insulation White Sheath 200m

Nexans ref. AABP02A2001WTRD - Country ref. AABP02A2001WTRD

  • Colour: White / red
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid, Class 1
  • Approximate weight: 2.7 kg/100m
  • Cable length: 200 m
  • Conductor cross-section: 1 mm²
  • Nominal overall diameter: 4.0 mm
  • Maximum installation tension: 70 N
  • Minimum Bend Radius - During Installation (under Tension): 24 mm
  • Minimum Bend Radius - Installed: 16 mm



1.5mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP05A1001WTBK - Country ref. AABP05A1001WTBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 3.2 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 4.4 mm
  • Maximum installation tension: 105 N
  • Minimum Bend Radius - During Installation (under Tension): 26 mm
  • Minimum Bend Radius - Installed: 18 mm



1.5mm2 PVC SDI Blue Insulation Blue Sheath 100m

Nexans ref. AABP05A1001BEBE - Country ref. AABP05A1001BEBE

  • Colour: Blue
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 3.2 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 4.4 mm
  • Maximum installation tension: 105 N
  • Minimum Bend Radius - During Installation (under Tension): 26 mm
  • Minimum Bend Radius - Installed: 18 mm



1.5mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP05A1001WTRD - Country ref. AABP05A1001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 3.2 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 4.4 mm
  • Maximum installation tension: 105 N
  • Minimum Bend Radius - During Installation (under Tension): 26 mm
  • Minimum Bend Radius - Installed: 18 mm



1.5mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP05A5001WTRD - Country ref. AABP05A5001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 3.2 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 4.4 mm
  • Maximum installation tension: 105 N
  • Minimum Bend Radius - During Installation (under Tension): 26 mm
  • Minimum Bend Radius - Installed: 18 mm



1.5mm2 PVC SDI White Insulation White Sheath 100m

Nexans ref. AABP05A1001WTWT - Country ref. AABP05A1001WTWT

  • Colour: White
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 3.2 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 4.4 mm
  • Maximum installation tension: 105 N
  • Minimum Bend Radius - During Installation (under Tension): 26 mm
  • Minimum Bend Radius - Installed: 18 mm



10mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP13A1001WVBK - Country ref. AABP13A1001WVBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 14.3 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 7.8 mm
  • Maximum installation tension: 700 N
  • Minimum Bend Radius - During Installation (under Tension): 47 mm
  • Minimum Bend Radius - Installed: 31 mm



10mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP13A1001WVRD - Country ref. AABP13A1001WVRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 14.3 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 7.8 mm
  • Maximum installation tension: 700 N
  • Minimum Bend Radius - During Installation (under Tension): 47 mm
  • Minimum Bend Radius - Installed: 31 mm



10mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP13A5001WVRD - Country ref. AABP13A5001WVRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 14.3 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 7.8 mm
  • Maximum installation tension: 700 N
  • Minimum Bend Radius - During Installation (under Tension): 47 mm
  • Minimum Bend Radius - Installed: 31 mm



16mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP15A1001WVBK - Country ref. AABP15A1001WVBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 20.8 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 8.9 mm
  • Maximum installation tension: 1120 N
  • Minimum Bend Radius - During Installation (under Tension): 53 mm
  • Minimum Bend Radius - Installed: 36 mm



16mm2 PVC SDI Black Insulation White Sheath 500m

Nexans ref. AABP15A5001WVBK - Country ref. AABP15A5001WVBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 20.8 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 8.9 mm
  • Maximum installation tension: 1120 N
  • Minimum Bend Radius - During Installation (under Tension): 53 mm
  • Minimum Bend Radius - Installed: 36 mm



16mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP15A1001WVRD - Country ref. AABP15A1001WVRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 20.8 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 8.9 mm
  • Maximum installation tension: 1120 N
  • Minimum Bend Radius - During Installation (under Tension): 53 mm
  • Minimum Bend Radius - Installed: 36 mm



16mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP15A5001WVRD - Country ref. AABP15A5001WVRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 20.8 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 8.9 mm
  • Maximum installation tension: 1120 N
  • Minimum Bend Radius - During Installation (under Tension): 53 mm
  • Minimum Bend Radius - Installed: 36 mm



1mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP02A1001WTBK - Country ref. AABP02A1001WTBK

  • Colour: White / black
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid, Class 1
  • Approximate weight: 2.7 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 1 mm²
  • Nominal overall diameter: 4.0 mm
  • Maximum installation tension: 70 N
  • Minimum Bend Radius - During Installation (under Tension): 24 mm
  • Minimum Bend Radius - Installed: 16 mm



2.5mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP07A1001WTBK - Country ref. AABP07A1001WTBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 4.8 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 5.1 mm
  • Maximum installation tension: 175 N
  • Minimum Bend Radius - During Installation (under Tension): 31 mm
  • Minimum Bend Radius - Installed: 20 mm



2.5mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP07A1001WTRD - Country ref. AABP07A1001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 4.8 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 5.1 mm
  • Maximum installation tension: 175 N
  • Minimum Bend Radius - During Installation (under Tension): 31 mm
  • Minimum Bend Radius - Installed: 20 mm



2.5mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP07A5001WTRD - Country ref. AABP07A5001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 4.8 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 5.1 mm
  • Maximum installation tension: 175 N
  • Minimum Bend Radius - During Installation (under Tension): 31 mm
  • Minimum Bend Radius - Installed: 20 mm



2.5mm2 PVC SDI White Insulation White Sheath 100m

Nexans ref. AABP07A1001WTWT - Country ref. AABP07A1001WTWT

  • Colour: White
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 4.8 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 5.1 mm
  • Maximum installation tension: 175 N
  • Minimum Bend Radius - During Installation (under Tension): 31 mm
  • Minimum Bend Radius - Installed: 20 mm



4mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP09A1001WTBK - Country ref. AABP09A1001WTBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 7.1 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 6.0 mm
  • Maximum installation tension: 280 N
  • Minimum Bend Radius - During Installation (under Tension): 36 mm
  • Minimum Bend Radius - Installed: 24 mm



4mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP09A1001WTRD - Country ref. AABP09A1001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 7.1 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 6.0 mm
  • Maximum installation tension: 280 N
  • Minimum Bend Radius - During Installation (under Tension): 36 mm
  • Minimum Bend Radius - Installed: 24 mm



4mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP09A5001WTRD - Country ref. AABP09A5001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 7.1 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 6.0 mm
  • Maximum installation tension: 280 N
  • Minimum Bend Radius - During Installation (under Tension): 36 mm
  • Minimum Bend Radius - Installed: 24 mm



6mm2 PVC SDI Black Insulation White Sheath 100m

Nexans ref. AABP11A1001WTBK - Country ref. AABP11A1001WTBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 9.4 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 6.6 mm
  • Maximum installation tension: 420 N
  • Minimum Bend Radius - During Installation (under Tension): 40 mm
  • Minimum Bend Radius - Installed: 26 mm



6mm2 PVC SDI Black Insulation White Sheath 500m

Nexans ref. AABP11A5001WTBK - Country ref. AABP11A5001WTBK

  • Colour: White / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 9.4 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 6.6 mm
  • Maximum installation tension: 420 N
  • Minimum Bend Radius - During Installation (under Tension): 40 mm
  • Minimum Bend Radius - Installed: 26 mm



6mm2 PVC SDI Red Insulation White Sheath 100m

Nexans ref. AABP11A1001WTRD - Country ref. AABP11A1001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 9.4 kg/100m
  • Cable length: 100 m
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 6.6 mm
  • Maximum installation tension: 420 N
  • Minimum Bend Radius - During Installation (under Tension): 40 mm
  • Minimum Bend Radius - Installed: 26 mm



6mm2 PVC SDI Red Insulation White Sheath 500m

Nexans ref. AABP11A5001WTRD - Country ref. AABP11A5001WTRD

  • Colour: White / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Approximate weight: 9.4 kg/100m
  • Cable length: 500 m
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 6.6 mm
  • Maximum installation tension: 420 N
  • Minimum Bend Radius - During Installation (under Tension): 40 mm
  • Minimum Bend Radius - Installed: 26 mm



Description

Description

Standards

  • Product
    AS/NZS 1125; AS/NZS 5000.1; AS/NZS 5000.2

Single Core PVC SDI Cable

  • Single core, V-90 insulated,
  • PVC sheathed to AS/NZS 5000,
  • Copper conductors, 90°C.
  • 1.0 to 16mm2 450/750V to AS/NZS 5000.2
  • Larger sizes; 25 to 630mm2 0.6/1kV to AS/NZS 5000.1 are available on request

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Resources

Resources

PVC SDI - Current carrying capacity table single phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu Cu
1.0 16 16 13 13 11 6 24 18 21
1.5 21 21 16 18 14 8 31 23 26
2.5 30 29 23 24 20 12 43 32 36
4.0 40 39 31 32 25 16 56 41 47
6.0 51 49 40 41 33 20 71 52 58
10.0 69 67 54 54 44 27 94 69 77
16.0 92 89 72 70 56 36 122 89 99
25.0 124 119 97 94 75 48 158 116 129
35.0 153 145 119 112 90 59 190 139 155
50.0 187 177 146 138 110 0 225 168 186
70.0 238 223 184 170 136 0 277 206 228
95.0 295 276 230 212 169 0 332 252 278
120.0 344 321 267 242 193 0 378 287 316
150.0 395 367 308 282 225 0 424 329 354
185.0 459 424 358 320 256 0 480 373 408
240.0 549 505 428 381 305 0 556 438 472
300.0 636 582 495 0 0 0 628 496 546
400.0 744 676 577 0 0 0 713 575 621
500.0 867 780 668 0 0 0 805 649 721
630.0 1014 897 770 0 0 0 904 750 816
Unenclosed spaced
Unenclosed spaced from surface
Unenclosed touching
Enclosed conduit in air
Thermal insulation, partially surrounded by thermal insulation
Thermal Insulation, completely surrounded by thermal insulation
Buried direct
Underground ducts A - Undergound Wiring Enclosure
Underground ducts B - Individual Wiring Enclosure

PVC SDI - Current carrying capacity table three phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu Cu
1.0 16 14 13 12 10 6 21 16 19
1.5 20 17 16 15 12 8 27 20 24
2.5 29 25 23 21 17 12 37 27 33
4.0 38 33 31 28 23 16 49 36 43
6.0 49 42 40 35 28 20 61 45 53
10.0 67 58 54 47 37 27 81 59 70
16.0 89 77 72 62 50 36 104 78 90
25.0 120 103 97 81 64 48 134 100 117
35.0 148 127 119 100 80 59 160 122 140
50.0 181 156 146 119 95 0 190 144 168
70.0 230 197 184 152 122 0 233 180 205
95.0 287 246 230 183 147 0 279 217 250
120.0 335 287 267 217 173 0 317 252 283
150.0 385 330 308 244 195 0 356 283 317
185.0 447 383 357 284 227 0 402 325 365
240.0 535 457 426 331 265 0 465 377 422
300.0 620 529 492 388 311 0 524 434 488
400.0 726 615 573 442 353 0 593 492 553
500.0 846 710 661 523 418 0 668 571 641
630.0 990 817 760 588 471 0 748 639 723
Unenclosed spaced
Unenclosed spaced from surface
Unenclosed touching
Enclosed conduit in air
Thermal insulation, partially surrounded by thermal insulation
Thermal Insulation, completely surrounded by thermal insulation
Buried direct
Underground ducts A - Undergound Wiring Enclosure
Underground ducts B - Individual Wiring Enclosure
Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
