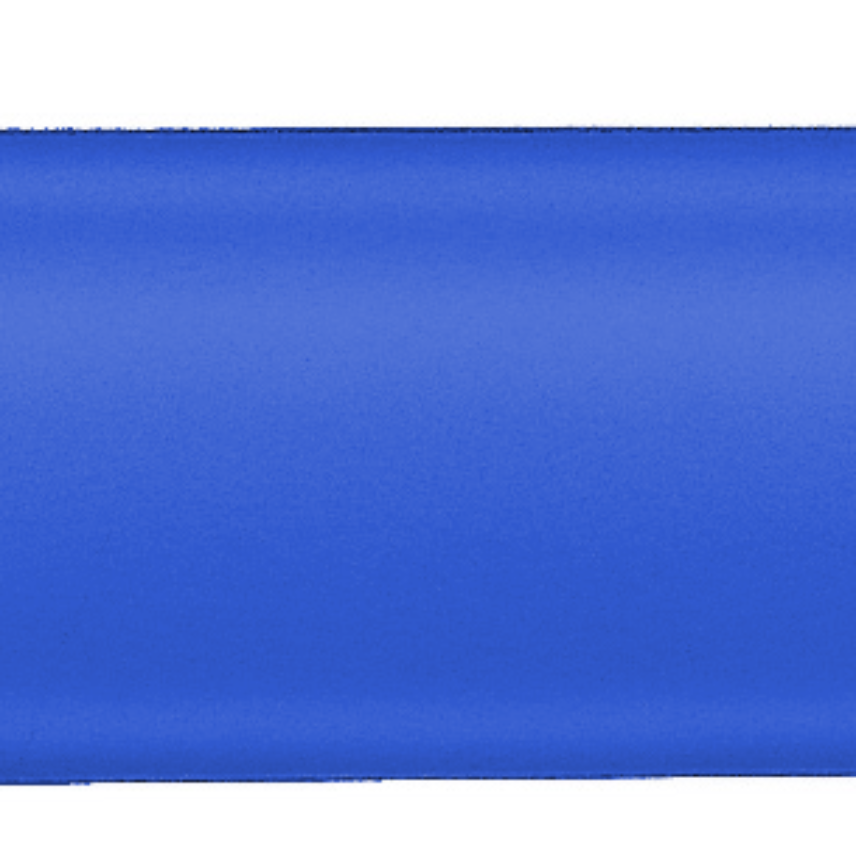

1.5mm2 PVC SDI Blue Insulation Blue Sheath 100m
1.5mm2 PVC SDI Blue Insulation Blue Sheath 100m
1.5mm2 PVC SDI Blue Insulation Blue Sheath 100m
Read more- Nexans ref. : AABP05A1001BEBE
- EAN : 9322576239860
Description
Description
Standards
-
NationalAS/NZS 1125; AS/NZS 5000.1; AS/NZS 5000.2
Single Core PVC SDI Cable
- Single core, V-90 insulated,
- PVC sheathed to AS/NZS 5000,
- Copper conductors, 90°C.
- 1.0 to 16mm2 450/750V to AS/NZS 5000.2
- Larger sizes; 25 to 630mm2 0.6/1kV to AS/NZS 5000.1 are available on request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Blue
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Stranded copper
Dimensional characteristics
Dimensional characteristics
Approximate weight
3.2 kg/100m
Cable length
100 m
Conductor cross-section
1.5 mm²
Nominal insulation thickness
0.6 mm
Nominal outer sheath thickness
0.8 mm
Nominal overall diameter
4.4 mm
Number of cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
16.5 Ohm/km
Inductive reactance at 50Hz - flat touching
0.172 Ohm/km
Inductive reactance at 50Hz - trefoil
0.157 Ohm/km
Insulation resistance at 20°C
10 MOhm.km
Max. DC resistance of the conductor at 20°C
13.6 Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Maximum installation tension
105 N
Usage characteristics
Usage characteristics
Minimum Bend Radius - During Installation (under Tension)
26 mm
Minimum Bend Radius - Installed
18 mm
Resources
Resources
PVC SDI - Current carrying capacity table single phase (in Amps)
Copper Conductor Insulation PVC Maximum Conductor Temperature 75⁰CConductor cross-section | |||||||||
---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.5 | 21 | 21 | 16 | 18 | 14 | 8 | 31 | 23 | 26 |
Unenclosed spaced |
Unenclosed spaced from surface |
Unenclosed touching |
Enclosed conduit in air |
Thermal insulation, partially surrounded by thermal insulation |
Thermal Insulation, completely surrounded by thermal insulation |
Buried direct |
Underground ducts A - Undergound Wiring Enclosure |
Underground ducts B - Individual Wiring Enclosure |
PVC SDI - Current carrying capacity table three phase (in Amps)
Copper Conductor Insulation PVC Maximum Conductor Temperature 75⁰CConductor cross-section | |||||||||
---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.5 | 20 | 17 | 16 | 15 | 12 | 8 | 27 | 20 | 24 |
Unenclosed spaced |
Unenclosed spaced from surface |
Unenclosed touching |
Enclosed conduit in air |
Thermal insulation, partially surrounded by thermal insulation |
Thermal Insulation, completely surrounded by thermal insulation |
Buried direct |
Underground ducts A - Undergound Wiring Enclosure |
Underground ducts B - Individual Wiring Enclosure |
