Lighting Extender Leads

Products

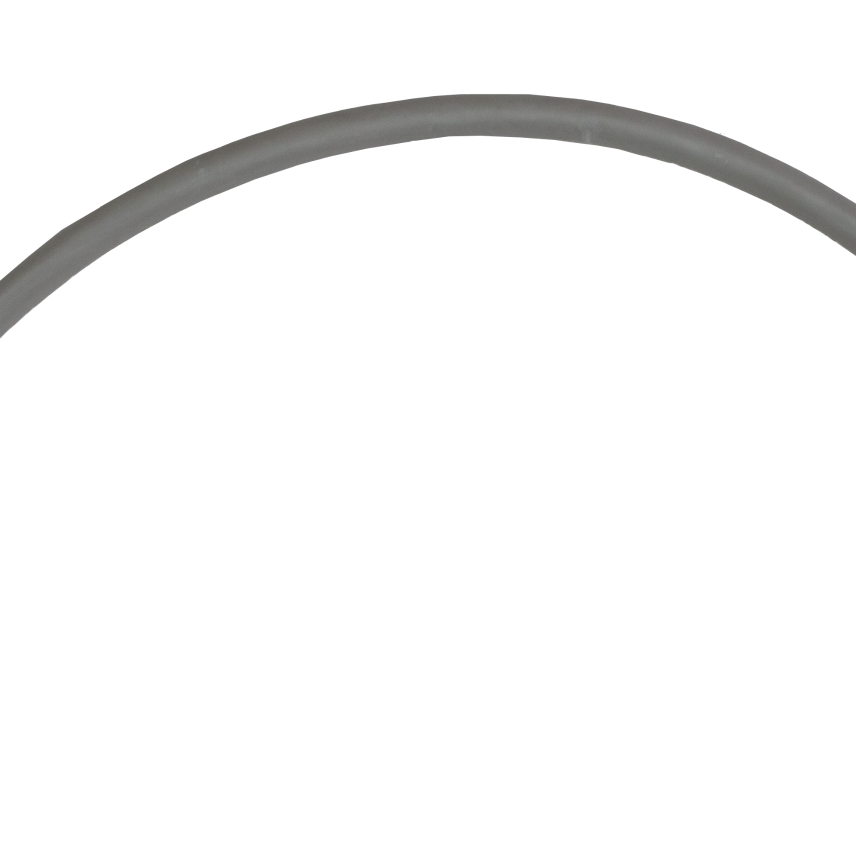

10m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.100

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 1.21 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6

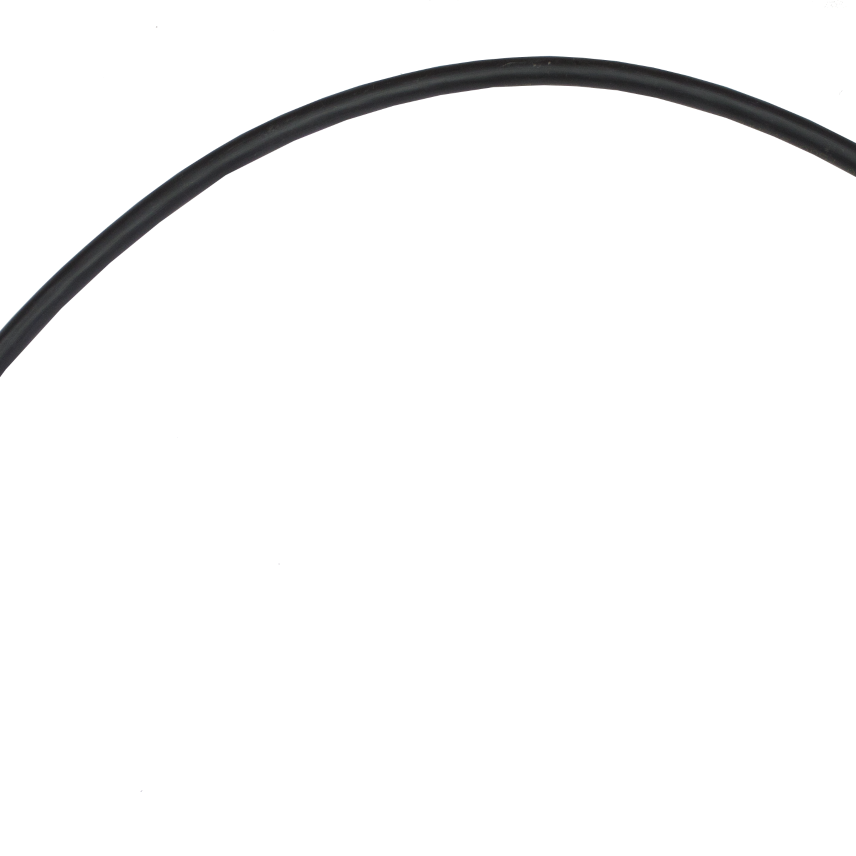

10m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.100

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.653 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



10m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.100

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 2.44 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



11m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.110

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 1.33 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



11m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.110

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.815 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



11m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.110

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 2.68 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



12m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.120

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 1.45 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



12m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.120

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.977 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



12m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.120

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 2.91 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



1m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.010

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.15 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



1m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.010

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.195 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



1m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.010

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.31 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



2m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.020

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.27 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



2m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.020

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.357 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



2m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.020

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.54 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



3m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.030

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.39 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



3m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.030

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.519 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



3m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.030

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.78 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



4m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.040

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.51 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



4m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.040

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.681 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



4m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.040

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.02 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



500mm Ext Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.005

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.09 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



500mm Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.005

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.114 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



500mm Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.005

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.19 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



5m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.050

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.62 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



5m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.050

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 0.843 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



5m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.050

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.26 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



6m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.060

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.74 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



6m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.060

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.005 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



6m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.060

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.49 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



7m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.070

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.86 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



7m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.070

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.167 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



7m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.070

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.73 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



8m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.080

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 0.98 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



8m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.080

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.329 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



8m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.080

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.97 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



9m Extender Cable - (2C+E x 1.5mm², 3P)

Nexans ref. A1.3.3A6.3A6.2.090

  • Packaging: Unit
  • Sheath colour: White
  • Approximate weight: 1.1 kg/m
  • Conductor cross-section: 1.5 mm²
  • Gland Size (A2 or A2F): 20S
  • Nominal overall diameter: 8.9 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



9m Extender Cable - (2C+E x 2.5mm², 3P)

Nexans ref. A1.1.3B6.3B6.3.090

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 1.491 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 20
  • Nominal overall diameter: 10.1 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



9m Extender Cable - (4C+E x 2.5mm², 5P)

Nexans ref. A1.1.5BT.5BT.3.090

  • Packaging: Unit
  • Sheath colour: Black
  • Approximate weight: 2.2 kg/m
  • Conductor cross-section: 2.5 mm²
  • Gland Size (A2 or A2F): 25
  • Nominal overall diameter: 12.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



Description

Description

Standards

  • National
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the Secondary Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2

Constructions

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • No# Conductors: 5wire. Conductor Size: 1.5mm2 (10A), 2.5mm (20A)

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Board Connections
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
With smaller neutral conductor
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C

Resources

Resources

Documentation

docx — 3.5 MB
docx — 3.6 MB
docx — 3.7 MB

Related products

Power Extender Leads
Multi Circuit Lighting Panel Mount for Distribution Board
Multi Circuit Power Panel Mounts for Distribution Board
Single Circuit Lighting Panel Mount for Distribution Board

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
