Single Circuit Lighting Panel Mount for Distribution Board

Products

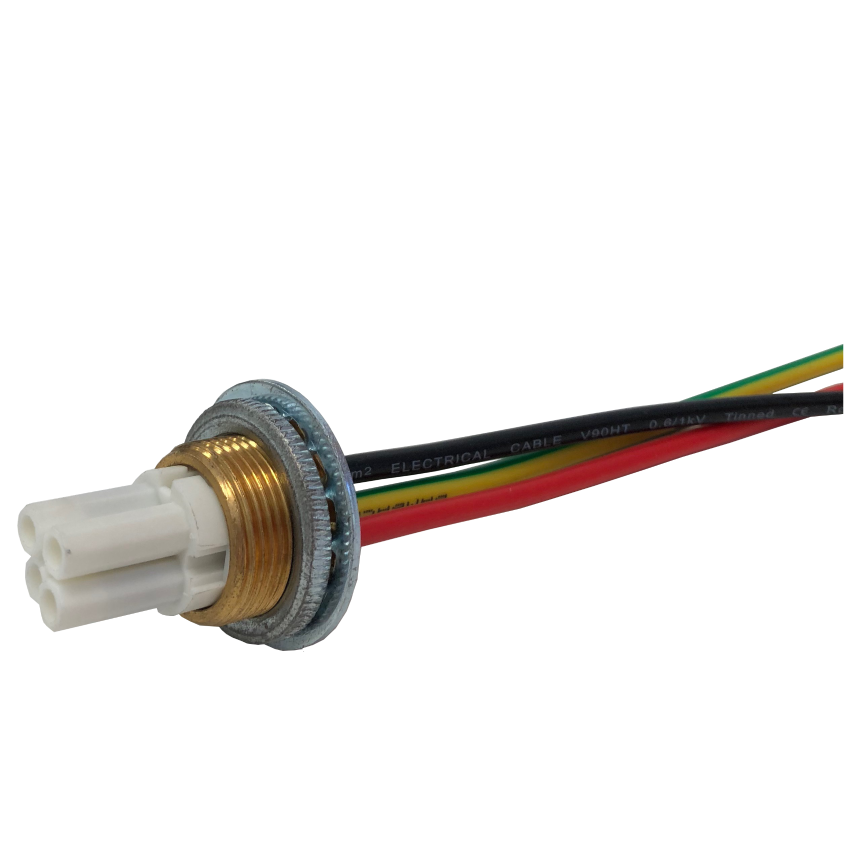

Single Circuit Panel Mount - 2C+E 1.5mm² 1m

Nexans ref. A1.4.000.3A6.2.010

  • Packaging: Unit
  • Approximate weight: 0.08 kg/m
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 4.61



Single Circuit Panel Mount - 2C+E 2.5mm² 1m

Nexans ref. A1.4.000.3B6.3.010

  • Packaging: Unit
  • Approximate weight: 0.113 kg/m
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 4.61

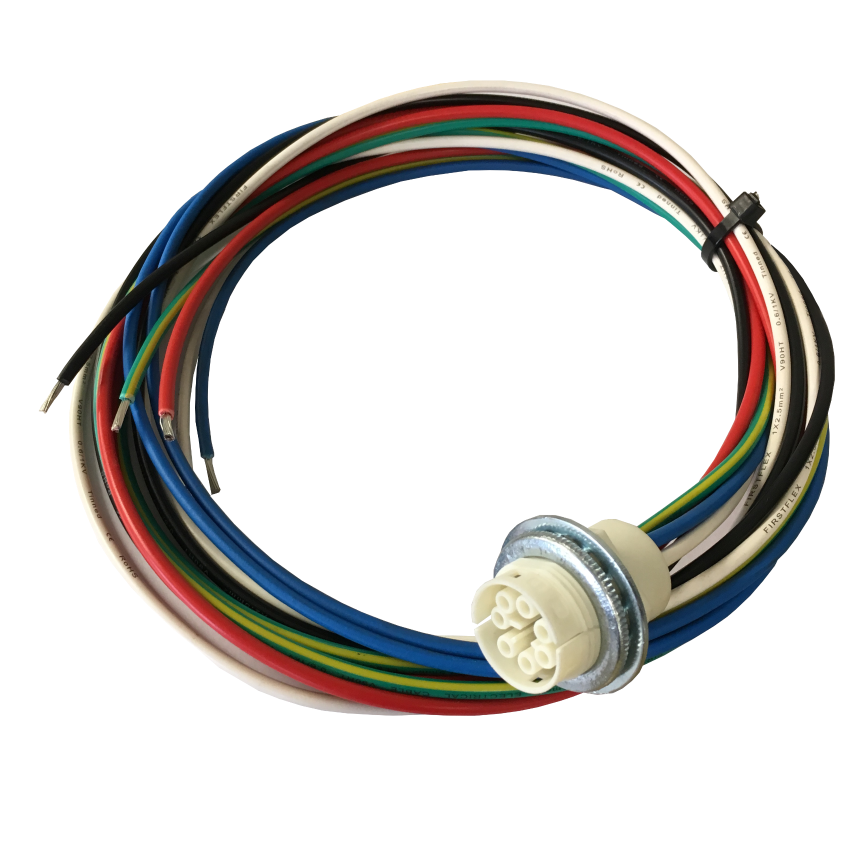

Single Circuit Panel Mount - 4C+E 2.5mm² 1m

Nexans ref. A1.4.000.5BT.3.010

  • Packaging: Unit
  • Approximate weight: 0.2 kg/m
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



Description

Description

Standards

  • National
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the PanelMount connections offer a pre-wired, pre-terminated and pre-tested Distribution Board system, ready to plug on site. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Single core flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.1

Constructions

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • No# Conductors: 5wire. Conductor Size: 1.5mm2 (10A), 2.5mm (20A)

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Board Connections
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings
  • Modular Buildings



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
With smaller neutral conductor
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
