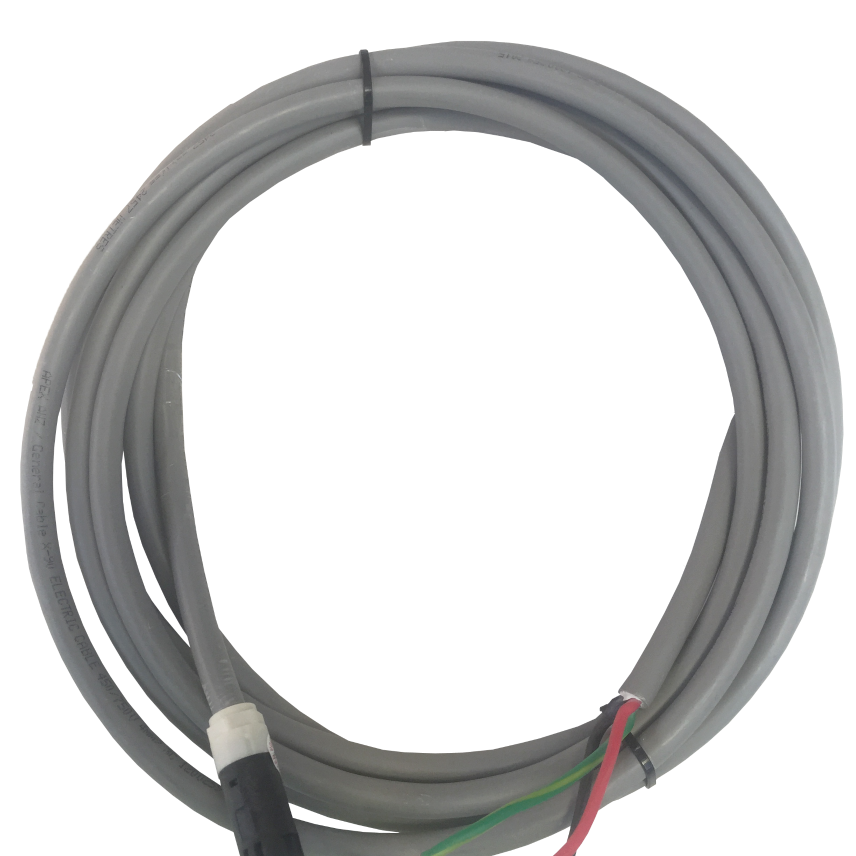

Power Extender Leads

Products

10m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.100

  • Packaging: Unit
  • Approximate weight: 2.23 kg/m



11m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.110

  • Packaging: Unit
  • Approximate weight: 2.45 kg/m



12m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.120

  • Packaging: Unit
  • Approximate weight: 2.67 kg/m



1m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.010

  • Packaging: Unit
  • Approximate weight: 0.25 kg/m



2m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.020

  • Packaging: Unit
  • Approximate weight: 0.47 kg/m



3m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.030

  • Packaging: Unit
  • Approximate weight: 0.69 kg/m



4m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.040

  • Packaging: Unit
  • Approximate weight: 0.91 kg/m



500mm Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.005

  • Packaging: Unit
  • Approximate weight: 0.14 kg/m



5m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.050

  • Packaging: Unit
  • Approximate weight: 1.13 kg/m



6m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.060

  • Packaging: Unit
  • Approximate weight: 1.35 kg/m



7m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.070

  • Packaging: Unit
  • Approximate weight: 1.57 kg/m



8m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.080

  • Packaging: Unit
  • Approximate weight: 1.79 kg/m



9m Extender Cable - (2C+E x 4.0mm², 3P)

Nexans ref. A1.2.3C6.3C6.4.090

  • Packaging: Unit
  • Approximate weight: 2.01 kg/m



Description

Description

Standards

  • National
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the Secondary Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2

Constructions

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • Rating: 20amp. No# Conductors: 3wire. Conductor Size: 4.0mm

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Board Connections
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Sheath colour
Grey
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
With smaller neutral conductor
No

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
4 mm²
Gland Size (A2 or A2F)
20
Nominal overall diameter
11.5 mm
Number of cores
3

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C (Ohm/km)
4.61
Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
