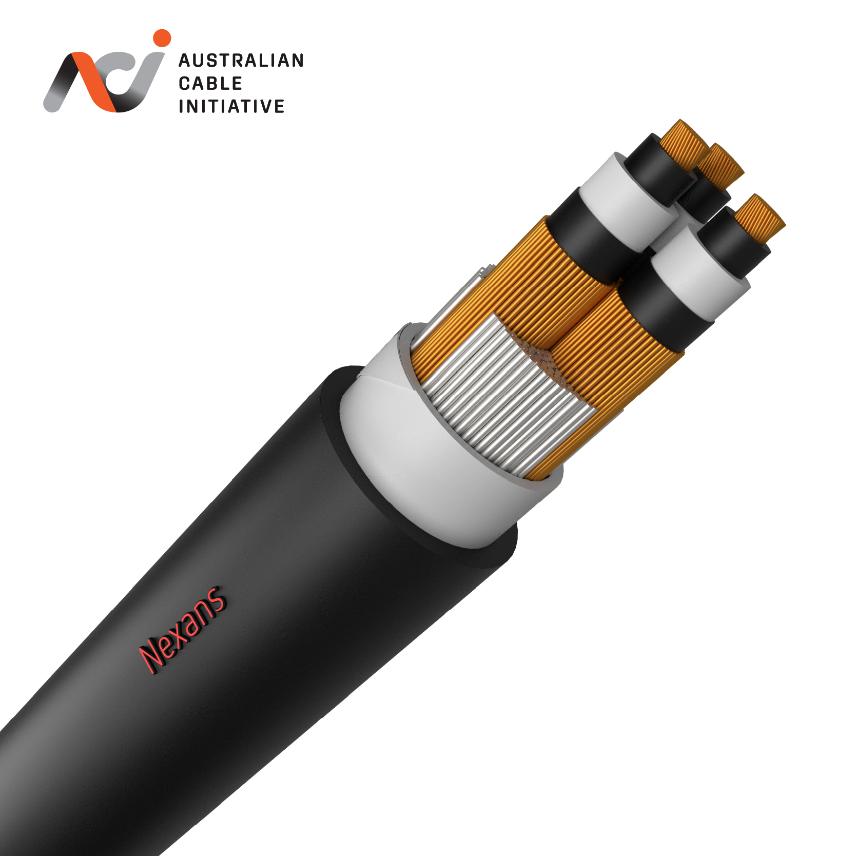

3.8/6.6kV Three Core
3.8/6.6kV Three Core
3.8.6.6kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level
Read more3.8/6.6kV Three Core
Nexans ref. XHHA19AA003CXAA - Country ref. XHHA19AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 43.1 mm
3.8/6.6kV Three Core
Nexans ref. XHHA20AA003CXAA - Country ref. XHHA20AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 46.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHA22AA003CXAA - Country ref. XHHA22AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 50.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHA23AA003CXAA - Country ref. XHHA23AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.1 mm
3.8/6.6kV Three Core
Nexans ref. XHHA23AA003OMAA - Country ref. XHHA23AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.1 mm
3.8/6.6kV Three Core
Nexans ref. XHHA25AA003JBAA - Country ref. XHHA25AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 60.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHA26AA003OMAA - Country ref. XHHA26AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 66.6 mm
3.8/6.6kV Three Core
Nexans ref. XHHP17AA003SZAA - Country ref. XHHP17AA003SZAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 37.9 mm
3.8/6.6kV Three Core
Nexans ref. XHHP17AA003CXAA - Country ref. XHHP17AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 37.9 mm
3.8/6.6kV Three Core
Nexans ref. XHHP18AA003JBAA - Country ref. XHHP18AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 40.3 mm
3.8/6.6kV Three Core
Nexans ref. XHHP18AA003CXAA - Country ref. XHHP18AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 40.3 mm
3.8/6.6kV Three Core
Nexans ref. XHHP19AA003CXAA - Country ref. XHHP19AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 43.0 mm
3.8/6.6kV Three Core
Nexans ref. XHHP19AA003JBAA - Country ref. XHHP19AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 43.0 mm
3.8/6.6kV Three Core
Nexans ref. XHHP19AA003SZAA - Country ref. XHHP19AA003SZAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 43.0 mm
3.8/6.6kV Three Core
Nexans ref. XHHP19AA003OMAA - Country ref. XHHP19AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 43.0 mm
3.8/6.6kV Three Core
Nexans ref. XHHP20AA003CXAA - Country ref. XHHP20AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 46.7 mm
3.8/6.6kV Three Core
Nexans ref. XHHP20AA003OMAA - Country ref. XHHP20AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 46.7 mm
3.8/6.6kV Three Core
Nexans ref. XHHP20AA003JBAA - Country ref. XHHP20AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 46.7 mm
3.8/6.6kV Three Core
Nexans ref. XHHP20AA003SZAA - Country ref. XHHP20AA003SZAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 46.7 mm
3.8/6.6kV Three Core
Nexans ref. XHHP22AA003JBAA - Country ref. XHHP22AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 51.1 mm
3.8/6.6kV Three Core
Nexans ref. XHHP22AA003CXAA - Country ref. XHHP22AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 51.1 mm
3.8/6.6kV Three Core
Nexans ref. XHHP23AA003OMAA - Country ref. XHHP23AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP23AA003CXAA - Country ref. XHHP23AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP23AA003SZAA - Country ref. XHHP23AA003SZAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP23AA003JBAA - Country ref. XHHP23AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 54.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP24AA003CXAA - Country ref. XHHP24AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 58.2 mm
3.8/6.6kV Three Core
Nexans ref. XHHP25AA003CXAA - Country ref. XHHP25AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 61.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP25AA003JBAA - Country ref. XHHP25AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 61.8 mm
3.8/6.6kV Three Core
Nexans ref. XHHP26AA003OMAA - Country ref. XHHP26AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 67.9 mm
3.8/6.6kV Three Core
Nexans ref. XHHP26AA003CXAA - Country ref. XHHP26AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 67.9 mm
3.8/6.6kV Three Core
Nexans ref. XHHP26AA003JBAA - Country ref. XHHP26AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 67.9 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2

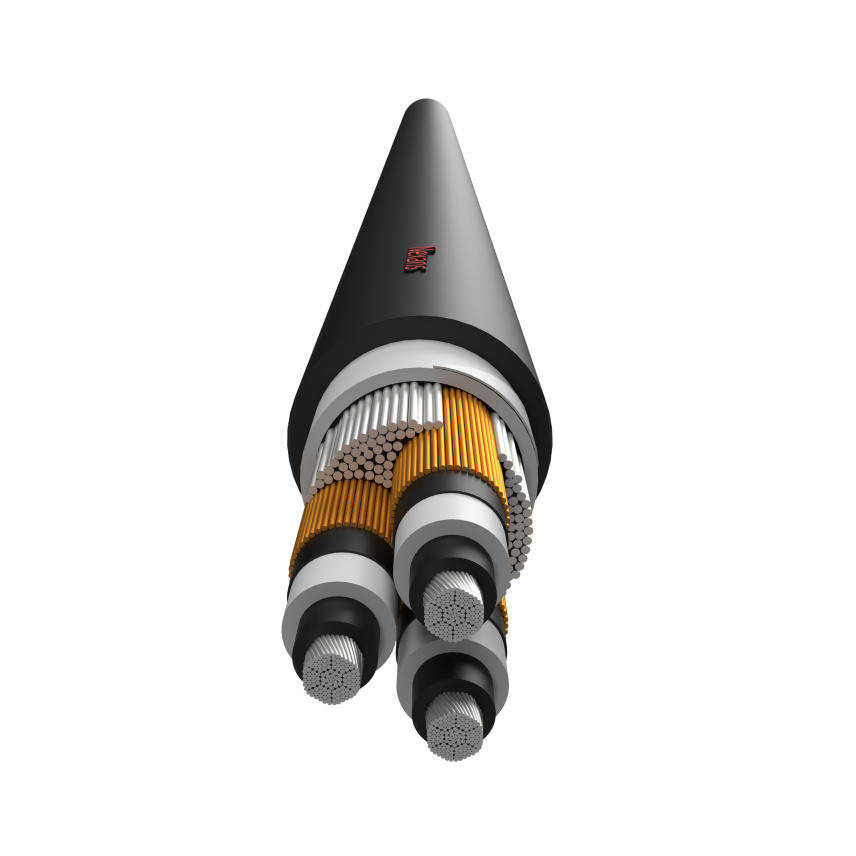

Construction
- Stranded compacted conductor
- Semi-conductive insulation screen
- Copper wire screen
- XLPE insulation
- Semi-conductive conductor screen
- PVC sheath
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
Current carrying capacity table (in Amps) - 3.8/6.6kV Three Core
Current carrying capacity table (in Amps) - 3.8/6.6kV Three Core
| Conductor cross-section |
|
|
|
|
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 16.0 | 102.0 | 0.0 | 108.0 | 0.0 | 75.0 | 0.0 | 113.0 | 0.0 | 86.0 | 0.0 |
| 25.0 | 132.0 | 0.0 | 141.0 | 0.0 | 96.0 | 0.0 | 145.0 | 0.0 | 111.0 | 0.0 |
| 35.0 | 160.0 | 124.0 | 171.0 | 133.0 | 118.0 | 92.0 | 173.0 | 134.0 | 134.0 | 104.0 |
| 50.0 | 191.0 | 148.0 | 205.0 | 159.0 | 140.0 | 109.0 | 204.0 | 158.0 | 159.0 | 123.0 |
| 70.0 | 238.0 | 185.0 | 256.0 | 199.0 | 173.0 | 134.0 | 249.0 | 193.0 | 195.0 | 151.0 |
| 95.0 | 291.0 | 225.0 | 313.0 | 242.0 | 212.0 | 164.0 | 298.0 | 231.0 | 237.0 | 183.0 |
| 120.0 | 336.0 | 260.0 | 363.0 | 280.0 | 243.0 | 188.0 | 339.0 | 263.0 | 270.0 | 209.0 |
| 150.0 | 381.0 | 295.0 | 411.0 | 318.0 | 281.0 | 217.0 | 379.0 | 294.0 | 307.0 | 238.0 |
| 185.0 | 436.0 | 338.0 | 472.0 | 365.0 | 319.0 | 247.0 | 429.0 | 333.0 | 348.0 | 270.0 |
| 240.0 | 515.0 | 400.0 | 559.0 | 434.0 | 373.0 | 290.0 | 496.0 | 387.0 | 404.0 | 315.0 |
| 300.0 | 591.0 | 459.0 | 642.0 | 499.0 | 439.0 | 342.0 | 559.0 | 436.0 | 468.0 | 365.0 |
| 400.0 | 683.0 | 537.0 | 744.0 | 584.0 | 503.0 | 396.0 | 634.0 | 500.0 | 532.0 | 420.0 |
|
In air touching (3 core) |
|
In air spaced (3 core) |
|
In air enclosed (3 core) |
|
Direct Buried (3 core) |
|
Underground ducts (3 core) |
