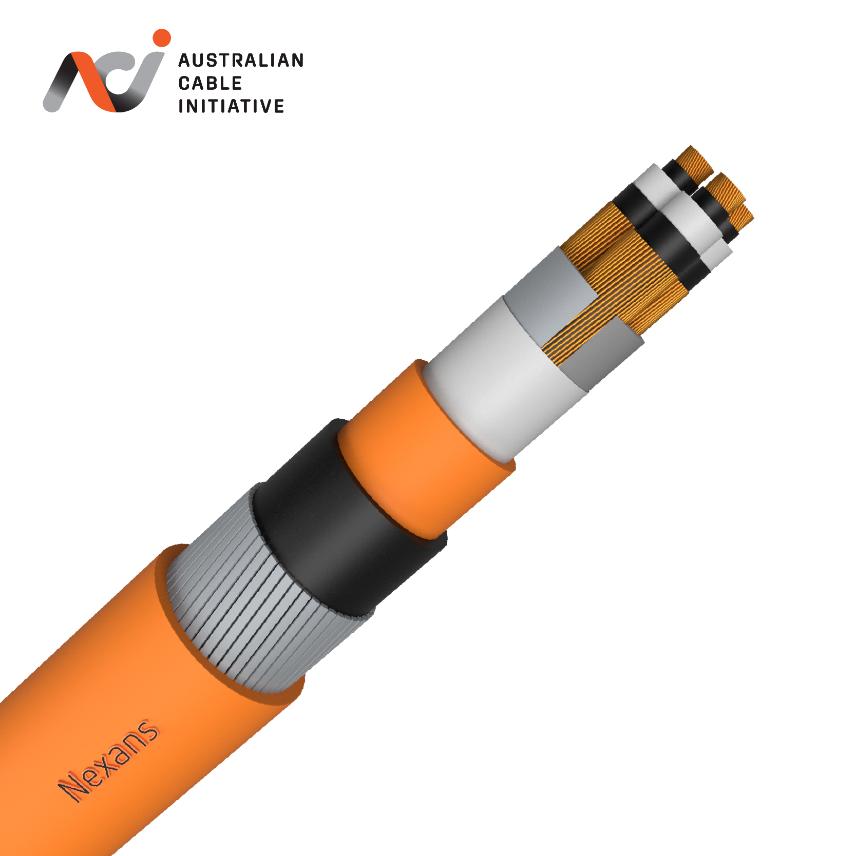

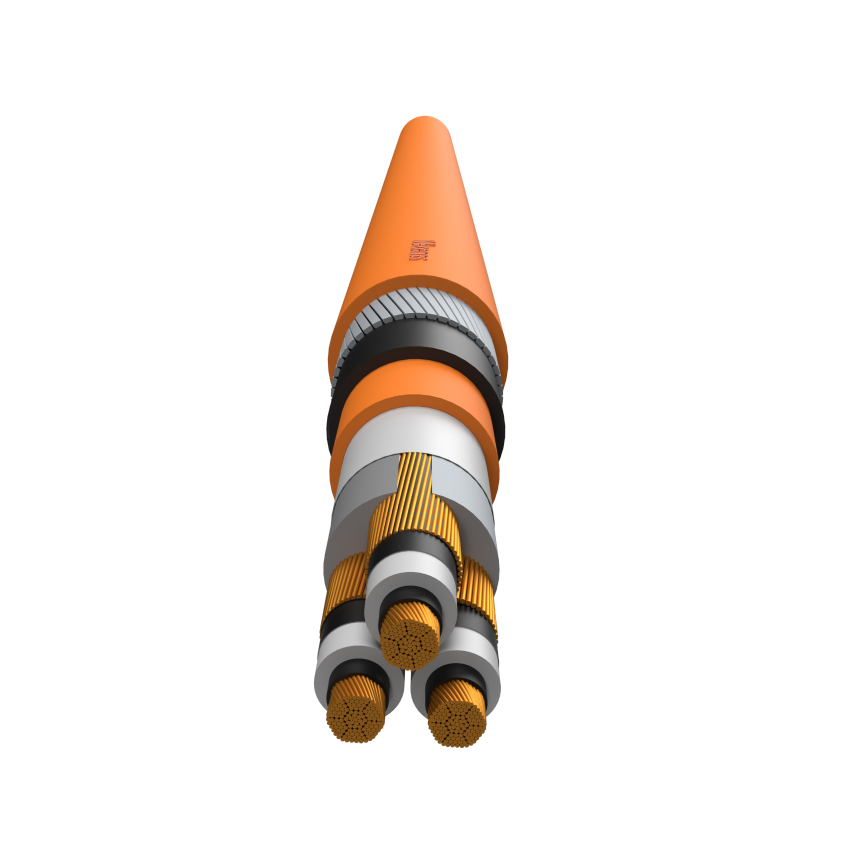

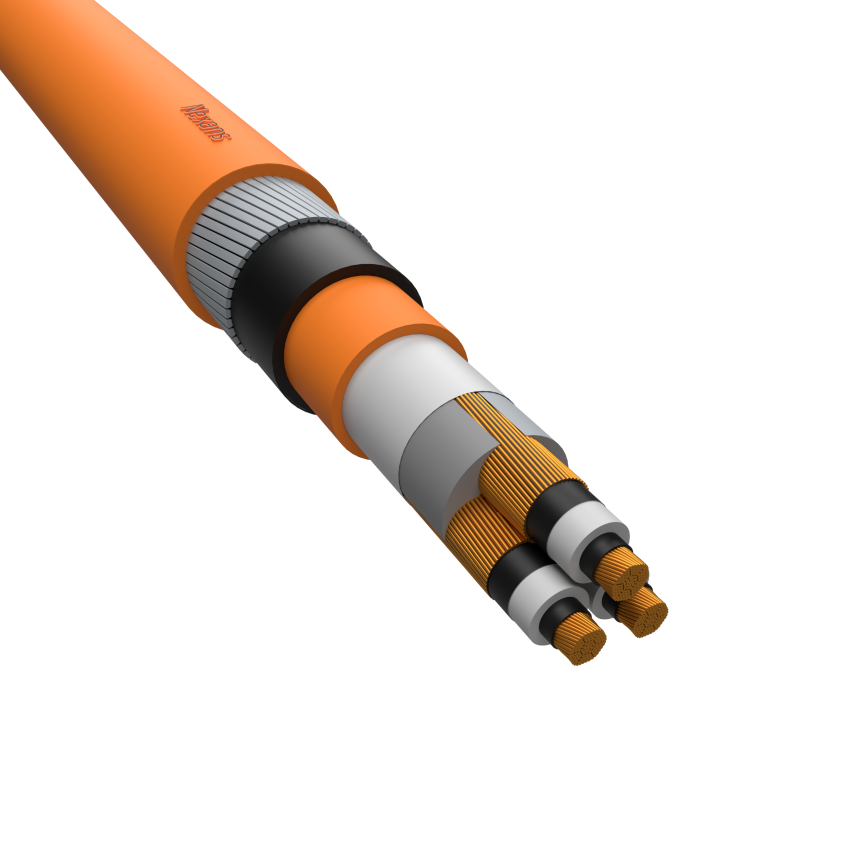

3.8/6.6kV Three Core SWA
3.8/6.6kV Three Core SWA
3.8.6.6kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level
Read more3.8/6.6kV Three Core SWA
Nexans ref. XHJA20AA003CXAA - Country ref. XHJA20AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 55.3 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP15AA003JBAA - Country ref. XHJP15AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 42.6 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP18AA003CXAA - Country ref. XHJP18AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 48.7 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP18AA003JBAA - Country ref. XHJP18AA003JBAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 48.7 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP19AA003CXAA - Country ref. XHJP19AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 51.4 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP19AA003OMAA - Country ref. XHJP19AA003OMAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 51.4 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP20AA003CXAA - Country ref. XHJP20AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 55.2 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP22AA003CXAA - Country ref. XHJP22AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 59.7 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP23AA003CXAA - Country ref. XHJP23AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 63.3 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP26AA003CXAA - Country ref. XHJP26AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 78.6 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP27AA003CXAA - Country ref. XHJP27AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 85.2 mm
3.8/6.6kV Three Core SWA
Nexans ref. XHJP28AA003CXAA - Country ref. XHJP28AA003CXAA
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 92.9 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2
Construction
- Stranded compacted conductor
- Triple extruded conductor screen
- XLPE Insulated and insulation screen
- Copper wire screened
- Steel wire armoured
- PVC sheathed.
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
Current carrying capacity table (in Amps) - 3.8/6.6kV Three Core SWA
Current carrying capacity table (in Amps) - 3.8/6.6kV Three Core SWA
| Conductor cross-section |
|
|
|
|
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 16.0 | 103.0 | 0.0 | 110.0 | 0.0 | 78.0 | 0.0 | 112.0 | 0.0 | 89.0 | 0.0 |
| 25.0 | 134.0 | 0.0 | 142.0 | 0.0 | 100.0 | 0.0 | 143.0 | 0.0 | 114.0 | 0.0 |
| 35.0 | 162.0 | 126.0 | 173.0 | 134.0 | 122.0 | 95.0 | 171.0 | 133.0 | 137.0 | 107.0 |
| 50.0 | 193.0 | 150.0 | 206.0 | 160.0 | 145.0 | 113.0 | 201.0 | 156.0 | 162.0 | 126.0 |
| 70.0 | 238.0 | 186.0 | 255.0 | 199.0 | 181.0 | 141.0 | 245.0 | 191.0 | 200.0 | 156.0 |
| 95.0 | 289.0 | 225.0 | 310.0 | 241.0 | 218.0 | 170.0 | 292.0 | 227.0 | 239.0 | 186.0 |
| 120.0 | 332.0 | 258.0 | 357.0 | 277.0 | 248.0 | 193.0 | 330.0 | 258.0 | 271.0 | 211.0 |
| 150.0 | 373.0 | 291.0 | 401.0 | 313.0 | 277.0 | 217.0 | 367.0 | 287.0 | 301.0 | 236.0 |
| 185.0 | 423.0 | 331.0 | 456.0 | 357.0 | 213.0 | 245.0 | 411.0 | 323.0 | 338.0 | 266.0 |
| 240.0 | 492.0 | 389.0 | 532.0 | 420.0 | 371.0 | 294.0 | 469.0 | 372.0 | 395.0 | 314.0 |
| 300.0 | 555.0 | 441.0 | 600.0 | 477.0 | 415.0 | 331.0 | 521.0 | 416.0 | 440.0 | 351.0 |
| 400.0 | 628.0 | 508.0 | 682.0 | 550.0 | 466.0 | 377.0 | 579.0 | 470.0 | 489.0 | 397.0 |
|
In air touching (3 core) |
|
In air spaced (3 core) |
|
In air enclosed (3 core) |
|
Underground Direct Buried (3 core) |
|
Underground ducts (3 core) |
