19/33kV Three Core SWA

Products

19/33kV Three Core SWA

Nexans ref. XNJA22AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 87.9 mm



19/33kV Three Core SWA

Nexans ref. XNJA25AA003CXAA

  • Conductor material: Aluminum
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 98.8 mm



19/33kV Three Core SWA

Nexans ref. XNJP19AA003JBAA

  • Conductor material: Copper
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 80.1 mm



19/33kV Three Core SWA

Nexans ref. XNJP19AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 80.1 mm



19/33kV Three Core SWA

Nexans ref. XNJP20AA003JBAA

  • Conductor material: Copper
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 83.9 mm



19/33kV Three Core SWA

Nexans ref. XNJP20AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 83.9 mm



19/33kV Three Core SWA

Nexans ref. XNJP22AA003CXAA

  • Conductor material: Copper
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 88.2 mm



19/33kV Three Core SWA

Nexans ref. XNJP22AA003JBAA

  • Conductor material: Copper
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 88.2 mm



19/33kV Three Core SWA

Nexans ref. XNJP23AA003JBAA

  • Conductor material: Copper
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 92.1 mm



19/33kV Three Core SWA

Nexans ref. XNJP24AA003JBAA

  • Conductor material: Copper
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 96.0 mm



Description

Description

Standards

  • International
    IEC 60228; IEC 60502-2
  • National
    AS/NZS 1125; AS/NZS 1429.1

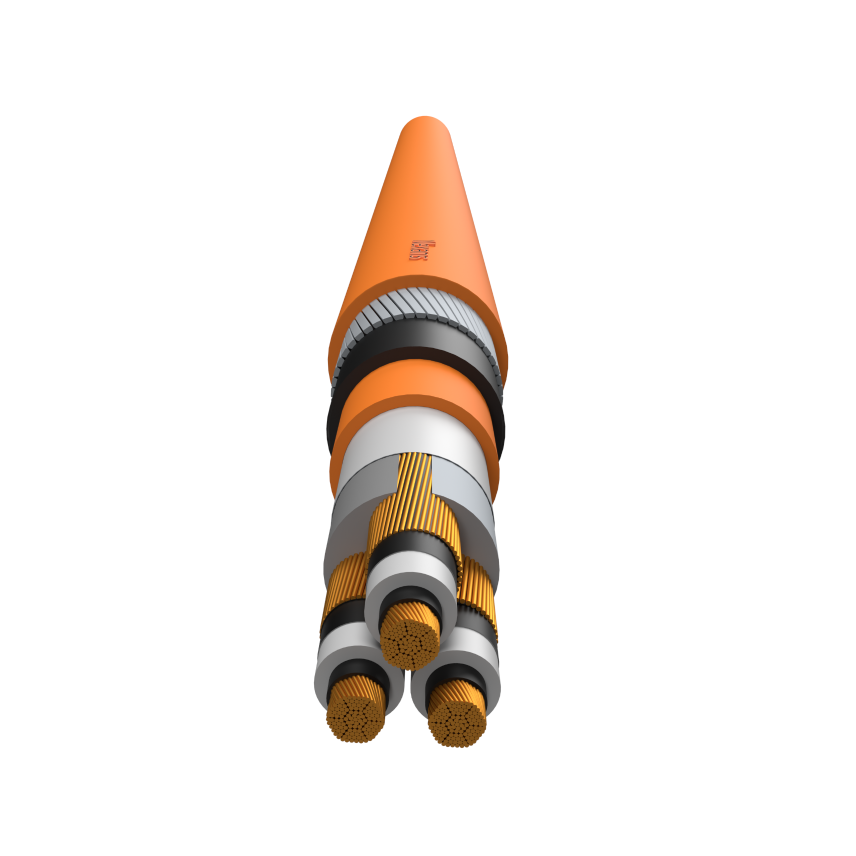

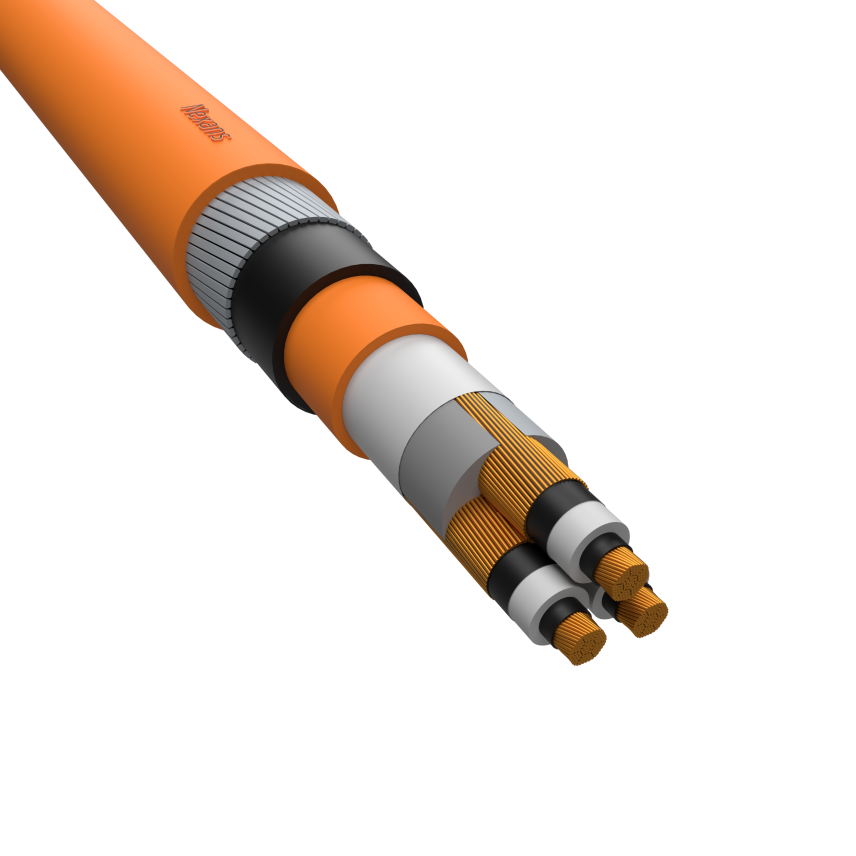

Construction

  • Stranded compacted conductor
  • Triple extruded conductor screen
  • Insulation and insulation screen
  • Copper wire screened
  • Steel wire armoured
  • PVC sheathed

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of conductor
Stranded compacted

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Resources

Resources

Current carrying capacity table (in Amps) - 19/33kV Three Core SWA

Current carrying capacity table (in Amps) - 19/33kV Three Core SWA

Conductor cross-section
mm² Cu Al Cu Al Cu Al Cu Al Cu Al
50.0 202.0 157.0 215.0 167.0 161.0 125.0 201.0 157.0 173.0 135.0
70.0 249.0 194.0 265.0 207.0 196.0 153.0 245.0 191.0 210.0 164.0
95.0 300.0 234.0 320.0 250.0 234.0 183.0 291.0 228.0 250.0 195.0
120.0 342.0 267.0 366.0 285.0 265.0 207.0 329.0 257.0 282.0 221.0
150.0 383.0 300.0 411.0 321.0 295.0 232.0 366.0 287.0 313.0 246.0
185.0 433.0 340.0 465.0 365.0 332.0 261.0 410.0 323.0 350.0 276.0
240.0 502.0 396.0 540.0 426.0 395.0 313.0 468.0 371.0 412.0 327.0
300.0 564.0 448.0 608.0 482.0 441.0 352.0 520.0 415.0 457.0 365.0
400.0 637.0 513.0 689.0 554.0 493.0 399.0 579.0 468.0 509.0 412.0
500.0 713.0 584.0 772.0 632.0 547.0 450.0 640.0 525.0 561.0 461.0
In air touching (3 core)
In air spaced (3 core)
In air enclosed (3 core)
Underground Direct Buried (3 core)
Underground ducts (3 core)
