12.7/22kV Triplex
12.7/22kV Triplex

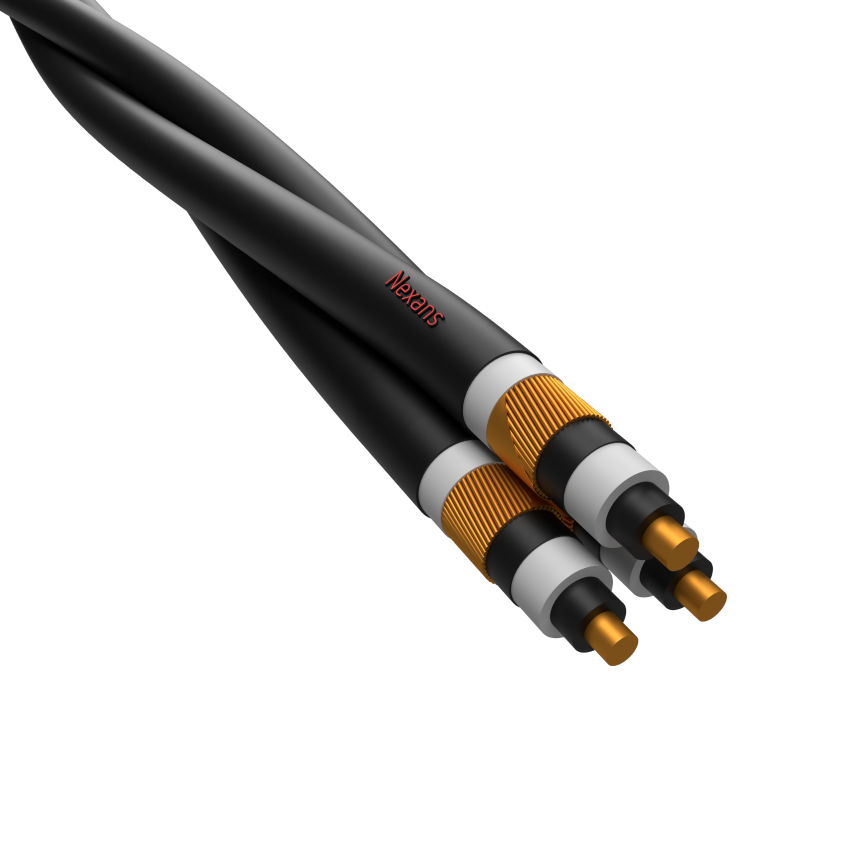

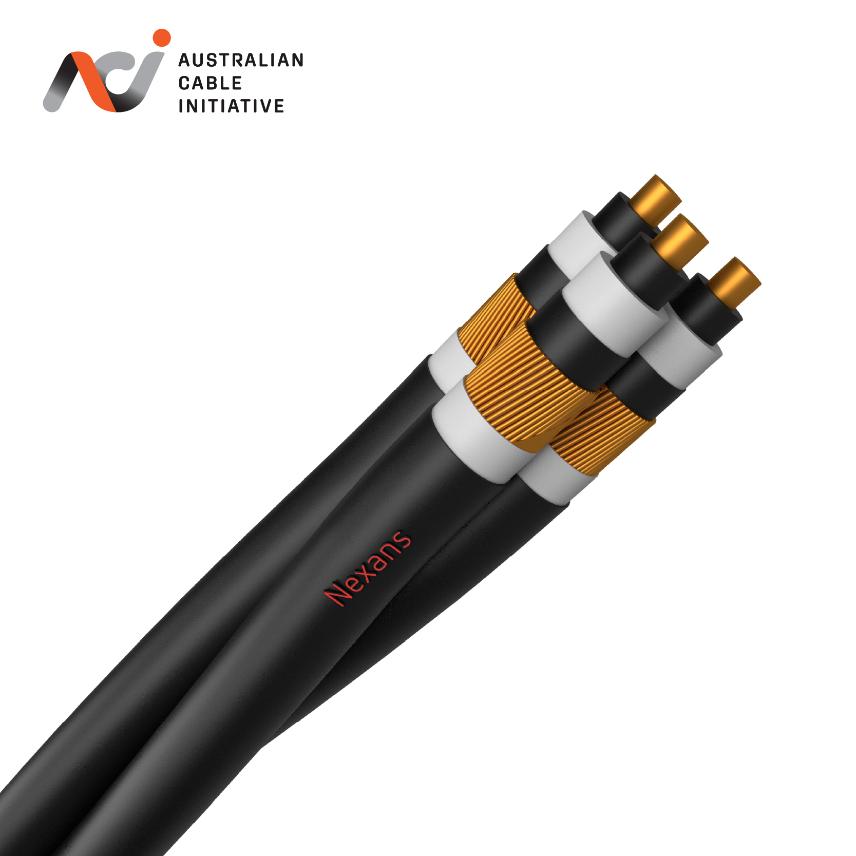

12.7/22kV Triplex Individually Screened, Water Blocking Taped/HDPE Sheathed Stranded Conductors, up to 10kA fault level
Read more12.7/22kV Triplex
Nexans ref. XLZP18TH003
- Conductor material: Copper
- Conductor cross-section: 35 mm²
12.7/22kV Triplex
Nexans ref. XLZP19TH003
- Conductor material: Copper
- Conductor cross-section: 50 mm²
12.7/22kV Triplex
Nexans ref. XLZP20TH003
- Conductor material: Copper
- Conductor cross-section: 70 mm²
12.7/22kV Triplex
Nexans ref. XLZP22TH003
- Conductor material: Copper
- Conductor cross-section: 95 mm²
12.7/22kV Triplex
Nexans ref. XLZP23TH003
- Conductor material: Copper
- Conductor cross-section: 120 mm²
12.7/22kV Triplex
Nexans ref. XLZP24TH003
- Conductor material: Copper
- Conductor cross-section: 150 mm²
12.7/22kV Triplex
Nexans ref. XLZP25TH003
- Conductor material: Copper
- Conductor cross-section: 185 mm²
12.7/22kV Triplex
Nexans ref. XLZP26TH003
- Conductor material: Copper
- Conductor cross-section: 240 mm²
12.7/22kV Triplex
Nexans ref. XLZP27TH003
- Conductor material: Copper
- Conductor cross-section: 300 mm²
12.7/22kV Triplex
Nexans ref. XLZP28TH003
- Conductor material: Copper
- Conductor cross-section: 400 mm²
12.7/22kV Triplex
Nexans ref. XLZP30TH003
- Conductor material: Copper
- Conductor cross-section: 500 mm²
12.7/22kV Triplex
Nexans ref. XLZA18TH003
- Conductor material: Aluminum
- Conductor cross-section: 35 mm²
12.7/22kV Triplex
Nexans ref. XLZA19TH003
- Conductor material: Aluminum
- Conductor cross-section: 50 mm²
12.7/22kV Triplex
Nexans ref. XLZA20TH003
- Conductor material: Aluminum
- Conductor cross-section: 70 mm²
12.7/22kV Triplex
Nexans ref. XLZA22TH003
- Conductor material: Aluminum
- Conductor cross-section: 95 mm²
12.7/22kV Triplex
Nexans ref. XLZA23TH003
- Conductor material: Aluminum
- Conductor cross-section: 120 mm²
12.7/22kV Triplex
Nexans ref. XLZA24TH003
- Conductor material: Aluminum
- Conductor cross-section: 150 mm²
12.7/22kV Triplex
Nexans ref. XLZA25TH003
- Conductor material: Aluminum
- Conductor cross-section: 185 mm²
12.7/22kV Triplex
Nexans ref. XLZA26TH003
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
12.7/22kV Triplex
Nexans ref. XLZA27TH003
- Conductor material: Aluminum
- Conductor cross-section: 300 mm²
12.7/22kV Triplex
Nexans ref. XLZA28TH003
- Conductor material: Aluminum
- Conductor cross-section: 400 mm²
12.7/22kV Triplex
Nexans ref. XLZA30TH003
- Conductor material: Aluminum
- Conductor cross-section: 500 mm²
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2
Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, water blocking taped, HDPE sheathed, laid up 'Triplex' cables.
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
Current carrying capacity table (in Amps) - 12.7/22kV Triplex
Current carrying capacity table (in Amps) - 12.7/22kV Triplex
| Conductor cross-section |
|
|
|
|
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 35.0 | 173.0 | 133.0 | 182.0 | 140.0 | 130.0 | 100.0 | 174.0 | 134.0 | 144.0 | 111.0 |
| 50.0 | 206.0 | 160.0 | 217.0 | 169.0 | 157.0 | 123.0 | 204.0 | 159.0 | 172.0 | 134.0 |
| 70.0 | 254.0 | 199.0 | 269.0 | 210.0 | 192.0 | 150.0 | 248.0 | 194.0 | 209.0 | 163.0 |
| 95.0 | 309.0 | 241.0 | 327.0 | 255.0 | 230.0 | 180.0 | 296.0 | 231.0 | 249.0 | 194.0 |
| 120.0 | 355.0 | 276.0 | 376.0 | 293.0 | 262.0 | 204.0 | 335.0 | 262.0 | 282.0 | 220.0 |
| 150.0 | 400.0 | 312.0 | 425.0 | 331.0 | 293.0 | 229.0 | 374.0 | 292.0 | 314.0 | 246.0 |
| 185.0 | 456.0 | 356.0 | 484.0 | 378.0 | 342.0 | 268.0 | 420.0 | 329.0 | 362.0 | 284.0 |
| 240.0 | 534.0 | 419.0 | 568.0 | 445.0 | 396.0 | 312.0 | 482.0 | 380.0 | 416.0 | 328.0 |
| 300.0 | 608.0 | 479.0 | 647.0 | 509.0 | 445.0 | 352.0 | 539.0 | 427.0 | 466.0 | 369.0 |
| 400.0 | 697.0 | 555.0 | 742.0 | 591.0 | 504.0 | 403.0 | 606.0 | 485.0 | 523.0 | 419.0 |
| 500.0 | 787.0 | 639.0 | 840.0 | 681.0 | 562.0 | 457.0 | 673.0 | 546.0 | 580.0 | 472.0 |
|
In air touching |
|
In air spaced from surface |
|
In air enclosed |
|
Underground direct touching |
|
Underground ducts |
