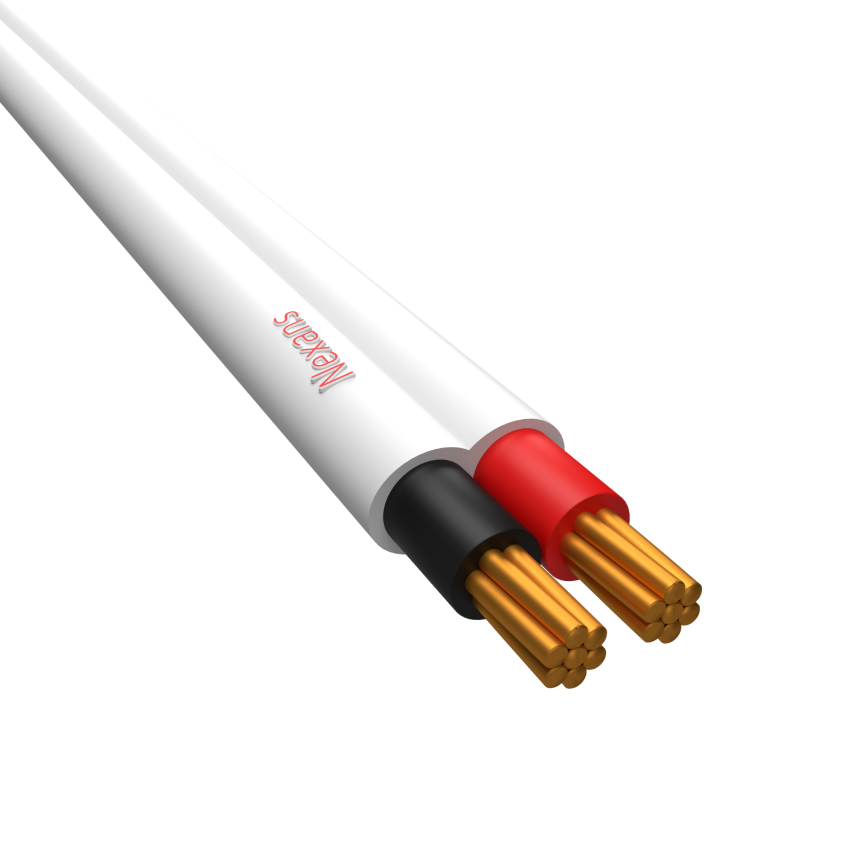

PVC Flat (TPS) 2 Core & 3 Core (No Earth)

PVC Flat (TPS) 2 Core & 3 Core (No Earth) PVC Flat (TPS) 2 Core & 3 Core (No Earth) PVC Flat (TPS) 2 Core & 3 Core (No Earth)

PVC Flat (TPS) 2 Core & 3 Core (No Earth)

2 & 3 core flat, 450/750V V-90 insulated, PVC sheathed to AS/NZS 5000.2, copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

2X1.0mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP02A1002WVAA - Country ref. CACP02A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid copper
  • Conductor cross-section: 1 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.0mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m

Nexans ref. CACP02A1002WVAB - Country ref. CACP02A1002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid copper
  • Conductor cross-section: 1 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.0mm2 PVC Flat 450/750V Red White Cores with White Sheath 200m

Nexans ref. CACP02A2002WVAB - Country ref. CACP02A2002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Solid class 1
  • Type of conductor: Solid copper
  • Conductor cross-section: 1 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP05A1002WVAA - Country ref. CACP05A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red Black Cores with White Sheath 500m

Nexans ref. CACP05A5002WVAA - Country ref. CACP05A5002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red White Cores with Red Sheath 100m

Nexans ref. CACP05A1002RDAB - Country ref. CACP05A1002RDAB

  • Colour: Red / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red White Cores with Red Sheath 200m

Nexans ref. CACP05A2002RDAB - Country ref. CACP05A2002RDAB

  • Colour: Red / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red White Cores with Red Sheath 500m

Nexans ref. CACP05A5002RDAB - Country ref. CACP05A5002RDAB

  • Colour: Red / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m

Nexans ref. CACP05A1002WVAB - Country ref. CACP05A1002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X1.5mm2 PVC Flat 450/750V Red White Cores with White Sheath 500m

Nexans ref. CACP05A5002WVAB - Country ref. CACP05A5002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 2



2X10mm2 PVC Flat 450/750V Red Black Cores with Orange Sheath 100m

Nexans ref. CACP13A1002OGAA - Country ref. CACP13A1002OGAA

  • Colour: Orange / red / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 10 mm²
  • Nominal outer sheath thickness: 1.2 mm
  • Number of cores: 2



2X10mm2 PVC Flat 450/750V Red Black Cores with Orange Sheath 500m

Nexans ref. CACP13A5002OGAA - Country ref. CACP13A5002OGAA

  • Colour: Orange / red / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 10 mm²
  • Nominal outer sheath thickness: 1.2 mm
  • Number of cores: 2



2X10mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP13A1002WVAA - Country ref. CACP13A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 10 mm²
  • Nominal outer sheath thickness: 1.2 mm
  • Number of cores: 2



2X10mm2 PVC Flat 450/750V Red Black Cores with White Sheath 500m

Nexans ref. CACP13A5002WVAA - Country ref. CACP13A5002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 10 mm²
  • Nominal outer sheath thickness: 1.2 mm
  • Number of cores: 2



2X16mm2 PVC Flat 450/750V Red Black Cores with Orange Sheath 100m

Nexans ref. CACP15A1002OGAA - Country ref. CACP15A1002OGAA

  • Colour: Orange / red / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 16 mm²
  • Nominal outer sheath thickness: 1.3 mm
  • Number of cores: 2



2X16mm2 PVC Flat 450/750V Red Black Cores with Orange Sheath 500m

Nexans ref. CACP15A5002OGAA - Country ref. CACP15A5002OGAA

  • Colour: Orange / red / black
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 16 mm²
  • Nominal outer sheath thickness: 1.3 mm
  • Number of cores: 2



2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP15A1002WVAA - Country ref. CACP15A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 16 mm²
  • Nominal outer sheath thickness: 1.3 mm
  • Number of cores: 2



2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 500m

Nexans ref. CACP15A5002WVAA - Country ref. CACP15A5002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 16 mm²
  • Nominal outer sheath thickness: 1.3 mm
  • Number of cores: 2



2X2.5mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP07A1002WVAA - Country ref. CACP07A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 2.5 mm²
  • Nominal outer sheath thickness: 1.0 mm
  • Number of cores: 2



2X2.5mm2 PVC Flat 450/750V Red Black Cores with White Sheath 500m

Nexans ref. CACP07A5002WVAA - Country ref. CACP07A5002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 2.5 mm²
  • Nominal outer sheath thickness: 1.0 mm
  • Number of cores: 2



2X2.5mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m

Nexans ref. CACP07A1002WVAB - Country ref. CACP07A1002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 2.5 mm²
  • Nominal outer sheath thickness: 1.0 mm
  • Number of cores: 2



2X2.5mm2 PVC Flat 450/750V Red White Cores with White Sheath 500m

Nexans ref. CACP07A5002WVAB - Country ref. CACP07A5002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 2.5 mm²
  • Nominal outer sheath thickness: 1.0 mm
  • Number of cores: 2



2X4mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP09A1002WVAA - Country ref. CACP09A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 4 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



2X4mm2 PVC Flat 450/750V Red Black Cores with White Sheath 500m

Nexans ref. CACP09A5002WVAA - Country ref. CACP09A5002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 4 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



2X4mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m

Nexans ref. CACP09A1002WVAB - Country ref. CACP09A1002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 4 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



2X4mm2 PVC Flat 450/750V Red White Cores with White Sheath 500m

Nexans ref. CACP09A5002WVAB - Country ref. CACP09A5002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 4 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



2X6mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m

Nexans ref. CACP11A1002WVAA - Country ref. CACP11A1002WVAA

  • Colour: White / Black / Red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 6 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



2X6mm2 PVC Flat 450/750V Red White Cores with White Sheath 100m

Nexans ref. CACP11A1002WVAB - Country ref. CACP11A1002WVAB

  • Colour: White / white / red
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 6 mm²
  • Nominal outer sheath thickness: 1.1 mm
  • Number of cores: 2



3X1.5mm2 PVC Flat 450/750V Red White Blue Cores with White Sheath 100m

Nexans ref. EACP05A1003WVAA - Country ref. EACP05A1003WVAA

  • Colour: White
  • Conductor flexibility: Class 2
  • Type of conductor: Stranded copper
  • Conductor cross-section: 1.5 mm²
  • Nominal outer sheath thickness: 0.9 mm
  • Number of cores: 3



Description

Description

Standards

  • Product
    AS/NZS 1125; AS/NZS 5000.2
  • 2 & 3 core flat,
  • 450/750V V-90 insulated,
  • PVC sheathed to AS/NZS 5000.2,
  • Copper conductors, 90°C.

Note: *Red sheath 450/750V version available for fire alarm wiring systems.
A 0.6/1kV red sheath version is also available: DACP05AA002RDAB.

2 Core - Twin-Active or Active & Neutral

3 Core - 3 phase (Red, White, Blue)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Resources

Resources

Documentation

NXNS-00364-V01.01 pdf — 565.7 kB
Download

PVC Flat - Current carrying capacities single phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu
1.0 15.0 14.0 11.0 7.0 13.0 10.0 6.0 17.0
1.5 19.0 18.0 14.0 9.0 16.0 13.0 8.0 21.0
2.5 27.0 26.0 20.0 13.0 23.0 19.0 12.0 30.0
4.0 37.0 34.0 27.0 17.0 30.0 24.0 15.0 39.0
6.0 46.0 44.0 35.0 22.0 39.0 31.0 20.0 50.0
10.0 64.0 60.0 48.0 30.0 52.0 42.0 26.0 66.0
16.0 85.0 80.0 64.0 40.0 68.0 54.0 34.0 86.0
Unenclosed spaced
Unenclosed touching
Unenclosed and partially surrounded by thermal insulation
Unenclosed and completely surrounded by thermal insulation
Enclosed conduit in air
Enclosed, partially surrounded by thermal insulation
Enclosed, completely surrounded by thermal insulation
Underground ducts

PVC Flat - Current carrying capacities three phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu
1.0 13.0 12.0 9.0 6.0 11.0 9.0 5.0 14.0
1.5 16.0 15.0 12.0 8.0 14.0 11.0 7.0 18.0
2.5 23.0 22.0 17.0 11.0 20.0 16.0 10.0 25.0
4.0 31.0 29.0 23.0 15.0 25.0 20.0 13.0 33.0
Unenclosed spaced
Unenclosed touching
Unenclosed and partially surrounded by thermal insulation
Unenclosed and completely surrounded by thermal insulation
Enclosed conduit in air
Enclosed, partially surrounded by thermal insulation
Enclosed, completely surrounded by thermal insulation
Underground ducts
Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
