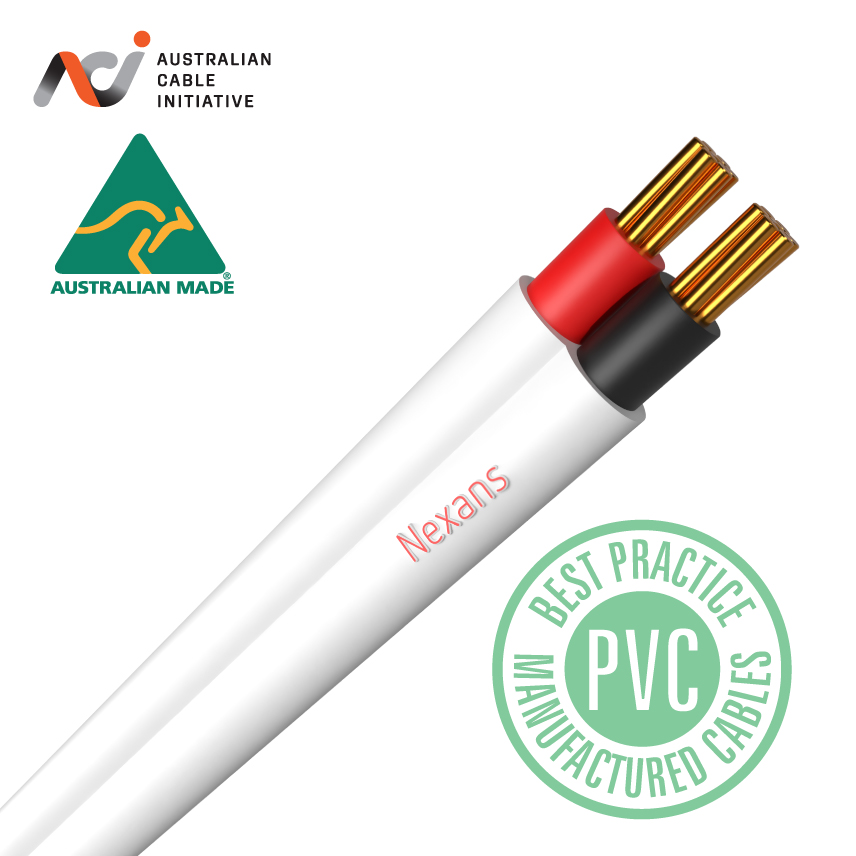

2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m
Environmental data
2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m
2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m
Read more- Nexans ref. : CACP15A1002WVAA
- Country ref. : CACP15A1002WVAA
- EAN : 9322576240361
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.2
- 2 & 3 core flat,
- 450/750V V-90 insulated,
- PVC sheathed to AS/NZS 5000.2,
- Copper conductors, 90°C.
Note: *Red sheath 450/750V version available for fire alarm wiring systems.
A 0.6/1kV red sheath version is also available: DACP05AA002RDAB.
2 Core - Twin-Active or Active & Neutral
3 Core - 3 phase (Red, White, Blue)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White / Black / Red
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Stranded copper
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Approximate weight
42.0 kg/100m
Cable length
100 m
Conductor cross-section
16 mm²
Neutral conductor section (when smaller)
- mm²
Nominal insulation thickness
1.0 mm
Nominal outer sheath thickness
1.3 mm
Nominal overall diameter
16.3 x 9.5
Number of cores
2
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
1.4 Ohm/km
Inductive reactance at 50Hz
0.126 Ohm/km
Insulation resistance at 20°C
8.4 MOhm.km
Max. DC resistance of the conductor at 20°C
1.15 Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Resources
Resources
2X16mm2 PVC Flat 450/750V Red Black Cores with White Sheath 100m
Nexans ref. : CACP15A1002WVAA
Country ref. : CACP15A1002WVAA
EAN : 9322576240361
PEP : NXNS-00366-V01.01
Global Carbon Footprint
- Amount of CO2 emitted Cradle to Gate phase (raw material collection and manufacturing), for the production of 1 km of cable.
