95mm 4C&E O/C 0.6/1KV
95mm 4C&E O/C 0.6/1KV

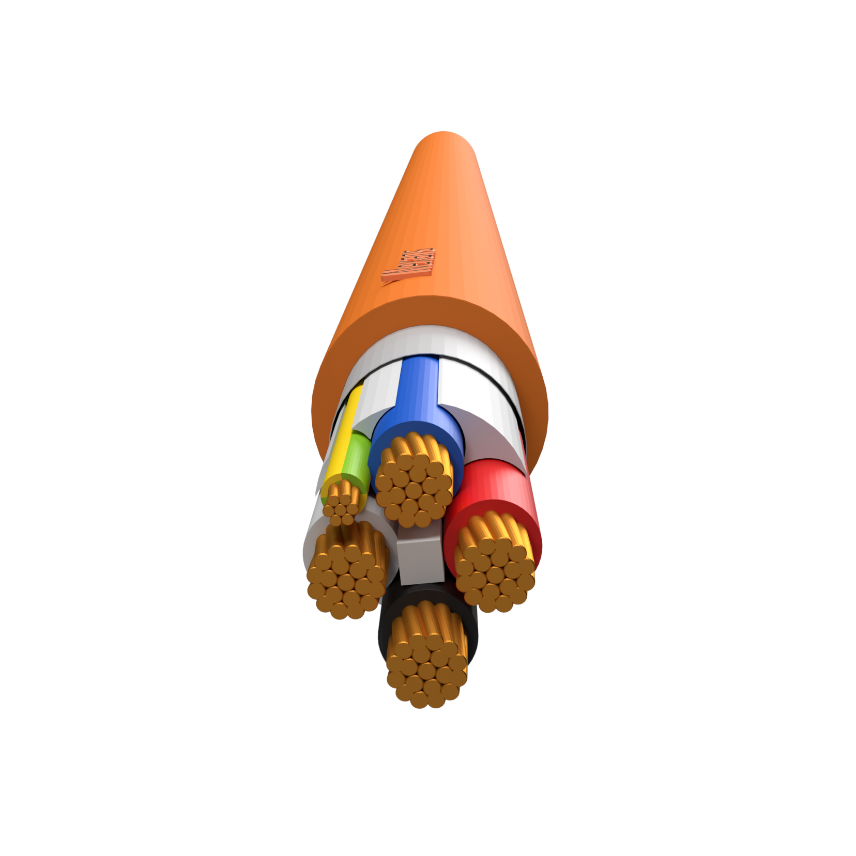

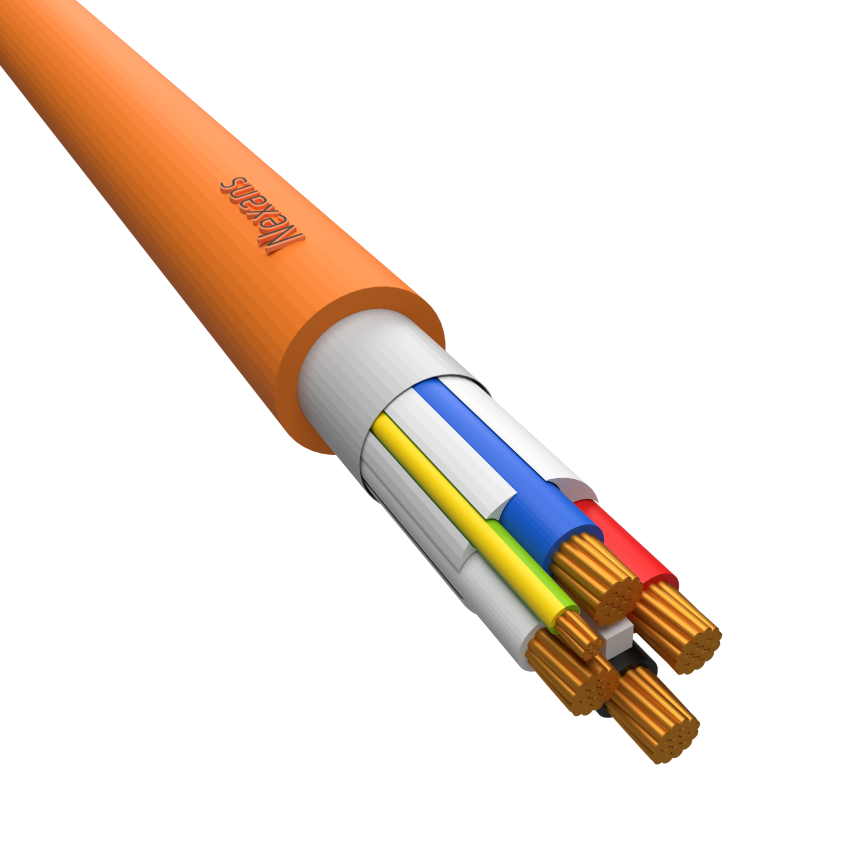

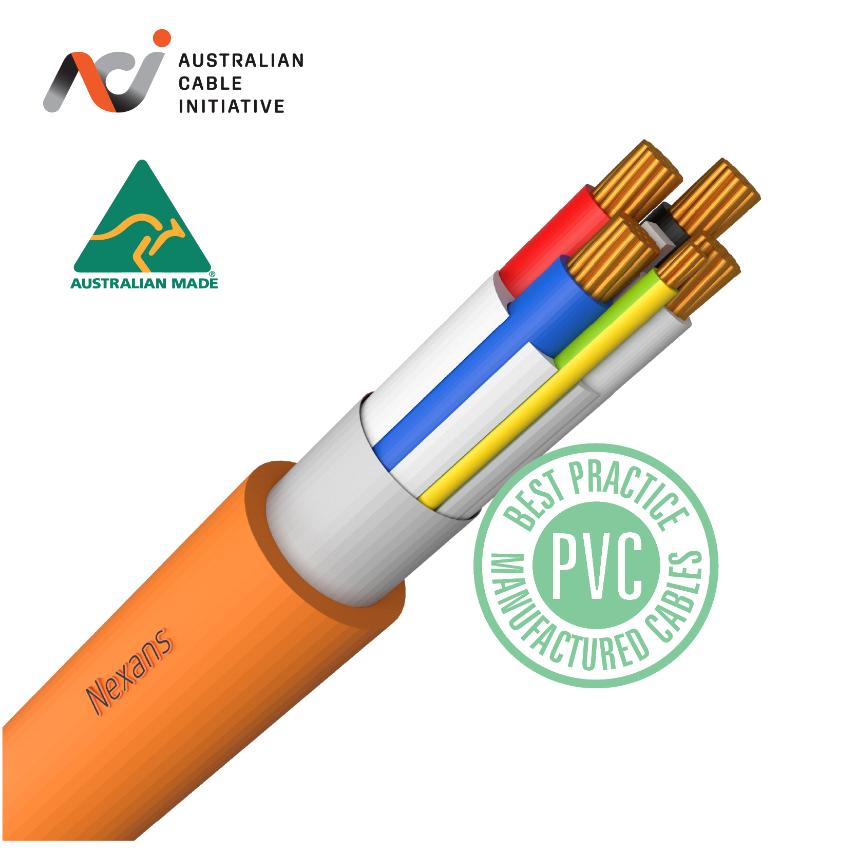

4X95mm2 + E PVC Circular Orange 0.6/1KV
Read more- Nexans ref. : HNHC22AA004OMAA
- Country ref. : HNHC22AA004OMAA
- EAN : 99319215261934
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1; AS/NZS 5000.2
- 4 core+earth, circular,
- V-90 insulated,
- 90°C PVC sheathed to AS/NZS 5000,
- Copper conductors.
- GNHP 450/750V to AS/NZS 5000.2
- HNHP 0.6/1kV to AS/NZS 5000.1
Note: Earth cores smaller than 25mm² are not compacted.
* Due to a change in standard AS/NZS 5000.2, the minimum calculated value of the sheath thickness for circular multicore cables has reduced, therefore also reducing the OD and mass for 1.5mm2–6mm2 cables.
Orange Circular; Circs
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Orange
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Compact copper
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Approximate weight
465.0 kg/100m
Cable length
- m
Conductor cross-section
95 mm²
Earth conductor cross section
25 mm²
Nominal insulation thickness
1.6 mm
Nominal outer sheath thickness
2.2 mm
Nominal overall diameter
42.0 mm
Number of cores
4
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
0.236 Ohm/km
Inductive reactance at 50Hz
0.077 Ohm/km
Insulation resistance at 20°C
5.9 MOhm.km
Max. DC resistance of the conductor at 20°C
0.193 Ohm/km
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Maximum Pull Tension of Conductor
25 kN
Maximum Pulling Tension
5 kN
Usage characteristics
Usage characteristics
Minimum Bend Radius - During Installation (under Tension)
500 mm
Minimum Bend Radius - Installed
340 mm
Resources
Resources
