PVC SWA Control Multicore
PVC SWA Control Multicore

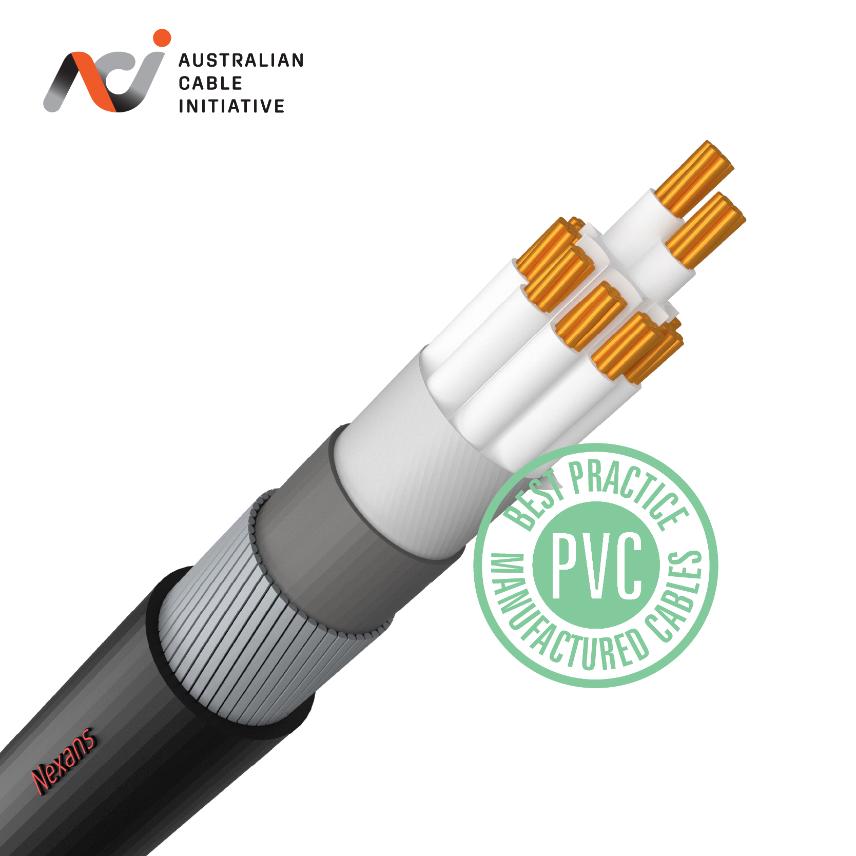

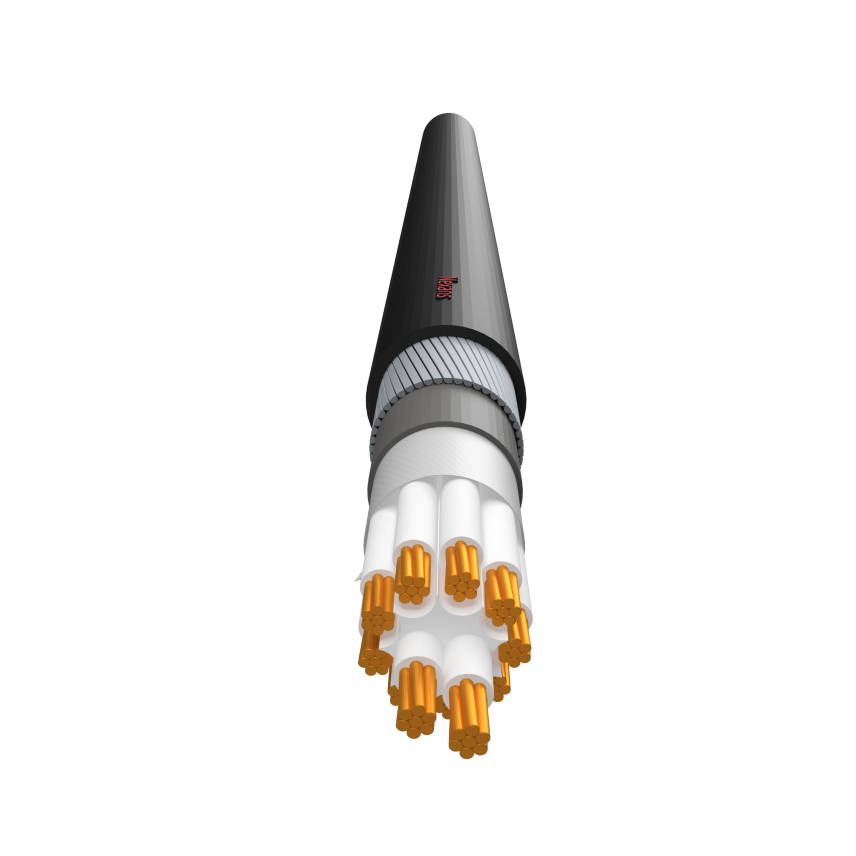

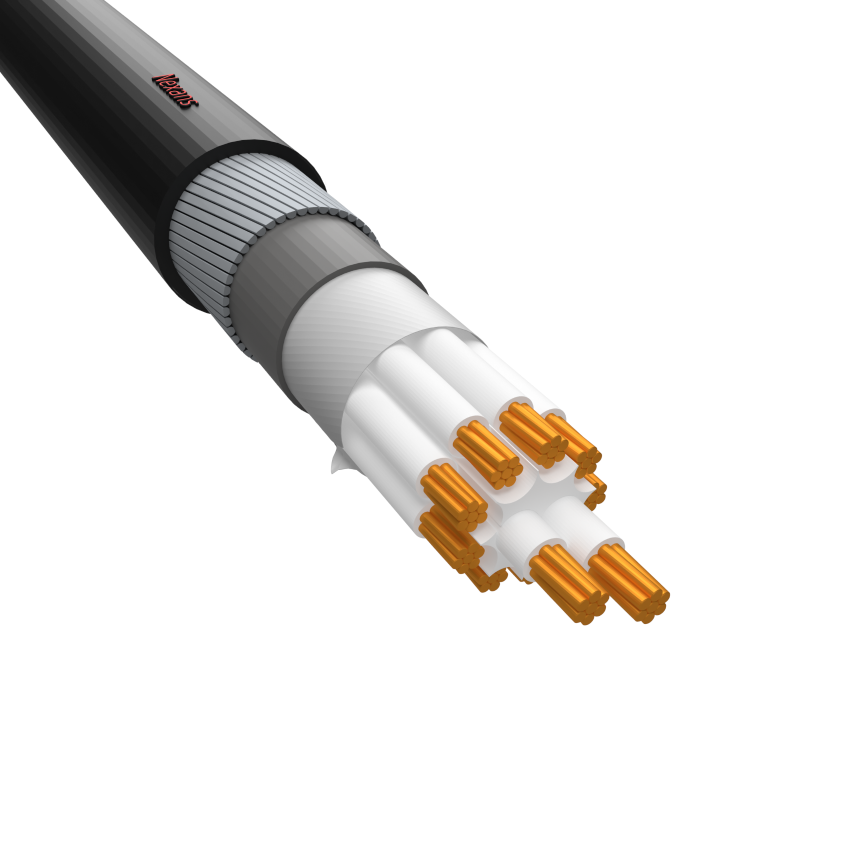

Multicore circular+earth, 0.6/1kV V-90 insulated, PVC bedded, steel wire armoured, PVC sheathed to AS/NZS 5000.1. Manufactured to PVC Best Practice Guidelines.
Read moreCIRC 10X1.5E PC PVCPVCSWPVC
Nexans ref. BFCP05AA010CXAA - Country ref. BFCP05AA010CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 10
- Maximum Pull Tension of Armour: 5 kN
- Minimum Bend Radius - During Installation (under Tension): 370 mm
- Minimum Bend Radius - Installed: 250 mm
CIRC 10X2.5E PC PVCPVCSWPVC
Nexans ref. BFCP07AA010CXAA - Country ref. BFCP07AA010CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Number of cores: 10
- Maximum Pull Tension of Armour: 6 kN
- Minimum Bend Radius - During Installation (under Tension): 410 mm
- Minimum Bend Radius - Installed: 270 mm
CIRC 30X1.5E PC PVCPVCSWPVC
Nexans ref. BFCP05AA030CXAA - Country ref. BFCP05AA030CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 30
- Maximum Pull Tension of Armour: 11 kN
- Minimum Bend Radius - During Installation (under Tension): 530 mm
- Minimum Bend Radius - Installed: 360 mm
CU CNTRL-ARM 1.5(7w)+E X 20 BK
Nexans ref. BFCP05AA020CXAA - Country ref. BFCP05AA020CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 20
- Maximum Pull Tension of Armour: 9 kN
- Minimum Bend Radius - During Installation (under Tension): 460 mm
- Minimum Bend Radius - Installed: 300 mm
CU CNTRL-ARM 1.5+E X 6
Nexans ref. BFCP05AA006CXAA - Country ref. BFCP05AA006CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 6
- Maximum Pull Tension of Armour: 3 kN
- Minimum Bend Radius - During Installation (under Tension): 300 mm
- Minimum Bend Radius - Installed: 200 mm
CU CNTRL-ARM 1.5+E X 12 BK
Nexans ref. BFCP05AA012CXAA - Country ref. BFCP05AA012CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 12
- Maximum Pull Tension of Armour: 6 kN
- Minimum Bend Radius - During Installation (under Tension): 390 mm
- Minimum Bend Radius - Installed: 260 mm
CU CNTRL-ARM 2.5+E X 6 BK
Nexans ref. BFCP07AA006CXAA - Country ref. BFCP07AA006CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Number of cores: 6
- Maximum Pull Tension of Armour: 5 kN
- Minimum Bend Radius - During Installation (under Tension): 340 mm
- Minimum Bend Radius - Installed: 230 mm
CU CNTRL-ARM 2.5+E X 20 BK
Nexans ref. BFCP07AA020CXAA - Country ref. BFCP07AA020CXAA
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Number of cores: 20
- Maximum Pull Tension of Armour: 10 kN
- Minimum Bend Radius - During Installation (under Tension): 510 mm
- Minimum Bend Radius - Installed: 340 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- Multicore circular+earth,
- 0.6/1kV
- V-90 insulated,
- PVC bedded
- Steel wire armoured
- PVC sheathed to AS/NZS 5000.1,
- Copper conductors, 90°C.
Control Cable
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Black
Conductor material
Copper
Conductor flexibility
Class 2
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Material of bedding
PVC
Armour type
Steel wires
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
