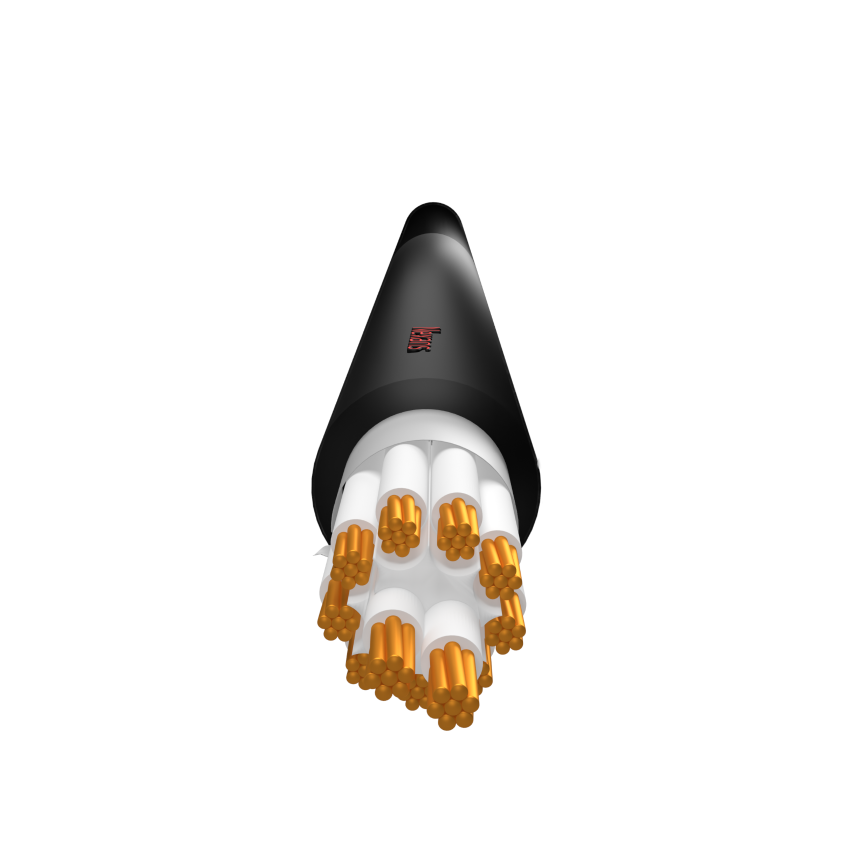

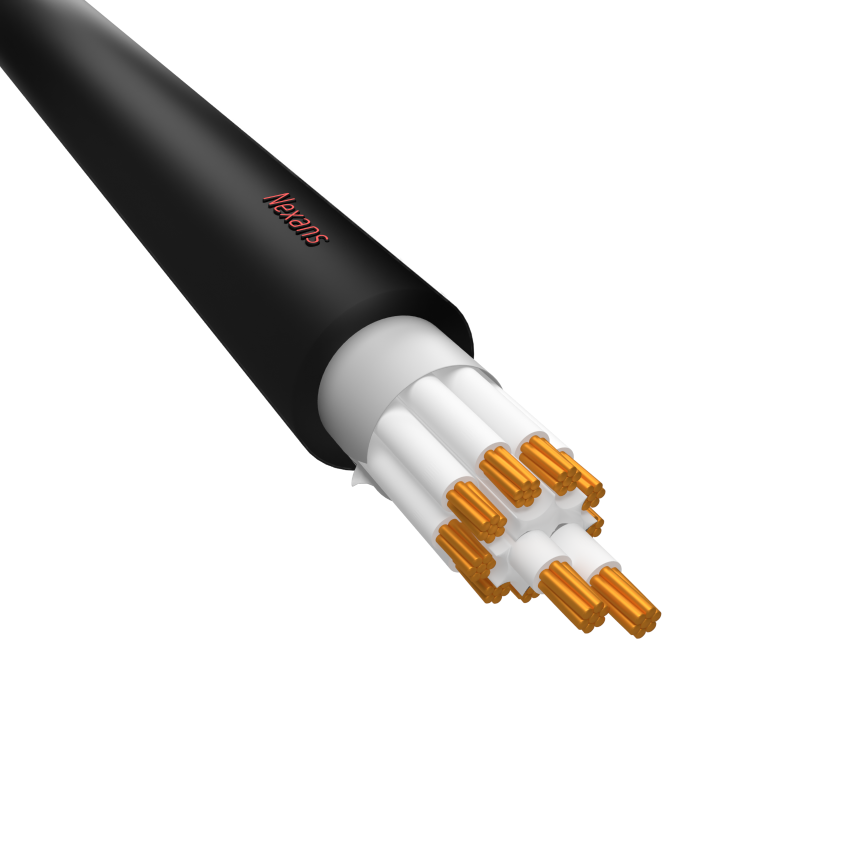

PVC Control Multicore (0.6/1.0kV)
PVC Control Multicore (0.6/1.0kV)

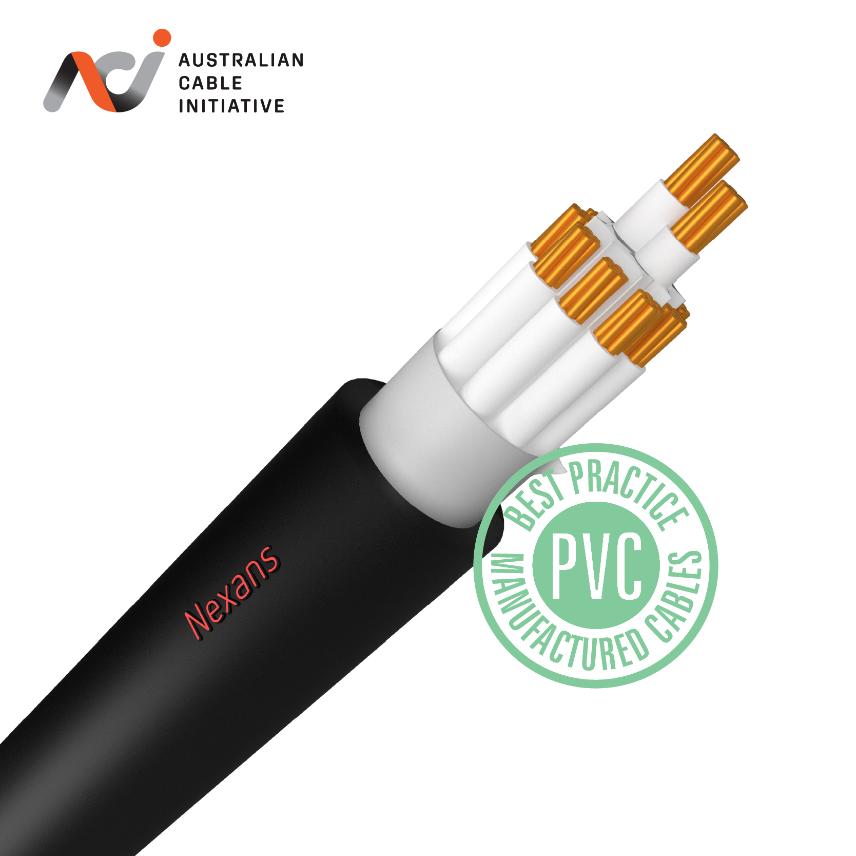

Multicore circular+earth, 0.6/1kV V-90 insulated, PVC sheathed to AS/NZS 5000.1, Copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.
Read more10X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA010CXWW - Country ref. BFAP05AA010CXWW
- Packaging: Cut to length (m)
- Approximate weight: 35.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 16.1 mm
- Number of cores: 10
- Maximum Pulling Tension: 1.2 kN
- Minimum Bend Radius - During Installation (under Tension): 95 mm
- Minimum Bend Radius - Installed: 64 mm
10X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP07AA010CXWW - Country ref. BFAP07AA010CXWW
- Packaging: Cut to length (m)
- Approximate weight: 50.0 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 18.1 mm
- Number of cores: 10
- Maximum Pulling Tension: 1.9 kN
- Minimum Bend Radius - During Installation (under Tension): 110 mm
- Minimum Bend Radius - Installed: 72 mm
12X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA012CXWW - Country ref. BFAP05AA012CXWW
- Packaging: Cut to length (m)
- Approximate weight: 40.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 17.0 mm
- Number of cores: 12
- Maximum Pulling Tension: 1.4 kN
- Minimum Bend Radius - During Installation (under Tension): 100 mm
- Minimum Bend Radius - Installed: 68 mm
12X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP07AA012CXWW - Country ref. BFAP07AA012CXWW
- Packaging: Cut to length (m)
- Approximate weight: 59.3 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 20.3 mm
- Number of cores: 12
- Maximum Pulling Tension: 2.3 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 81 mm
20X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA020CXWW - Country ref. BFAP05AA020CXWW
- Packaging: Cut to length (m)
- Approximate weight: 59.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 20.1 mm
- Number of cores: 20
- Maximum Pulling Tension: 2.2 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 80 mm
20X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP07AA020CXWW - Country ref. BFAP07AA020CXWW
- Packaging: Cut to length (m)
- Approximate weight: 85.0 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 22.8 mm
- Number of cores: 20
- Maximum Pulling Tension: 3.7 kN
- Minimum Bend Radius - During Installation (under Tension): 135 mm
- Minimum Bend Radius - Installed: 91 mm
2X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. DNHP05AA002CXWW - Country ref. DNHP05AA002CXWW
- Packaging: Cut to length (m)
- Approximate weight: 16.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 10.1 mm
- Number of cores: 2
- Maximum Pulling Tension: 0.32 kN
- Minimum Bend Radius - During Installation (under Tension): 60 mm
- Minimum Bend Radius - Installed: 40 mm
2X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. DNHP07AA002CXWW - Country ref. DNHP07AA002CXWW
- Packaging: Cut to length (m)
- Approximate weight: 21.0 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 11.3 mm
- Number of cores: 2
- Maximum Pulling Tension: 0.53 kN
- Minimum Bend Radius - During Installation (under Tension): 70 mm
- Minimum Bend Radius - Installed: 45 mm
30X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA030CXWW - Country ref. BFAP05AA030CXWW
- Packaging: Cut to length (m)
- Approximate weight: 83.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 24.3 mm
- Number of cores: 30
- Maximum Pulling Tension: 3.3 kN
- Minimum Bend Radius - During Installation (under Tension): 145 mm
- Minimum Bend Radius - Installed: 97 mm
4X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. HNHP05AA004CXWW - Country ref. HNHP05AA004CXWW
- Packaging: Cut to length (m)
- Approximate weight: 24.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 11.9 mm
- Number of cores: 4
- Maximum Pulling Tension: 0.53 kN
- Minimum Bend Radius - During Installation (under Tension): 70 mm
- Minimum Bend Radius - Installed: 48 mm
50X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA050CXWW - Country ref. BFAP05AA050CXWW
- Packaging: Cut to length (m)
- Approximate weight: 129.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 29.4 mm
- Number of cores: 50
- Maximum Pulling Tension: 5.4 kN
- Minimum Bend Radius - During Installation (under Tension): 265 mm
- Minimum Bend Radius - Installed: 176 mm
6X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA006CXWW - Country ref. BFAP05AA006CXWW
- Packaging: Cut to length (m)
- Approximate weight: 24.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 13.1 mm
- Number of cores: 6
- Maximum Pulling Tension: 0.74 kN
- Minimum Bend Radius - During Installation (under Tension): 80 mm
- Minimum Bend Radius - Installed: 52 mm
6X1.5mm2 + E PVC Control (0.6/1.0kV) Black 500m
Nexans ref. BFAP05A5006CXWW - Country ref. BFAP05A5006CXWW
- Approximate weight: 24.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 13.1 mm
- Number of cores: 6
- Maximum Pulling Tension: 0.74 kN
- Minimum Bend Radius - During Installation (under Tension): 80 mm
- Minimum Bend Radius - Installed: 52 mm
6X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP07AA006CXWW - Country ref. BFAP07AA006CXWW
- Packaging: Cut to length (m)
- Approximate weight: 34.0 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 14.6 mm
- Number of cores: 6
- Maximum Pulling Tension: 1.2 kN
- Minimum Bend Radius - During Installation (under Tension): 90 mm
- Minimum Bend Radius - Installed: 58 mm
8X1.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP05AA008CXWW - Country ref. BFAP05AA008CXWW
- Packaging: Cut to length (m)
- Approximate weight: 30.0 kg/100m
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 15.4 mm
- Number of cores: 8
- Maximum Pulling Tension: 0.95 kN
- Minimum Bend Radius - During Installation (under Tension): 90 mm
- Minimum Bend Radius - Installed: 62 mm
8X2.5mm2 + E PVC Control (0.6/1.0kV) Black
Nexans ref. BFAP07AA008CXWW - Country ref. BFAP07AA008CXWW
- Packaging: Cut to length (m)
- Approximate weight: 43.0 kg/100m
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 17.3 mm
- Number of cores: 8
- Maximum Pulling Tension: 1.6 kN
- Minimum Bend Radius - During Installation (under Tension): 105 mm
- Minimum Bend Radius - Installed: 69 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- Multicore circular+earth,
- 0.6/1kV
- V-90 insulated,
- PVC sheathed to AS/NZS 5000.1,
- Copper conductors, 90°C.
Control Cable
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Black
Conductor material
Copper
Conductor flexibility
Class 2
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
