Lighting Connector Leads
Lighting Connector Leads
Connector Lead for Lighting Circuits Low Fire Hazard (XLPE) Cable
Read more10m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.100
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 1.2 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
10m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.100
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.637 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
11m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.110
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 1.31 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
11m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.110
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.798 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
12m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.120
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 1.43 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
12m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.120
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.96 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
1m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.010
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.13 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
1m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.010
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.178 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
1m Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.010
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.27 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
2m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.020
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.25 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
2m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.020
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.341 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41

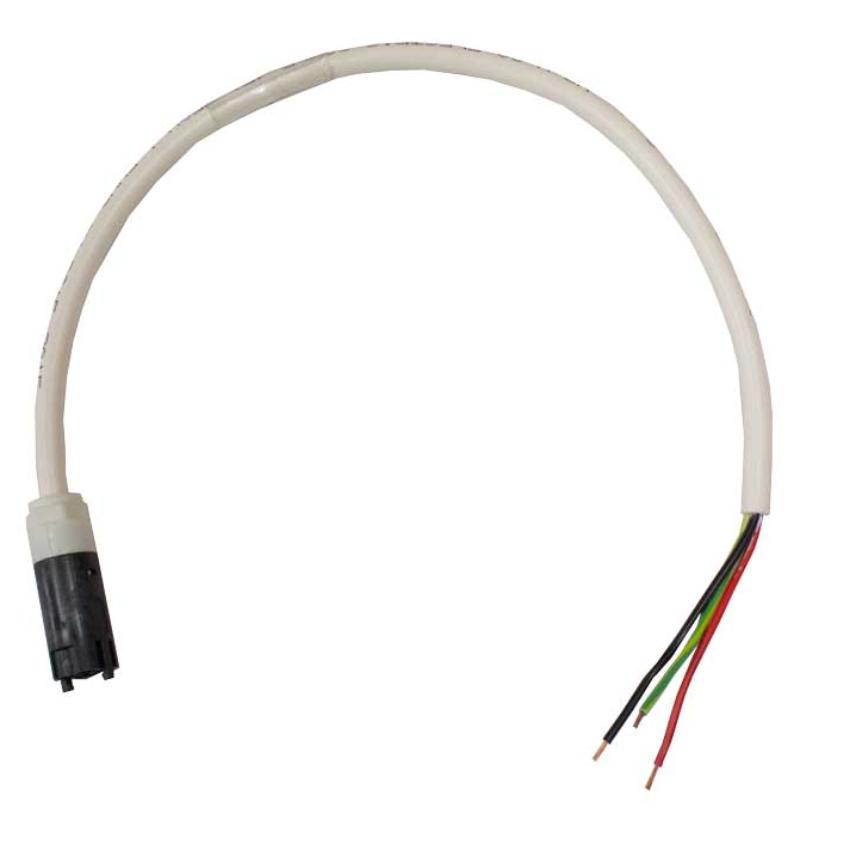

300mm Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.003
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
300mm Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.003
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.065 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
300mm Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.003
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.11 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
300mm Starter Cable (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.000.3A6.2.003
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
300mm Starter Cable (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.000.3B6.3.003
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.065 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
3m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.030
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.37 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
3m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.030
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.502 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
4m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.040
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.49 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
4m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.040
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.664 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.005
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.08 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
500mm Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.005
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.098 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.005
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.15 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Starter Cable (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.000.5BT.3.005
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.15 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
5m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.050
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.61 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
5m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.050
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.827 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
6m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.060
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.72 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
6m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.060
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 0.988 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
7m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.070
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.84 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
7m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.070
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.151 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
8m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.080
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 0.96 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
8m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.080
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.312 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
9m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.090
- Packaging: Unit
- Sheath colour: White
- Approximate weight: 1.08 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
9m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.090
- Packaging: Unit
- Sheath colour: Black
- Approximate weight: 1.474 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
Description
Description
Standards
-
NationalAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the Accessory & Connector Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Board Connections
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
With smaller neutral conductor
No
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Resources
Resources
Documentation
A1_1.3.3A6.000.2.XXX_3c 1.5mm Con
docx — 3.5 MB
A1_2.3.000.3A6.2.XXX_3c 1.5mm Starter
docx — 3.5 MB
A1_1.1.3B6.000.3.XXX_3c 2.5mm Con
docx — 3.5 MB
A1_1.1.5BT.000.3.XXX_5c 2.5mm Con
docx — 3.4 MB
A1_1.1.000.5BT.3.XXX_5c 2.5mm Starter.
docx — 3.4 MB
A1_1.1.000.3B6.3.XXX_3c 2.5mm Starter
docx — 3.4 MB
Find a Distributor
Waiting…
Related products
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
