400/440TB & 440PB with ABB KEVA/KECA
Nexans ref.
- Dielectric withstand voltage, 50Hz 1mn: 54 kV
- Impulse voltage: 125 kV
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
480TB & 800PB with ABB KEVA/KECA
Nexans ref.
- Dielectric withstand voltage, 50Hz 1mn: 93.5 kV
- Impulse voltage: 200 kV
- Rated Voltage Uo/U (Um): 20,8/36 (42) kV
Description
Description

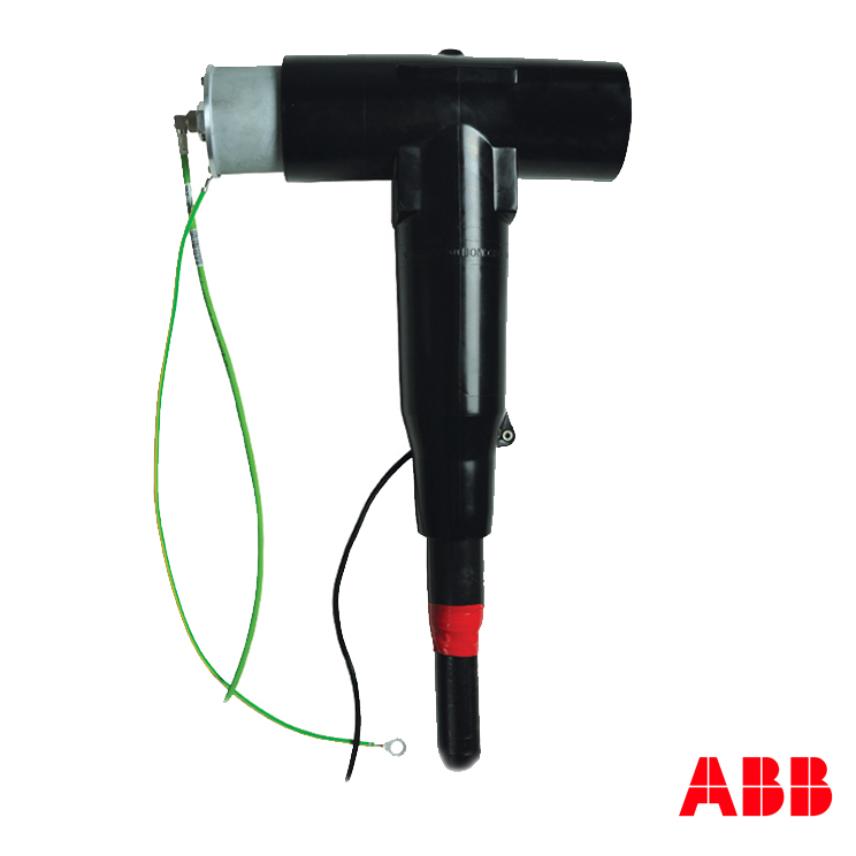

Smart connectors
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
35 ... 630 mm²
Electrical characteristics
Electrical characteristics
Maximal partial discharge at 2Uo
10 pC
Usage characteristics
Usage characteristics
Interface
C (1250 A)
Resources
Resources
Documentation
Nexans Smart Accessories leaflet
pdf — 2.9 MB
Nexans Smart connectors
pdf — 4.1 MB
