12.7/22kV Three Core Underground Residential Distribution

Products

12.7/22kV Three Core URD 10kA Fault Level

Nexans ref. XLNA25AA003

  • Packaging: Drum (m)
  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 74.9 mm



3C 185mm2 Al 12.7/22kV Three Core PVC/HDPE URD to Powercor Spec

Nexans ref. XLNA25SUT03CXAA

  • Packaging: Cut to length (m)
  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 74.9 mm



3C 240mm2 Al 12.7/22kV Three Core PVC/HDPE URD 10kA 500m

Nexans ref. XLNA26SKT03CXAA500

  • Packaging: Pack (500m)
  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 80.3 mm



3C 240mm2 Al 12.7/22kV Three Core PVC/HDPE URD to Powercor Spec

Nexans ref. XLNA26SUT03CXAA

  • Packaging: Cut to length (m)
  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 80.3 mm



3C 300 Al 12.7/22kV Three Core PVC/HDPE URD for Vic Network

Nexans ref. XLNA27SJT03CXAA

  • Screen: Copper wires
  • Type of conductor: Circular, stranded, class 2
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 86.6 mm



3C 35mm2 Al 12.7/22kV Three Core PVC/HDPE URD 10kA

Nexans ref. XLNA18AA003CXAA

  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 54.8 mm



3C 35mm2 Al 12.7/22kV Three Core PVC/HDPE URD to Powercor Spec

Nexans ref. XLNA18SUT03CXAA

  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 57.3 mm



3C 35mm2 Al 12.7/22kV Three Core URD PVC/HDPE - 3kA Fault Level

Nexans ref. XLMA18AA003CXAA

  • Screen: Copper wire
  • Type of conductor: Stranded compacted
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 54.8 mm



Description

Description

Standards

  • International
    IEC 60228; IEC 60502-2
  • National
    AS/NZS 1125; AS/NZS 1429.1

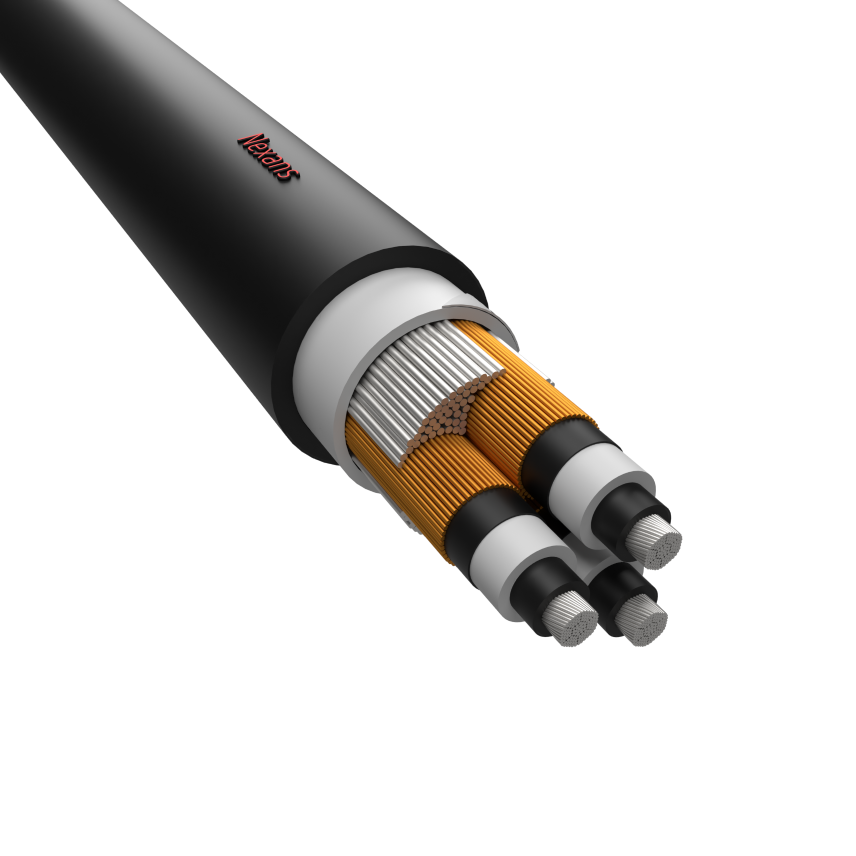

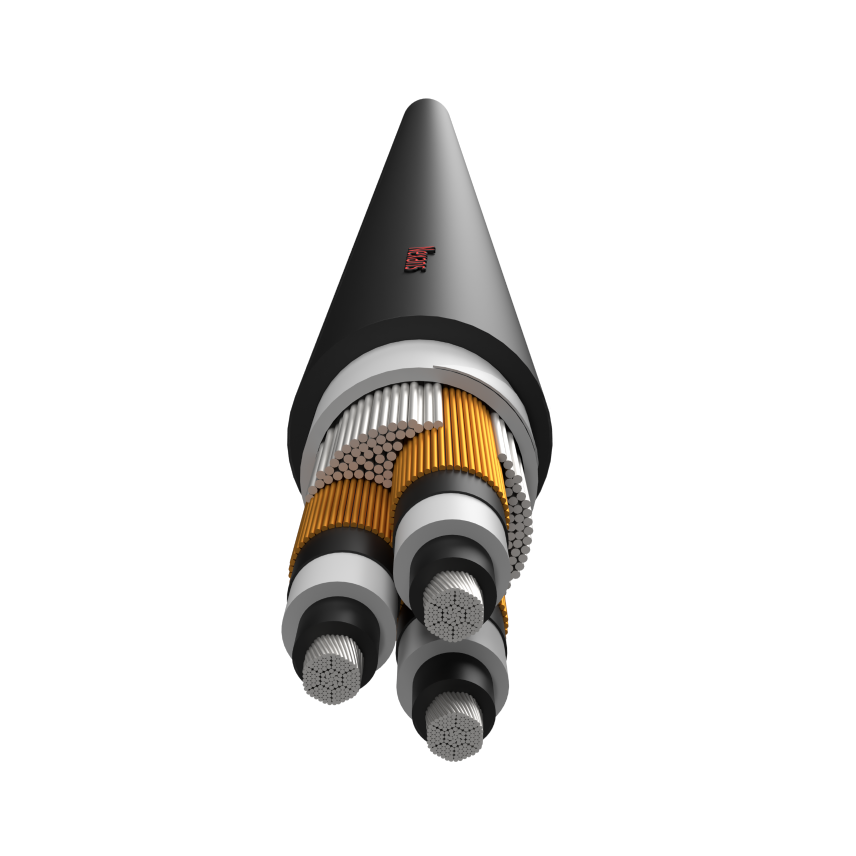

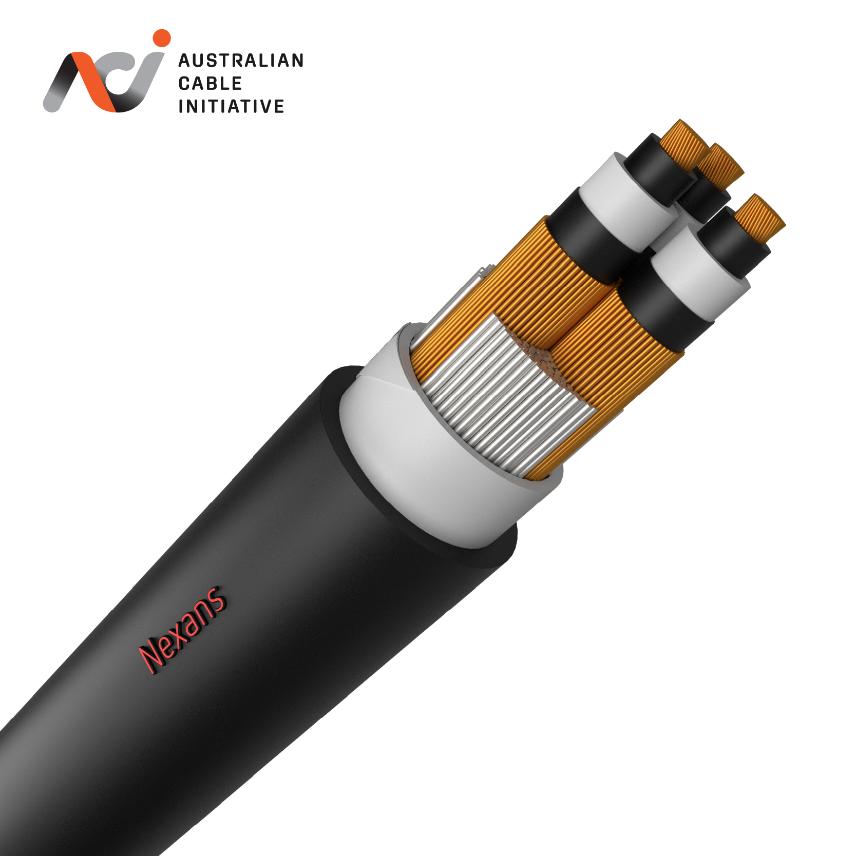

Stranded compacted aluminium conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, PVC/HDPE sheathed.

XLMA - 3kA fault level

XLNA - up to 10kA fault level as standard

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Aluminum
Conductor shape
Circular
Outer sheath
PVC/HDPE

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
12.7/22 kV

Resources

Resources

Current carrying capacity table (in Amps) - 12.7/22kV Three Core URD

Current carrying capacity table (in Amps) - 12.7/22kV Three Core URD

Conductor cross-section
mm² Al Al Al Al Al
35.0 131.0 139.0 98.0 135.0 109.0
95.0 235.0 252.0 175.0 233.0 191.0
185.0 350.0 378.0 336.0 264.0 283.0
240.0 412.0 447.0 309.0 390.0 329.0
In air touching (3 core)
In air spaced from surface (3 core)
In air enclosed (3 core)
Underground Direct Buried (3 core)
Underground ducts (3 core)
