12.7/22kV URD Triplex

12.7/22kV URD Triplex Individually Screened, Water Blocking Taped/HDPE Sheathed Aluminium Conductors, up to 3kA fault level

Datasheet PDF

Products

Conductor cross-section

35 mm² 95 mm² 185 mm² 240 mm²

products

Description

Standards

Product

AS/NZS 1125; AS/NZS 1429.1; IEC 60228; IEC 60502-2

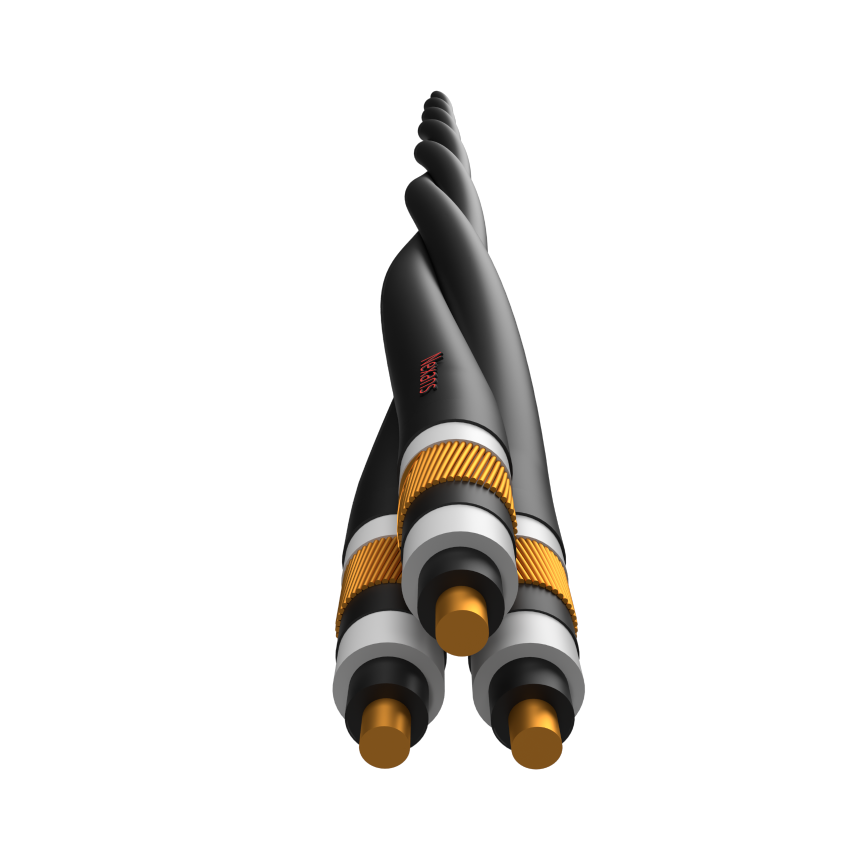

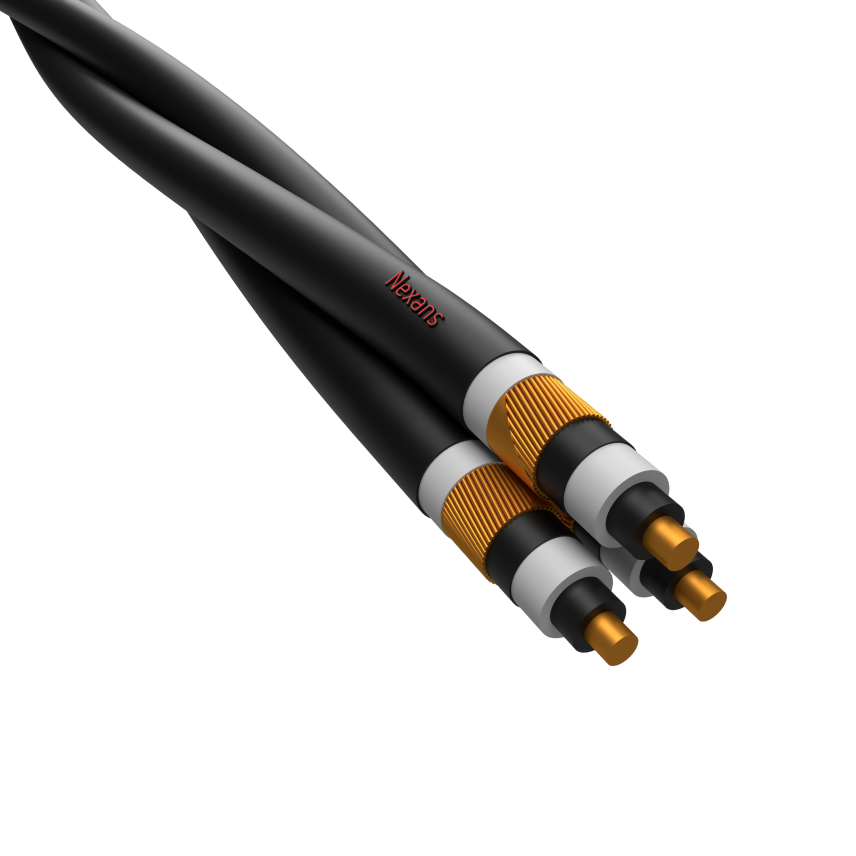

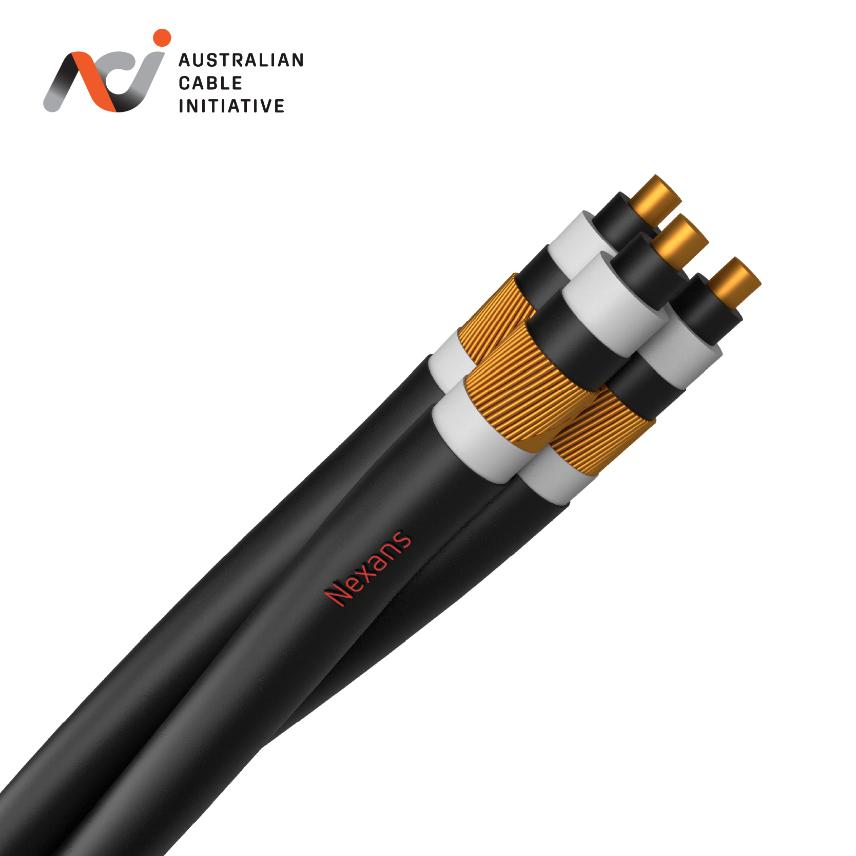

Aluminium conductors, triple extruded conductor screen, insulation and insulation screen, copper wire screened, water blocking taped, HDPE sheathed, laid up 'Triplex' cables.

Characteristics

Construction characteristics

Conductor material

Aluminum

Electrical characteristics

Rated Voltage Uo/U (Um)

Resources

Current carrying capacity table (in Amps) - 12.7/22kV URD Triplex

Conductor cross-section
mm²	Al	Al	Al	Al	Al
35.0	134.0	142.0	101.0	136.0	112.0
95.0	242.0	257.0	181.0	234.0	196.0
185.0	362.0	384.0	272.0	336.0	288.0
240.0	427.0	454.0	317.0	389.0	335.0

In air touching

In air spaced from surface

In air enclosed

Underground direct touching

Underground ducts
