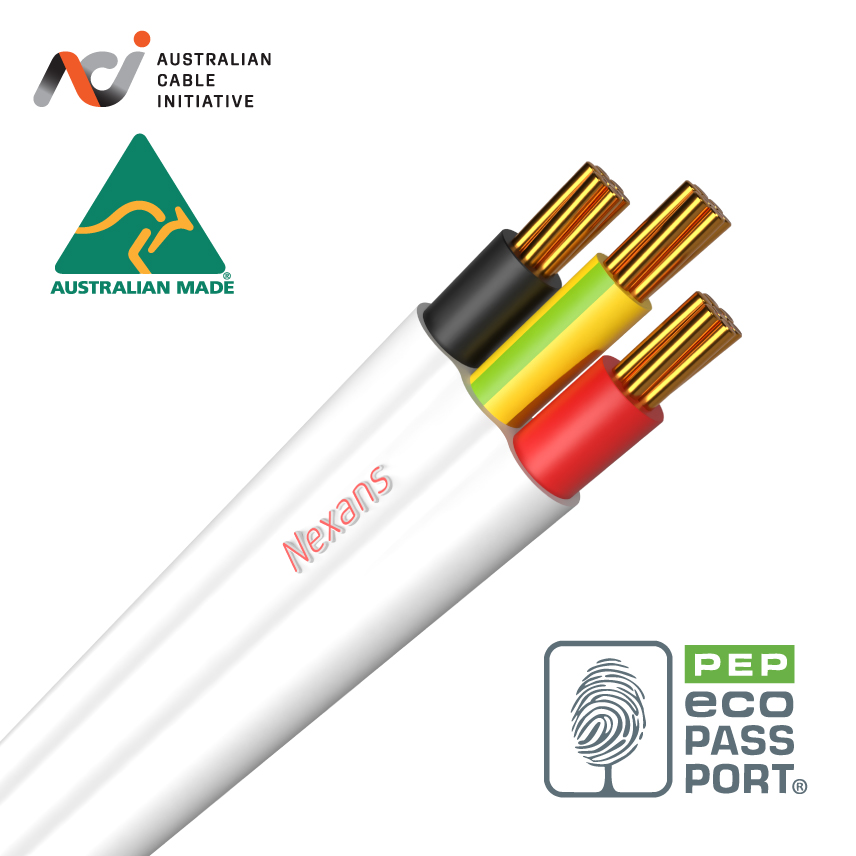

10mm 2C&E Flat White 500m
10mm 2C&E Flat White 500m
2X10mm2 + E PVC Flat Red Black Cores with White Sheath
Read more- Nexans ref. : CNCP13A5002WVAA
- Country ref. : CNCP13A5002WVAA
- EAN : 9322576247933
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.2
- 2 & 3 core+earth flat,
- 450/750V V-90 insulated,
- 90°C PVC sheathed to AS/NZS 5000.2,
- Copper conductors.
Twin & Earth, Flats, TPS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White / Black / Red
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Stranded copper
With Green/Yellow core
Yes
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Approximate weight
36.05 kg/100m
Cable length
500 m
Conductor cross-section
10 mm²
Earth conductor cross section
4 mm²
Neutral conductor section (when smaller)
- mm²
Nominal insulation thickness
1.0 mm
Nominal outer sheath thickness
1.2 mm
Nominal overall diameter
18.3 x 8.3
Number of cores
2
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
2.23 Ohm/km
Inductive reactance at 50Hz
0.134 Ohm/km
Insulation resistance at 20°C
9.9 MOhm.km
Max. DC resistance of the conductor at 20°C
1.83 Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Bending factor when installed
4 (xD)
Bending factor when laying
6 (xD)
