ENVIROLEX® TPS Low Fire Hazard (LSZH and non-migratory)

ENVIROLEX

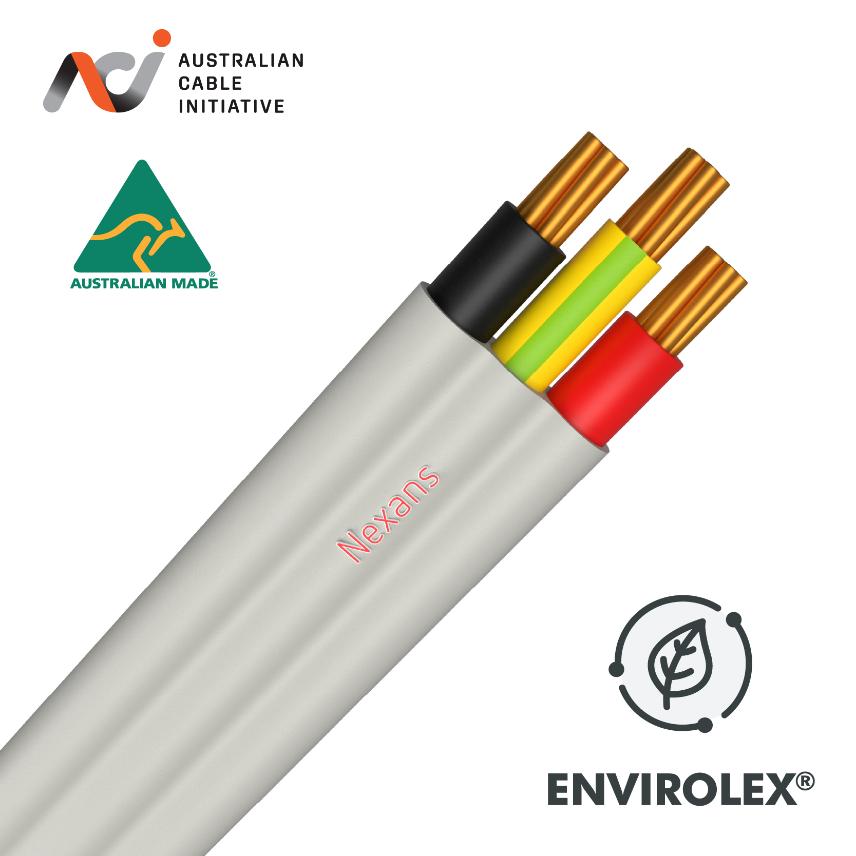

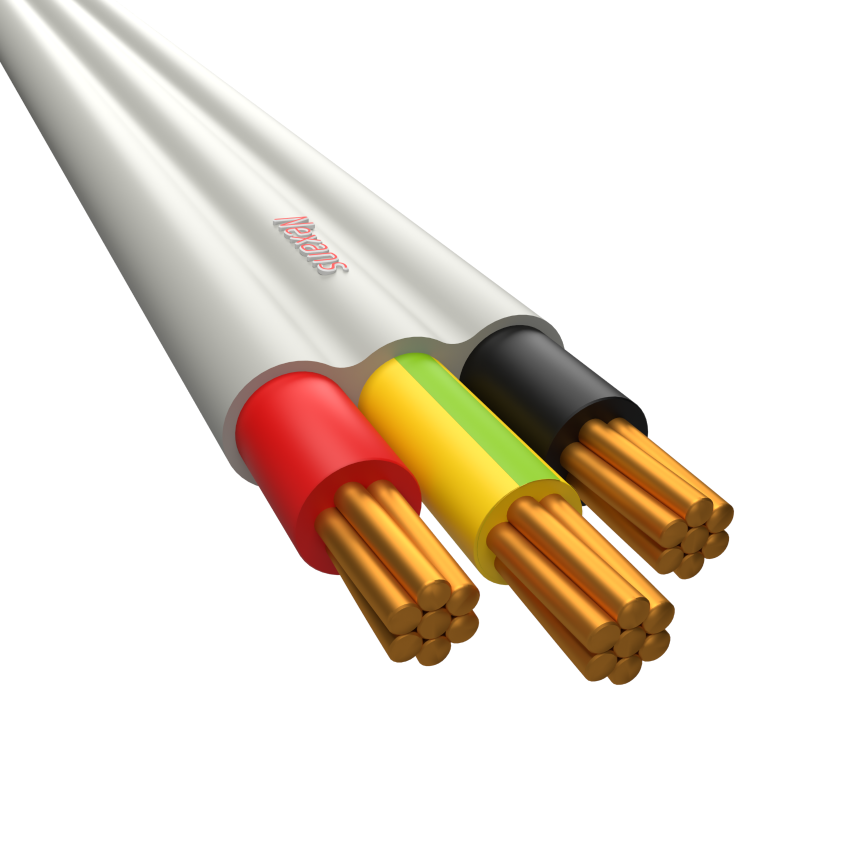

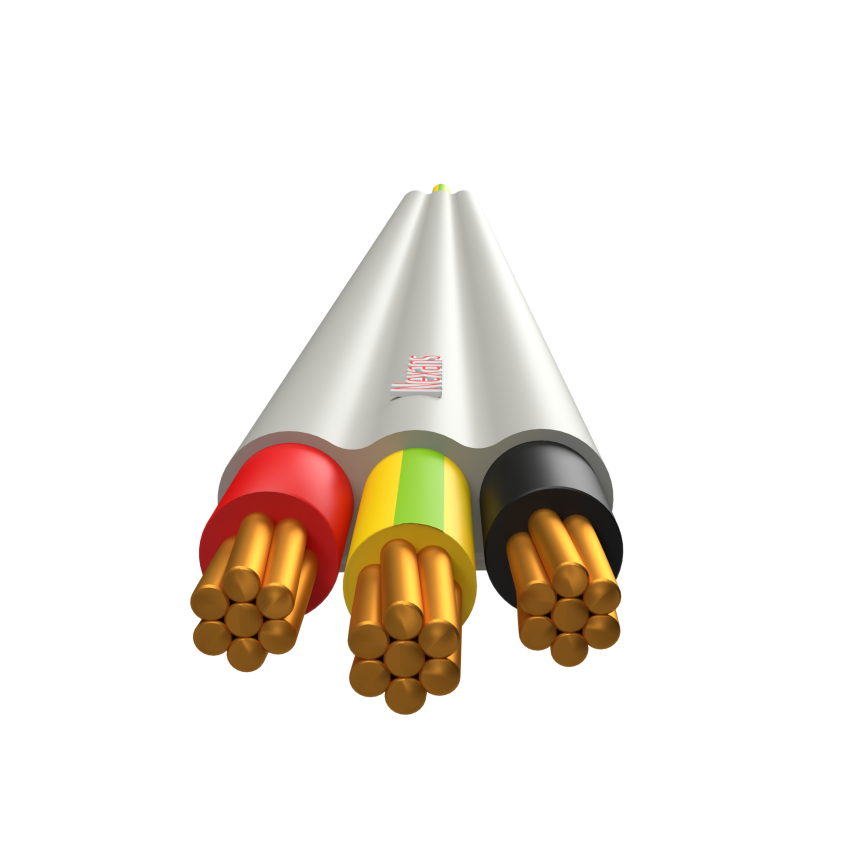

ENVIROLEX® Low Fire Hazard TPS (Flat). Cu conductors, X-HF-90 insulation, Grey HFS-90-TP sheath. 450/750 V. Made to AS/NZS 5000.2

Datasheet PDF

Download all documents

Products

products

Description

ENVIROLEX® flat is part of the Nexans Fire Safety Offer. As a Low Fire Hazard (LFH) cable, ENVIROLEX® is PVC-free, made with flame retardant compound and reduces toxic smoke emissions in the event of fire, allowing time for safe evacuation.

Application

Low Fire hazard cable designed for public buildings where safe evacuation time is a consideration (hospitals etc).
Suitable for general power and lighting construction purposes.
Domestic, commerical and industrial applications where low smoke or halogen free products are required.
Fixed applications.
Low Fire Hazard (low smoke halogen free cable LSZH/LS0H).
This product is non-migratory. It can be in contact with other plastic compounds such as polyurethane and polystyrene without any adverse effects. Suitable for use in cool rooms and in-contact with thermal insulation materials.

Characteristics

Construction characteristics

Colour

Grey

Conductor material

Copper

Type of conductor

Stranded copper

Conductor flexibility

Class 2

Conductor shape

Circular

Insulation

X-HF-90

Outer sheath

HFS-90-TP

With Green/Yellow core

Yes

Dimensional characteristics

Cable length

500 m

Number of cores

Number of earth cores

Electrical characteristics

Rated Voltage Uo/U

450/750 V

Rated Voltage Uo/U (Um)

Mechanical characteristics

Cable flexibility

Rigid

Usage characteristics

Max. conductor temperature in service

90 °C

Minimum operating temperature

-25 °C

Smoke density

Low

Resources

Documentation

pdf — 1.6 MB

Download

Envirolex Flat With Earth - Current carrying capacities single phase (in Amps)

Copper Conductor

Insulation XLPE

Maximum Conductor Temperature 90⁰C

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu	Cu	Cu
1.0	18.0	17.0	14.0	9.0	16.0	12.0	8.0	19.0
1.5	24.0	22.0	18.0	11.0	20.0	16.0	10.0	24.0
2.5	34.0	31.0	25.0	16.0	28.0	23.0	14.0	34.0
4.0	45.0	42.0	55.0	21.0	37.0	29.0	18.0	45.0
6.0	57.0	53.0	42.0	27.0	46.0	37.0	23.0	56.0
10.0	78.0	73.0	58.0	37.0	63.0	51.0	32.0	75.0
16.0	104.0	97.0	78.0	49.0	82.0	66.0	41.0	98.0

Unenclosed spaced

Unenclosed touching

Unenclosed and partially surrounded by thermal insulation

Unenclosed and completely surrounded by thermal insulation

Enclosed conduit in air

Enclosed, partially surrounded by thermal insulation

Enclosed, completely surrounded by thermal insulation

Underground ducts
