XLP 1X400 PC XLPPVC
XLP 1X400 PC XLPPVC
400mm2 XLPE / PVC SDI Black
Read more- Nexans ref. : BDBP28AA001CXNA
- Country ref. : BDBP28AA001CXNA
- EAN : 99319215277348
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1

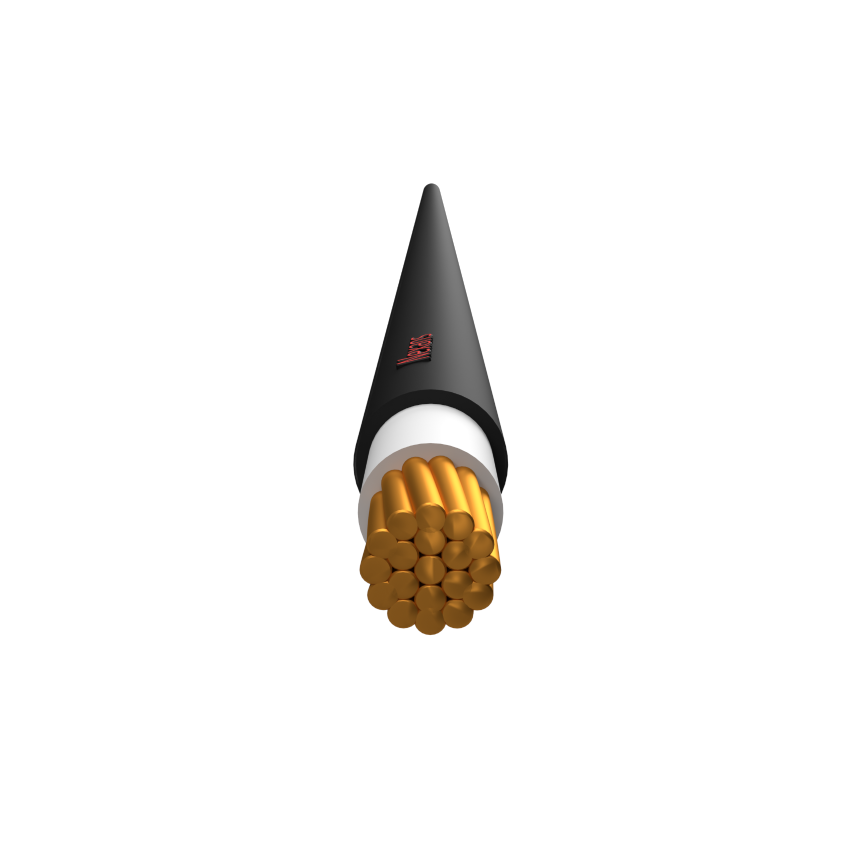

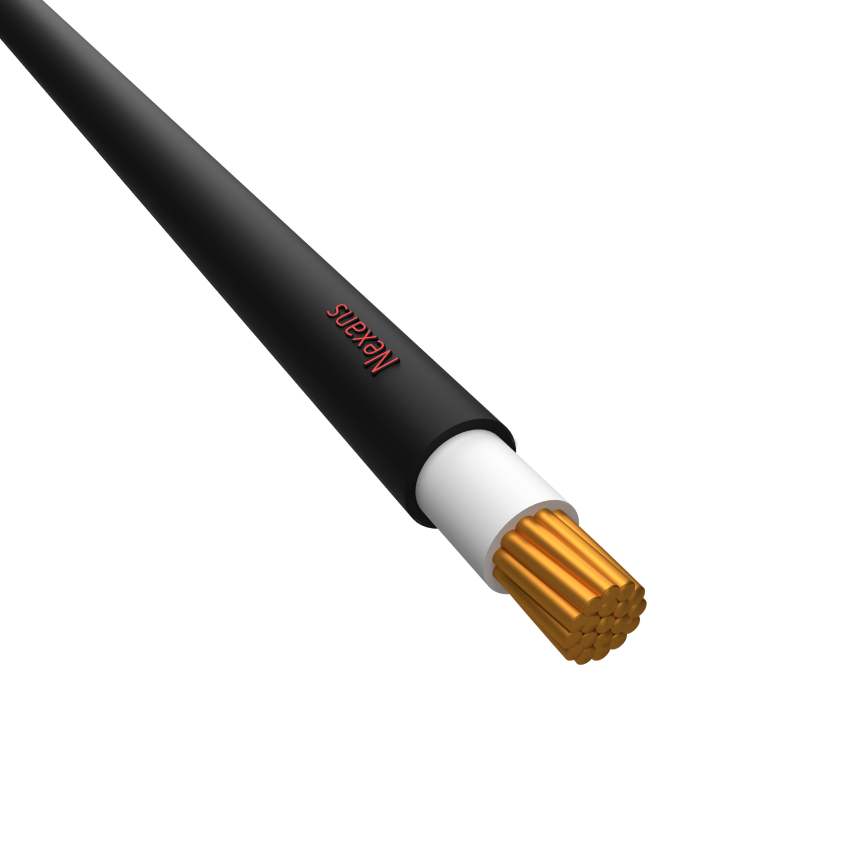

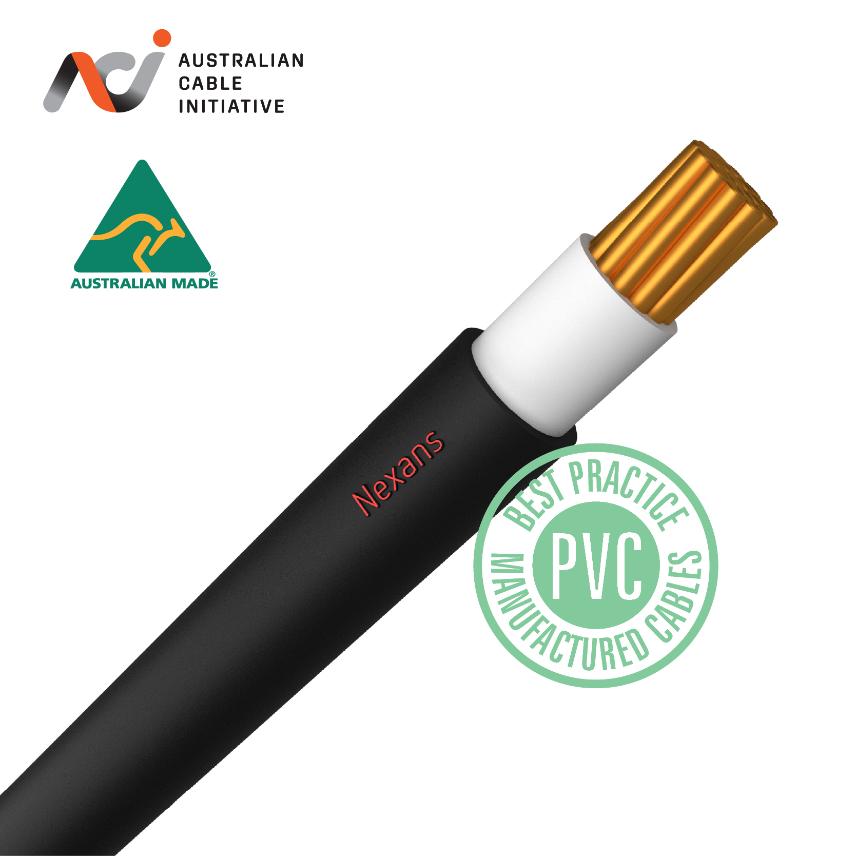

Single core XLPE SDI Cable
- Single core, 0.6/1kV X-90 insulated,
- PVC sheathed to AS/NZS 5000.1,
- Copper conductor, 90°C.
Mains; Submains
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Black
Conductor material
Copper
Type of conductor
Stranded copper
Conductor shape
Circular
Conductor flexibility
Class 2
Insulation
X-90
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Approximate weight
386.0 kg/100m
Cable length
- m
Conductor cross-section
400 mm²
Nominal insulation thickness
2.0 mm
Nominal outer sheath thickness
1.9 mm
Nominal overall diameter
33.3 mm
Number of cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
0.062 Ohm/km
Inductive reactance at 50Hz - flat touching
0.096 Ohm/km
Inductive reactance at 50Hz - trefoil
0.08 Ohm/km
Insulation resistance at 20°C
200 MOhm.km
Max. DC resistance of the conductor at 20°C
0.047 Ohm/km
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Maximum Pull Tension of Conductor
25 kN
Maximum Pulling Tension
4 kN
Usage characteristics
Usage characteristics
Minimum Bend Radius - During Installation (under Tension)
300 mm
Minimum Bend Radius - Installed
200 mm
Resources
Resources
XLPE/PVC single core - Current carrying capacity table single phase (in Amps)
Copper or Aluminium Conductor XLPE Insulation Maximum Conductor Temperature 90⁰C| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 400.0 | 923.0 | 723.0 | 836.0 | 660.0 | 708.0 | 559.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 808.0 | 638.0 | 653.0 | 516.0 | 706.0 | 553.0 |
|
Unenclosed spaced |
|
Unenclosed spaced from surface |
|
Unenclosed touching |
|
Enclosed conduit in air |
|
Thermal insulation, partially surrounded by thermal insulation |
|
Thermal Insulation, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts A - Underground Wiring Enclosure |
|
Underground ducts B - Individual Wiring Enclosure |
XLPE/PVC single core - Current carrying capacity table three phase (in Amps)
Copper or Aluminium Conductor XLPE Insulation Maximum Conductor Temperature 90⁰C| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 400.0 | 899.0 | 705.0 | 756.0 | 599.0 | 702.0 | 557.0 | 534.0 | 424.0 | 427.0 | 339.0 | 0.0 | 0.0 | 668.0 | 530.0 | 557.0 | 442.0 | 626.0 | 491.0 |
|
Unenclosed spaced |
|
Unenclosed spaced from surface |
|
Unenclosed touching |
|
Enclosed conduit in air |
|
Thermal insulation, partially surrounded by thermal insulation |
|
Thermal Insulation, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts A - Underground Wiring Enclosure |
|
Underground ducts B - Individual Wiring Enclosure |
