XLPE/PVC SWA 4C+E 0.6/1kV Circular
XLPE/PVC SWA 4C+E 0.6/1kV Circular

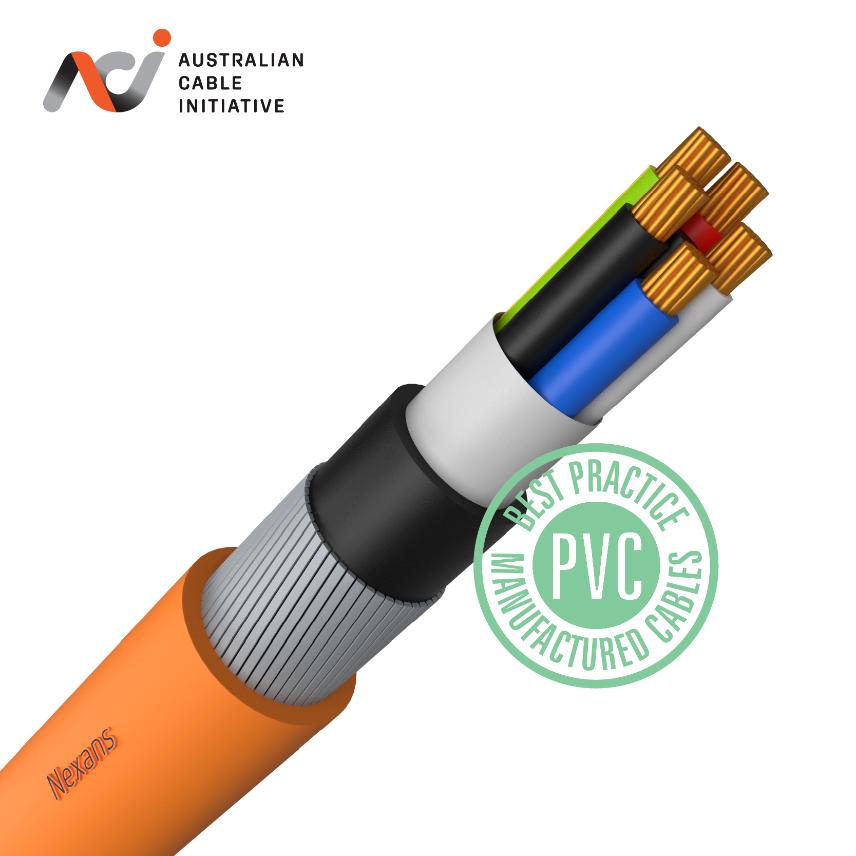

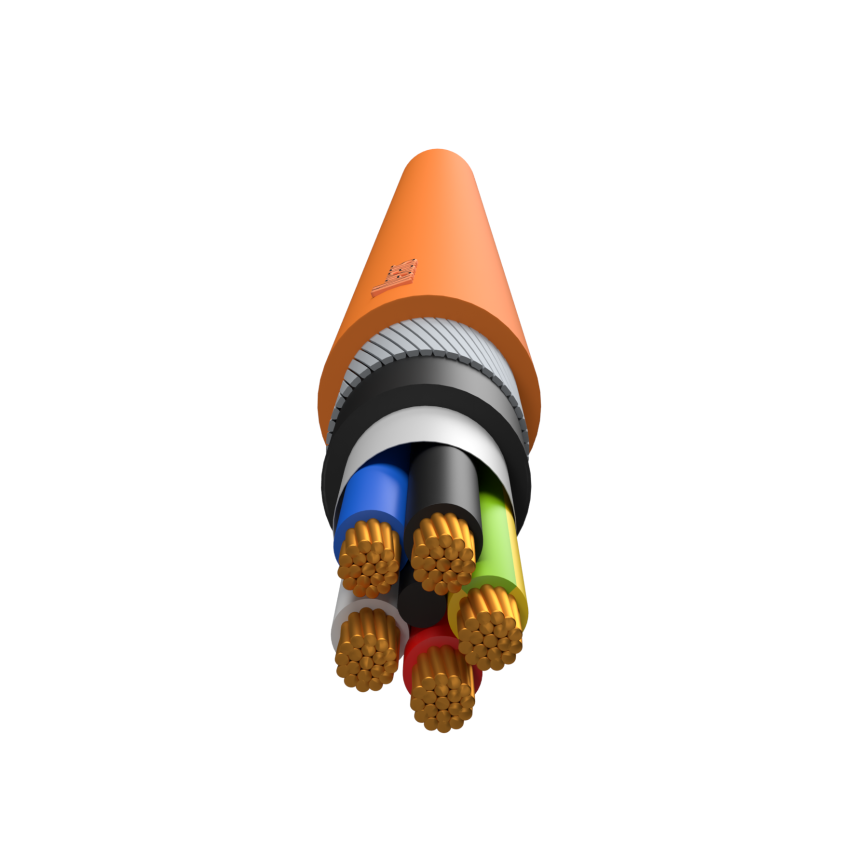

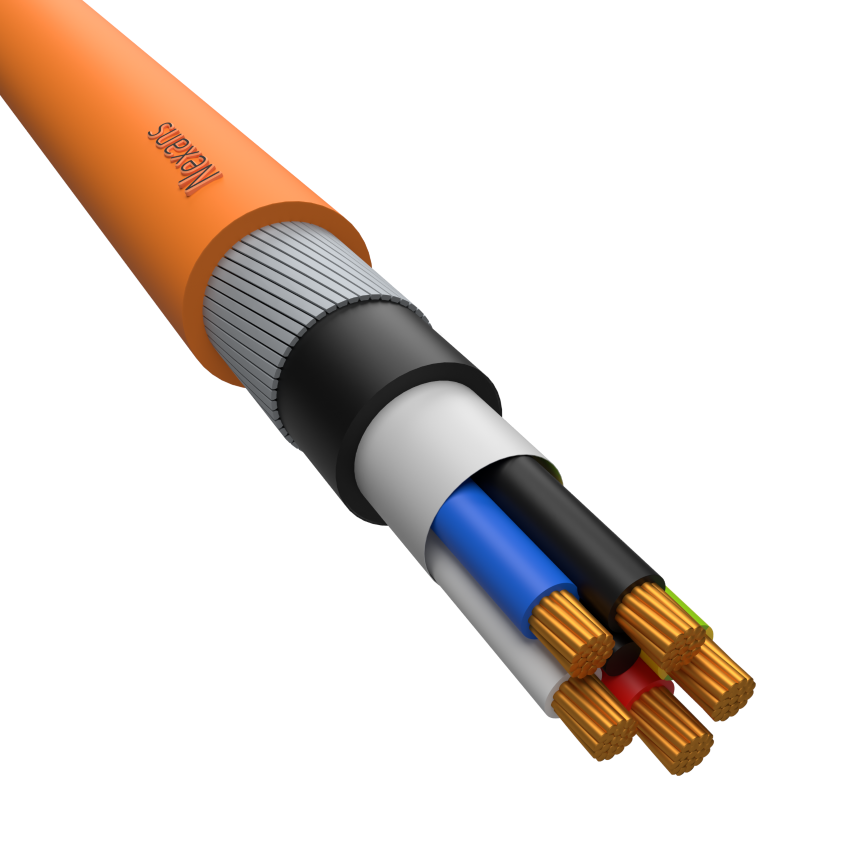

4 core+earth, circular, 0.6/1kV X-90 insulated, PVC bedded, steel wire armoured, PVC sheathed cable to AS/NZS 5000.1, copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.
Read more4x120mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMP23AA004OMAA - Country ref. HTMP23AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 120 mm²
- Earth conductor cross section: 35 mm²
- Maximum Pull Tension of Armour: 25 kN
- Maximum Pulling Tension: 6.4 kN
- Minimum Bend Radius - During Installation (under Tension): 960 mm
- Minimum Bend Radius - Installed: 640 mm
4x150mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMP24AA004OMAA - Country ref. HTMP24AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 150 mm²
- Earth conductor cross section: 50 mm²
- Maximum Pull Tension of Armour: 25 kN
- Maximum Pulling Tension: 6.9 kN
- Minimum Bend Radius - During Installation (under Tension): 1040 mm
- Minimum Bend Radius - Installed: 690 mm
4x16mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMP15AA004OMAA - Country ref. HTMP15AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Maximum Pull Tension of Armour: 9 kN
- Maximum Pulling Tension: 3.1 kN
- Minimum Bend Radius - During Installation (under Tension): 460 mm
- Minimum Bend Radius - Installed: 310 mm
4x25mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMC17AA004OMAA - Country ref. HTMC17AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Maximum Pull Tension of Armour: 11 kN
- Maximum Pulling Tension: 3.4 kN
- Minimum Bend Radius - During Installation (under Tension): 510 mm
- Minimum Bend Radius - Installed: 340 mm
4x35mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMC18AA004OMAA - Country ref. HTMC18AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Earth conductor cross section: 10 mm²
- Maximum Pull Tension of Armour: 12 kN
- Maximum Pulling Tension: 3.7 kN
- Minimum Bend Radius - During Installation (under Tension): 560 mm
- Minimum Bend Radius - Installed: 370 mm
4x50mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMC19AA004OMAA - Country ref. HTMC19AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 50 mm²
- Earth conductor cross section: 16 mm²
- Maximum Pull Tension of Armour: 17 kN
- Maximum Pulling Tension: 4.3 kN
- Minimum Bend Radius - During Installation (under Tension): 640 mm
- Minimum Bend Radius - Installed: 430 mm
4x70mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMC20AA004OMAA - Country ref. HTMC20AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 70 mm²
- Earth conductor cross section: 25 mm²
- Maximum Pull Tension of Armour: 20 kN
- Maximum Pulling Tension: 4.9 kN
- Minimum Bend Radius - During Installation (under Tension): 740 mm
- Minimum Bend Radius - Installed: 490 mm
4x95mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. HTMC22AA004OMAA - Country ref. HTMC22AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Earth conductor cross section: 25 mm²
- Maximum Pull Tension of Armour: 23 kN
- Maximum Pulling Tension: 5.5 kN
- Minimum Bend Radius - During Installation (under Tension): 830 mm
- Minimum Bend Radius - Installed: 550 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- 4 core+earth,
- Circular,
- 0.6/1kV
- X-90 insulated,
- PVC bedded,
- Steel wire armoured,
- PVC sheathed cable to AS/NZS 5000.1,
- Copper conductors, 90°C.
Orange Circular; Circs; Armoured
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Resources
Resources
XLPE/PVC SWA Circular 3C+E and 4C+E - Current carrying capacities three phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
Conductor cross-section |
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.0 | 16.0 | 14.0 | 12.0 | 7.0 | 13.0 | 10.0 | 6.0 | 22.0 | 16.0 |
1.5 | 20.0 | 19.0 | 15.0 | 9.0 | 16.0 | 13.0 | 8.0 | 28.0 | 20.0 |
2.5 | 28.0 | 26.0 | 21.0 | 13.0 | 24.0 | 19.0 | 12.0 | 39.0 | 29.0 |
4.0 | 38.0 | 35.0 | 28.0 | 18.0 | 30.0 | 24.0 | 15.0 | 51.0 | 37.0 |
6.0 | 48.0 | 45.0 | 36.0 | 22.0 | 38.0 | 30.0 | 19.0 | 63.0 | 46.0 |
10.0 | 66.0 | 62.0 | 49.0 | 31.0 | 53.0 | 42.0 | 26.0 | 85.0 | 63.0 |
16.0 | 88.0 | 83.0 | 66.0 | 41.0 | 68.0 | 55.0 | 34.0 | 110.0 | 81.0 |
25.0 | 119.0 | 111.0 | 89.0 | 56.0 | 91.0 | 73.0 | 46.0 | 143.0 | 107.0 |
35.0 | 147.0 | 137.0 | 110.0 | 69.0 | 114.0 | 91.0 | 57.0 | 172.0 | 130.0 |
50.0 | 180.0 | 168.0 | 134.0 | 0.0 | 136.0 | 108.0 | 0.0 | 204.0 | 155.0 |
70.0 | 229.0 | 213.0 | 170.0 | 0.0 | 173.0 | 138.0 | 0.0 | 251.0 | 193.0 |
95.0 | 283.0 | 263.0 | 210.0 | 0.0 | 209.0 | 167.0 | 0.0 | 302.0 | 233.0 |
120.0 | 330.0 | 306.0 | 245.0 | 0.0 | 246.0 | 197.0 | 0.0 | 344.0 | 270.0 |
150.0 | 377.0 | 350.0 | 280.0 | 0.0 | 277.0 | 222.0 | 0.0 | 385.0 | 304.0 |
185.0 | 436.0 | 404.0 | 323.0 | 0.0 | 322.0 | 257.0 | 0.0 | 435.0 | 348.0 |
240.0 | 517.0 | 479.0 | 383.0 | 0.0 | 386.0 | 309.0 | 0.0 | 504.0 | 411.0 |
300.0 | 594.0 | 549.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 567.0 | 463.0 |
400.0 | 685.0 | 632.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 640.0 | 524.0 |
500.0 | 779.0 | 718.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 714.0 | 601.0 |
Unenclosed spaced |
Unenclosed touching |
Unenclosed and partially surrounded by thermal insulation |
Unenclosed and completely surrounded by thermal insulation |
Enclosed conduit in air |
Enclosed, partially surrounded by thermal insulation |
Enclosed, completely surrounded by thermal insulation |
Buried direct |
Underground Wiring Enclosure |
Selling & delivery Information
Other colours are available on request.
