XLPE/PVC SWA 2C+E & 3C+E 0.6/1kV Circular
XLPE/PVC SWA 2C+E & 3C+E 0.6/1kV Circular

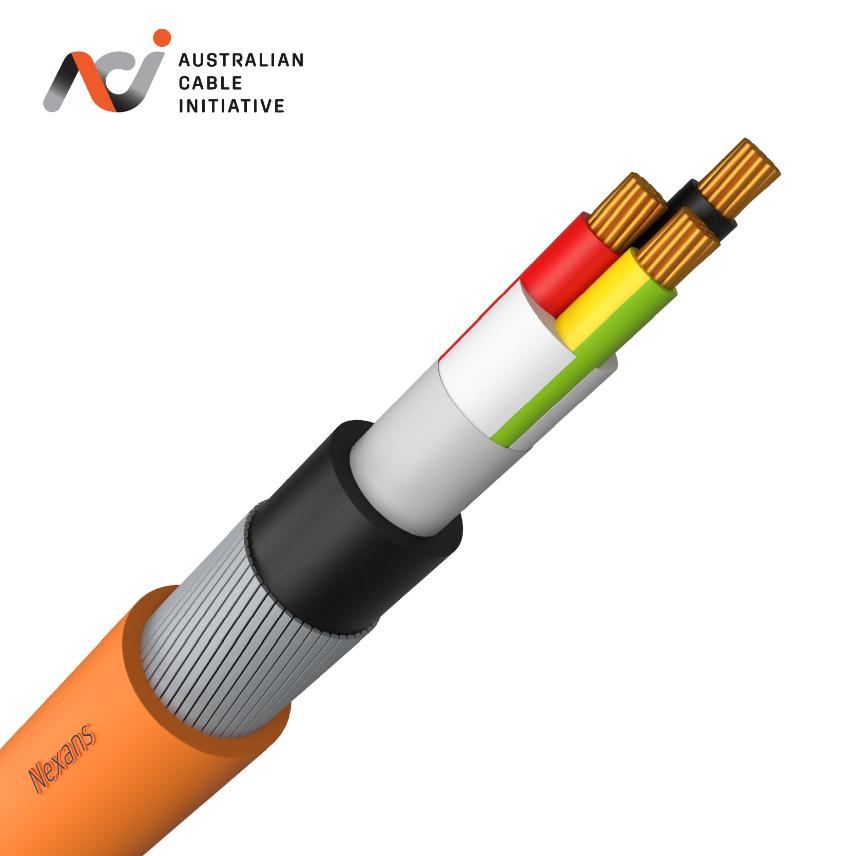

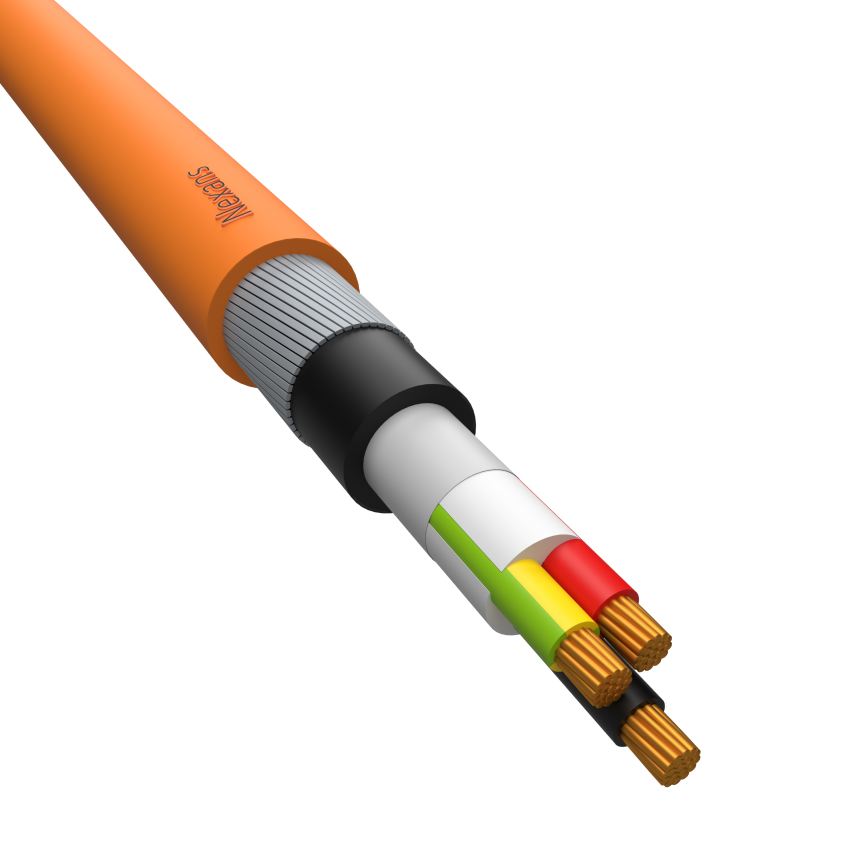

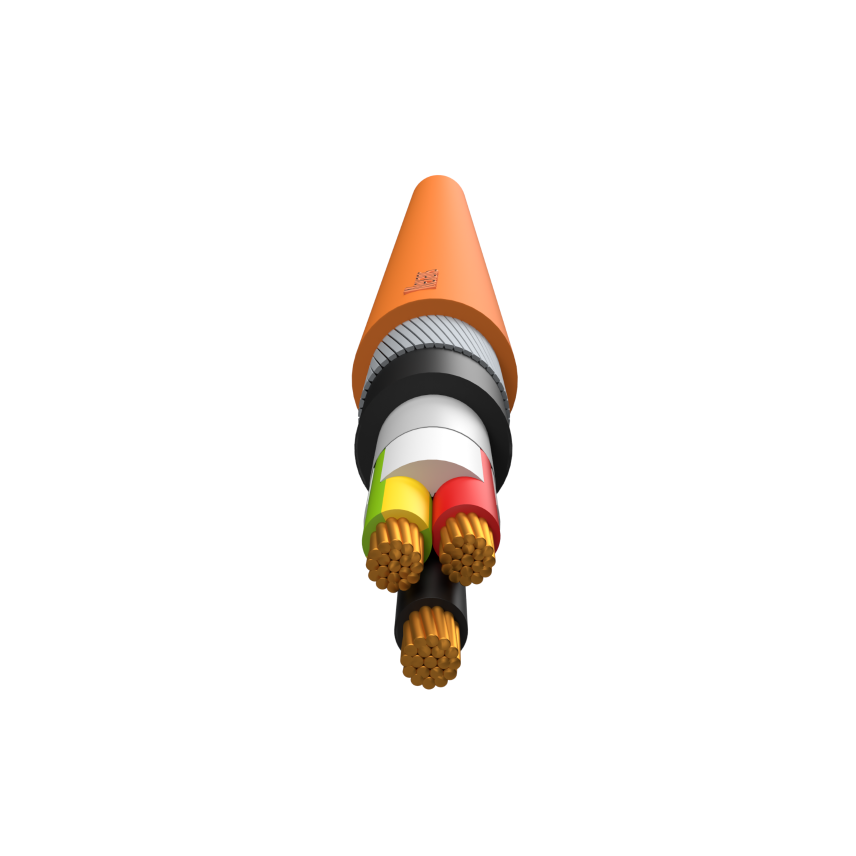

2 & 3 core+earth, circular, 0.6/1kV X-90 insulated, PVC bedded, steel wire armoured, PVC sheathed cable to AS/NZS 5000.1, copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.
Read more3X120mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMP23AA003OMAA - Country ref. FTMP23AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 120 mm²
- Maximum Pull Tension of Armour: 24 kN
- Maximum Pulling Tension: 5.7 kN
- Minimum Bend Radius - During Installation (under Tension): 850 mm
- Minimum Bend Radius - Installed: 570 mm
3X150mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMP24AA003OMAA - Country ref. FTMP24AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 150 mm²
- Maximum Pull Tension of Armour: 25 kN
- Maximum Pulling Tension: 6.3 kN
- Minimum Bend Radius - During Installation (under Tension): 950 mm
- Minimum Bend Radius - Installed: 630 mm
3X185mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMP25AA003OMAA - Country ref. FTMP25AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 185 mm²
- Maximum Pull Tension of Armour: 25 kN
- Maximum Pulling Tension: 7 kN
- Minimum Bend Radius - During Installation (under Tension): 1040 mm
- Minimum Bend Radius - Installed: 700 mm
3X25mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMC17AA003OMAA - Country ref. FTMC17AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Maximum Pull Tension of Armour: 10 kN
- Maximum Pulling Tension: 3.1 kN
- Minimum Bend Radius - During Installation (under Tension): 470 mm
- Minimum Bend Radius - Installed: 310 mm
3X25mm2 + E XLPE/PVC SWA Circular Orange 500m
Nexans ref. FTMC17A5003OMAA - Country ref. FTMC17A5003OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Maximum Pull Tension of Armour: 10 kN
- Maximum Pulling Tension: 3.1 kN
- Minimum Bend Radius - During Installation (under Tension): 470 mm
- Minimum Bend Radius - Installed: 310 mm
3X35mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMC18AA003OMAA - Country ref. FTMC18AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Maximum Pull Tension of Armour: 11 kN
- Maximum Pulling Tension: 3.4 kN
- Minimum Bend Radius - During Installation (under Tension): 510 mm
- Minimum Bend Radius - Installed: 340 mm
3X35mm2 + E XLPE/PVC SWA Circular Orange 500m
Nexans ref. FTMC18A5003OMAA - Country ref. FTMC18A5003OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Maximum Pull Tension of Armour: 11 kN
- Maximum Pulling Tension: 3.4 kN
- Minimum Bend Radius - During Installation (under Tension): 510 mm
- Minimum Bend Radius - Installed: 340 mm
3X50mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMC19AA003OMAA - Country ref. FTMC19AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 50 mm²
- Maximum Pull Tension of Armour: 12 kN
- Maximum Pulling Tension: 3.8 kN
- Minimum Bend Radius - During Installation (under Tension): 570 mm
- Minimum Bend Radius - Installed: 380 mm
3X50mm2 + E XLPE/PVC SWA Circular Orange 500m
Nexans ref. FTMC19A5003OMAA - Country ref. FTMC19A5003OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 50 mm²
- Maximum Pull Tension of Armour: 12 kN
- Maximum Pulling Tension: 3.8 kN
- Minimum Bend Radius - During Installation (under Tension): 570 mm
- Minimum Bend Radius - Installed: 380 mm
3X70mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMC20AA003OMAA - Country ref. FTMC20AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 70 mm²
- Maximum Pull Tension of Armour: 18 kN
- Maximum Pulling Tension: 4.5 kN
- Minimum Bend Radius - During Installation (under Tension): 670 mm
- Minimum Bend Radius - Installed: 450 mm
3X70mm2 + E XLPE/PVC SWA Circular Orange 500m
Nexans ref. FTMC20A5003OMAA - Country ref. FTMC20A5003OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 70 mm²
- Maximum Pull Tension of Armour: 18 kN
- Maximum Pulling Tension: 4.5 kN
- Minimum Bend Radius - During Installation (under Tension): 670 mm
- Minimum Bend Radius - Installed: 450 mm
3X95mm2 + E XLPE/PVC SWA Circular Orange
Nexans ref. FTMC22AA003OMAA - Country ref. FTMC22AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Maximum Pull Tension of Armour: 21 kN
- Maximum Pulling Tension: 5.1 kN
- Minimum Bend Radius - During Installation (under Tension): 760 mm
- Minimum Bend Radius - Installed: 510 mm
3X95mm2 + E XLPE/PVC SWA Circular Orange 500m
Nexans ref. FTMC22A5003OMAA - Country ref. FTMC22A5003OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Maximum Pull Tension of Armour: 21 kN
- Maximum Pulling Tension: 5.1 kN
- Minimum Bend Radius - During Installation (under Tension): 760 mm
- Minimum Bend Radius - Installed: 510 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- 2 & 3 core+earth,
- Circular,
- 0.6/1kV
- X-90 insulated,
- PVC bedded,
- Steel wire armoured,
- PVC sheathed cable to AS/NZS 5000.1,
- Copper conductors, 90°C.
Orange Circulars; Circs; Armoured
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
XLPE/PVC SWA Circular (2 Core+E) - Current carrying capacities single phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
Conductor cross-section |
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.0 | 18.0 | 17.0 | 14.0 | 9.0 | 16.0 | 12.0 | 8.0 | 26.0 | 19.0 |
1.5 | 24.0 | 22.0 | 18.0 | 11.0 | 20.0 | 16.0 | 10.0 | 33.0 | 24.0 |
2.5 | 34.0 | 31.0 | 25.0 | 16.0 | 28.0 | 23.0 | 14.0 | 46.0 | 34.0 |
4.0 | 45.0 | 42.0 | 33.0 | 21.0 | 37.0 | 29.0 | 18.0 | 60.0 | 45.0 |
6.0 | 57.0 | 53.0 | 42.0 | 27.0 | 46.0 | 37.0 | 23.0 | 75.0 | 56.0 |
10.0 | 78.0 | 73.0 | 58.0 | 36.0 | 63.0 | 51.0 | 32.0 | 101.0 | 75.0 |
16.0 | 104.0 | 97.0 | 78.0 | 49.0 | 82.0 | 66.0 | 41.0 | 132.0 | 98.0 |
25.0 | 140.0 | 131.0 | 105.0 | 66.0 | 110.0 | 88.0 | 55.0 | 170.0 | 128.0 |
35.0 | 173.0 | 162.0 | 129.0 | 81.0 | 132.0 | 106.0 | 66.0 | 205.0 | 154.0 |
50.0 | 211.0 | 197.0 | 158.0 | 0.0 | 162.0 | 130.0 | 0.0 | 244.0 | 185.0 |
70.0 | 268.0 | 250.0 | 200.0 | 0.0 | 200.0 | 160.0 | 0.0 | 300.0 | 228.0 |
95.0 | 331.0 | 309.0 | 247.0 | 0.0 | 250.0 | 200.0 | 0.0 | 360.0 | 279.0 |
120.0 | 385.0 | 359.0 | 287.0 | 0.0 | 285.0 | 228.0 | 0.0 | 410.0 | 318.0 |
150.0 | 441.0 | 411.0 | 328.0 | 0.0 | 332.0 | 265.0 | 0.0 | 460.0 | 365.0 |
185.0 | 509.0 | 473.0 | 379.0 | 0.0 | 377.0 | 301.0 | 0.0 | 520.0 | 413.0 |
240.0 | 604.0 | 562.0 | 449.0 | 0.0 | 448.0 | 358.0 | 0.0 | 603.0 | 485.0 |
300.0 | 694.0 | 645.0 | 516.0 | 0.0 | 523.0 | 418.0 | 0.0 | 680.0 | 558.0 |
400.0 | 804.0 | 745.0 | 596.0 | 0.0 | 596.0 | 477.0 | 0.0 | 771.0 | 633.0 |
500.0 | 915.0 | 848.0 | 678.0 | 0.0 | 695.0 | 556.0 | 0.0 | 862.0 | 728.0 |
Unenclosed spaced |
Unenclosed touching |
Unenclosed and partially surrounded by thermal insulation |
Unenclosed and completely surrounded by thermal insulation |
Enclosed conduit in air |
Enclosed, partially surrounded by thermal insulation |
Enclosed, completely surrounded by thermal insulation |
Buried direct |
Underground Wiring Enclosure |
XLPE/PVC SWA Circular 3C+E and 4C+E - Current carrying capacities three phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
Conductor cross-section |
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
1.0 | 16.0 | 14.0 | 12.0 | 7.0 | 13.0 | 10.0 | 6.0 | 22.0 | 16.0 |
1.5 | 20.0 | 19.0 | 15.0 | 9.0 | 16.0 | 13.0 | 8.0 | 28.0 | 20.0 |
2.5 | 28.0 | 26.0 | 21.0 | 13.0 | 24.0 | 19.0 | 12.0 | 39.0 | 29.0 |
4.0 | 38.0 | 35.0 | 28.0 | 18.0 | 30.0 | 24.0 | 15.0 | 51.0 | 37.0 |
6.0 | 48.0 | 45.0 | 36.0 | 22.0 | 38.0 | 30.0 | 19.0 | 63.0 | 46.0 |
10.0 | 66.0 | 62.0 | 49.0 | 31.0 | 53.0 | 42.0 | 26.0 | 85.0 | 63.0 |
16.0 | 88.0 | 83.0 | 66.0 | 41.0 | 68.0 | 55.0 | 34.0 | 110.0 | 81.0 |
25.0 | 119.0 | 111.0 | 89.0 | 56.0 | 91.0 | 73.0 | 46.0 | 143.0 | 107.0 |
35.0 | 147.0 | 137.0 | 110.0 | 69.0 | 114.0 | 91.0 | 57.0 | 172.0 | 130.0 |
50.0 | 180.0 | 168.0 | 134.0 | 0.0 | 136.0 | 108.0 | 0.0 | 204.0 | 155.0 |
70.0 | 229.0 | 213.0 | 170.0 | 0.0 | 173.0 | 138.0 | 0.0 | 251.0 | 193.0 |
95.0 | 283.0 | 263.0 | 210.0 | 0.0 | 209.0 | 167.0 | 0.0 | 302.0 | 233.0 |
120.0 | 330.0 | 306.0 | 245.0 | 0.0 | 246.0 | 197.0 | 0.0 | 344.0 | 270.0 |
150.0 | 377.0 | 350.0 | 280.0 | 0.0 | 277.0 | 222.0 | 0.0 | 385.0 | 304.0 |
185.0 | 436.0 | 404.0 | 323.0 | 0.0 | 322.0 | 257.0 | 0.0 | 435.0 | 348.0 |
240.0 | 517.0 | 479.0 | 383.0 | 0.0 | 386.0 | 309.0 | 0.0 | 504.0 | 411.0 |
300.0 | 594.0 | 549.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 567.0 | 463.0 |
400.0 | 685.0 | 632.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 640.0 | 524.0 |
500.0 | 779.0 | 718.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 714.0 | 601.0 |
Unenclosed spaced |
Unenclosed touching |
Unenclosed and partially surrounded by thermal insulation |
Unenclosed and completely surrounded by thermal insulation |
Enclosed conduit in air |
Enclosed, partially surrounded by thermal insulation |
Enclosed, completely surrounded by thermal insulation |
Buried direct |
Underground Wiring Enclosure |
Selling & delivery Information
Other colours are available on request.
