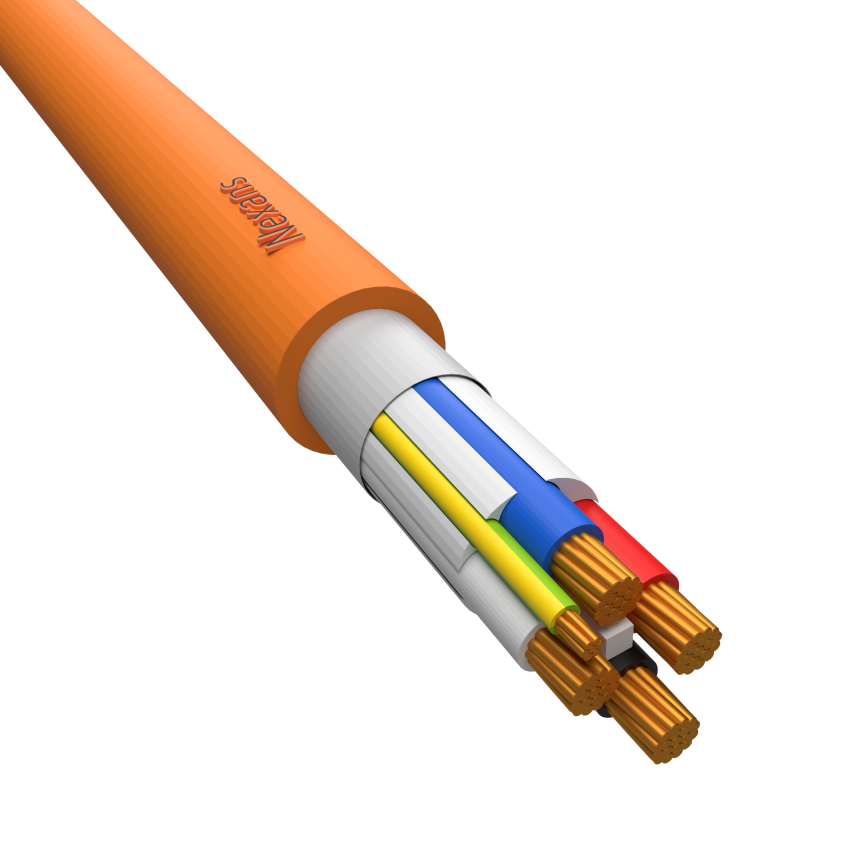

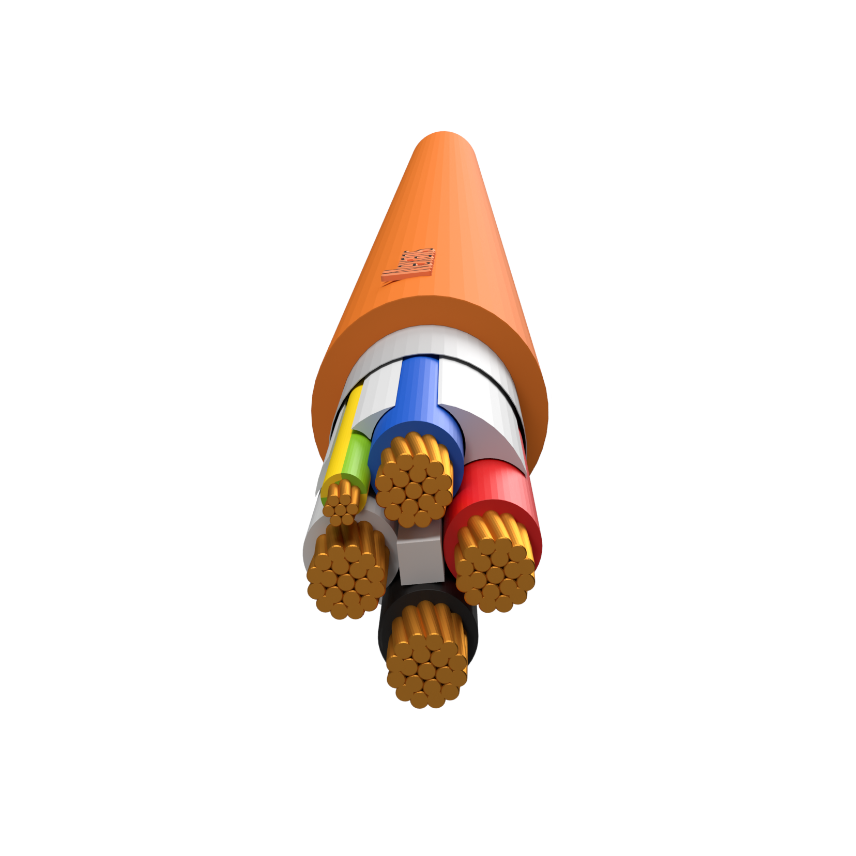

XLPE/PVC 4C+E 0.6/1kV Circular
XLPE/PVC 4C+E 0.6/1kV Circular
4 core+earth, circular, 0.6/1kV X-90 insulated, PVC sheathed to AS/NZS 5000.1, Copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.
Read more120mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHP23AA004OMAA - Country ref. HTHP23AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 120 mm²
- Conductor AC resistance at 50 Hz: 0.197 Ohm/km
- Inductive reactance at 50Hz: 0.071 Ohm/km
- Insulation resistance at 20°C : 300 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Maximum Pulling Tension: 5.4 kN
- Minimum Bend Radius - During Installation (under Tension): 410 mm
- Minimum Bend Radius - Installed: 270 mm
150mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHP24AA004OMAA - Country ref. HTHP24AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 150 mm²
- Conductor AC resistance at 50 Hz: 0.16 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 320 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Maximum Pulling Tension: 5.9 kN
- Minimum Bend Radius - During Installation (under Tension): 450 mm
- Minimum Bend Radius - Installed: 300 mm
16mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHP15AA004OMAA - Country ref. HTHP15AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 16 mm²
- Conductor AC resistance at 50 Hz: 1.47 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 520 MOhm.km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Maximum Pulling Tension: 2.4 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 80 mm
185mm2 CU 4 Core + EarthXLPE/PVC Orange Circular
Nexans ref. HTHP25AA004OMAA - Country ref. HTHP25AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 185 mm²
- Conductor AC resistance at 50 Hz: 0.129 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 320 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Maximum Pulling Tension: 6.7 kN
- Minimum Bend Radius - During Installation (under Tension): 500 mm
- Minimum Bend Radius - Installed: 330 mm
240mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHP26AA004OMAA - Country ref. HTHP26AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 240 mm²
- Conductor AC resistance at 50 Hz: 0.1 Ohm/km
- Inductive reactance at 50Hz: 0.071 Ohm/km
- Insulation resistance at 20°C : 310 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Maximum Pulling Tension: 7.6 kN
- Minimum Bend Radius - During Installation (under Tension): 760 mm
- Minimum Bend Radius - Installed: 510 mm
25mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHC17AA004OMAA - Country ref. HTHC17AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Conductor AC resistance at 50 Hz: 0.927 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 490 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Maximum Pulling Tension: 2.7 kN
- Minimum Bend Radius - During Installation (under Tension): 270 mm
- Minimum Bend Radius - Installed: 180 mm
25mm2 Cu 4 Core + Earth XLPE/PVC Orange Circular 500m
Nexans ref. HTHC17A5004OMAA - Country ref. HTHC17A5004OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Conductor AC resistance at 50 Hz: 0.927 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 490 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Maximum Pulling Tension: 2.7 kN
- Minimum Bend Radius - During Installation (under Tension): 270 mm
- Minimum Bend Radius - Installed: 180 mm
35mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHC18AA004OMAA - Country ref. HTHC18AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Conductor AC resistance at 50 Hz: 0.669 Ohm/km
- Inductive reactance at 50Hz: 0.079 Ohm/km
- Insulation resistance at 20°C : 430 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Maximum Pulling Tension: 3.1 kN
- Minimum Bend Radius - During Installation (under Tension): 310 mm
- Minimum Bend Radius - Installed: 200 mm
35mm2 CU 4 Core + Earth XLPE/PVC Orange Circular 500m
Nexans ref. HTHC18A5004OMAA - Country ref. HTHC18A5004OMAA
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Conductor AC resistance at 50 Hz: 0.669 Ohm/km
- Inductive reactance at 50Hz: 0.079 Ohm/km
- Insulation resistance at 20°C : 430 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Maximum Pulling Tension: 3.1 kN
- Minimum Bend Radius - During Installation (under Tension): 310 mm
- Minimum Bend Radius - Installed: 200 mm
50mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHC19AA004OMAA - Country ref. HTHC19AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 50 mm²
- Conductor AC resistance at 50 Hz: 0.494 Ohm/km
- Inductive reactance at 50Hz: 0.075 Ohm/km
- Insulation resistance at 20°C : 410 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Maximum Pulling Tension: 3.5 kN
- Minimum Bend Radius - During Installation (under Tension): 350 mm
- Minimum Bend Radius - Installed: 230 mm
70mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHC20AA004OMAA - Country ref. HTHC20AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 70 mm²
- Conductor AC resistance at 50 Hz: 0.343 Ohm/km
- Inductive reactance at 50Hz: 0.074 Ohm/km
- Insulation resistance at 20°C : 380 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Maximum Pulling Tension: 4.1 kN
- Minimum Bend Radius - During Installation (under Tension): 410 mm
- Minimum Bend Radius - Installed: 270 mm
95mm2 CU 4 Core + Earth XLPE/PVC Orange Circular
Nexans ref. HTHC22AA004OMAA - Country ref. HTHC22AA004OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Conductor AC resistance at 50 Hz: 0.248 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 320 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Maximum Pulling Tension: 4.7 kN
- Minimum Bend Radius - During Installation (under Tension): 470 mm
- Minimum Bend Radius - Installed: 310 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- 4 core+earth, circular,
- 0.6/1kV X-90 insulated,
- PVC sheathed to AS/NZS 5000.1
- Copper conductors, 90°C.
Note: Earth cores smaller than 25mm² are not compacted.
Orange Circular; Circs
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Orange
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-90
Outer sheath
PVC
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Number of cores
5
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Resources
Resources
Documentation
XLPE/PVC Circular 3C+E and 4C+E - Current carrying capacities three phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 16.0 | 14.0 | 12.0 | 7.0 | 13.0 | 10.0 | 6.0 | 22.0 | 16.0 |
| 1.5 | 20.0 | 19.0 | 15.0 | 9.0 | 16.0 | 13.0 | 8.0 | 28.0 | 20.0 |
| 2.5 | 28.0 | 26.0 | 21.0 | 13.0 | 24.0 | 19.0 | 12.0 | 39.0 | 29.0 |
| 4.0 | 38.0 | 35.0 | 28.0 | 18.0 | 30.0 | 24.0 | 15.0 | 51.0 | 37.0 |
| 6.0 | 48.0 | 45.0 | 36.0 | 22.0 | 38.0 | 30.0 | 19.0 | 63.0 | 46.0 |
| 10.0 | 66.0 | 62.0 | 49.0 | 31.0 | 53.0 | 42.0 | 26.0 | 85.0 | 63.0 |
| 16.0 | 88.0 | 83.0 | 66.0 | 41.0 | 68.0 | 55.0 | 34.0 | 110.0 | 81.0 |
| 25.0 | 119.0 | 111.0 | 89.0 | 56.0 | 91.0 | 73.0 | 46.0 | 143.0 | 107.0 |
| 35.0 | 147.0 | 137.0 | 110.0 | 69.0 | 114.0 | 91.0 | 57.0 | 172.0 | 130.0 |
| 50.0 | 180.0 | 168.0 | 134.0 | 0.0 | 136.0 | 108.0 | 0.0 | 204.0 | 155.0 |
| 70.0 | 229.0 | 213.0 | 170.0 | 0.0 | 173.0 | 138.0 | 0.0 | 251.0 | 193.0 |
| 95.0 | 283.0 | 263.0 | 210.0 | 0.0 | 209.0 | 167.0 | 0.0 | 302.0 | 233.0 |
| 120.0 | 330.0 | 306.0 | 245.0 | 0.0 | 246.0 | 197.0 | 0.0 | 344.0 | 270.0 |
| 150.0 | 377.0 | 350.0 | 280.0 | 0.0 | 277.0 | 222.0 | 0.0 | 385.0 | 304.0 |
| 185.0 | 436.0 | 404.0 | 323.0 | 0.0 | 322.0 | 257.0 | 0.0 | 435.0 | 348.0 |
| 240.0 | 517.0 | 479.0 | 383.0 | 0.0 | 386.0 | 309.0 | 0.0 | 504.0 | 411.0 |
| 300.0 | 594.0 | 549.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 567.0 | 463.0 |
| 400.0 | 685.0 | 632.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 640.0 | 524.0 |
| 500.0 | 779.0 | 718.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 714.0 | 601.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground Wiring Enclosure |
