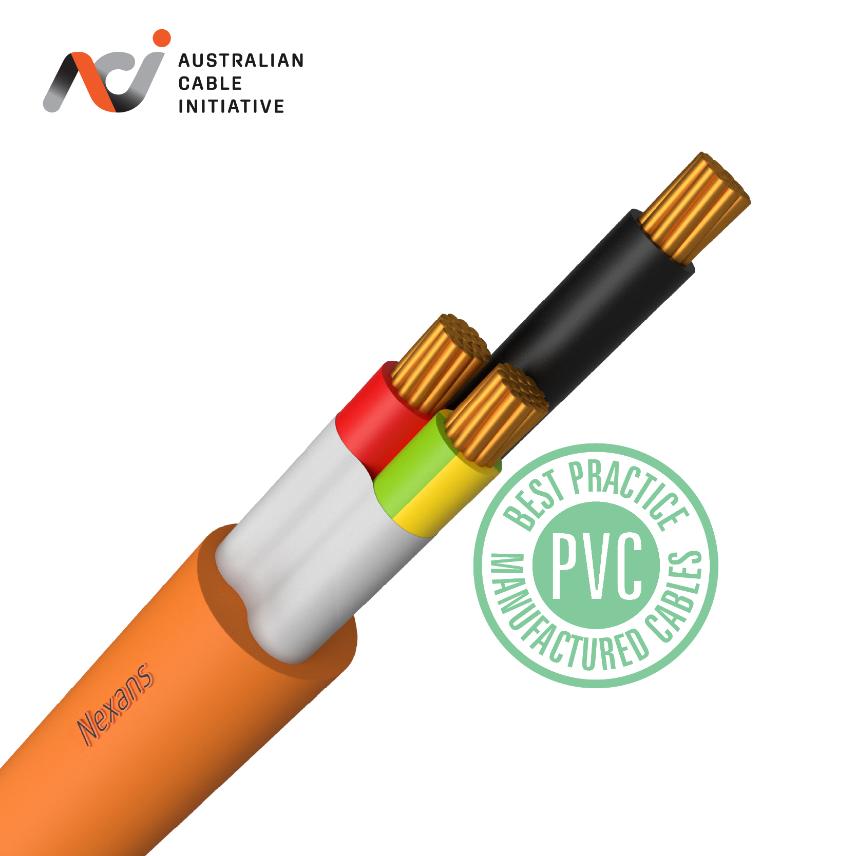

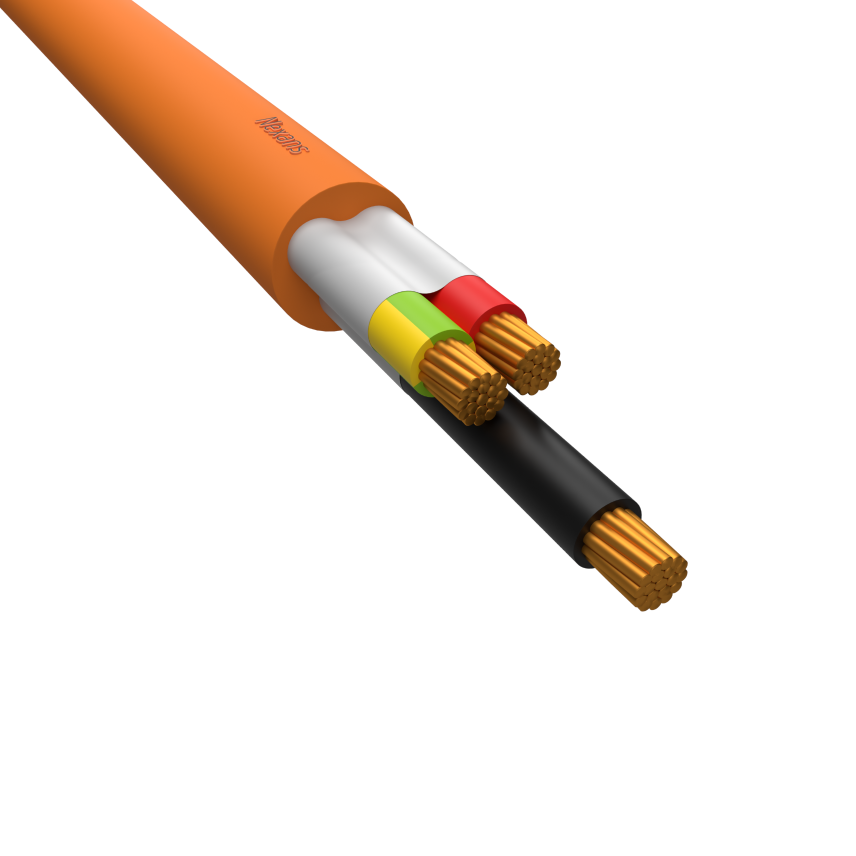

XLPE/PVC 2C+E & 3C+E 0.6/1kV Circular
XLPE/PVC 2C+E & 3C+E 0.6/1kV Circular
2 & 3 core+earth, circular, 0.6/1kV X-90 insulated, PVC sheathed to AS/NZS 5000.1, Copper conductors, 90°C. Manufactured to PVC Best Practice.
Read more2X16mm2 + E XLPE/PVC Circular Orange
Nexans ref. DTHP15AA002OMAA - Country ref. DTHP15AA002OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 2
- Conductor AC resistance at 50 Hz: 1.47 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 520 MOhm.km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 2.06 kN
- Minimum Bend Radius - During Installation (under Tension): 103 mm
- Minimum Bend Radius - Installed: 69 mm
2X25mm2 + E XLPE/PVC Circular Orange
Nexans ref. DTHC17AA002OMAA - Country ref. DTHC17AA002OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 2
- Conductor AC resistance at 50 Hz: 0.927 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 500 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Maximum Pull Tension of Conductor: 4 kN
- Maximum Pulling Tension: 2.32 kN
- Minimum Bend Radius - During Installation (under Tension): 232 mm
- Minimum Bend Radius - Installed: 154 mm
2X35mm2 + E XLPE/PVC Circular Orange
Nexans ref. DTHC18AA002OMAA - Country ref. DTHC18AA002OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Earth conductor cross section: 10 mm²
- Number of cores: 2
- Conductor AC resistance at 50 Hz: 0.669 Ohm/km
- Inductive reactance at 50Hz: 0.079 Ohm/km
- Insulation resistance at 20°C : 430 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Maximum Pull Tension of Conductor: 5 kN
- Maximum Pulling Tension: 2.58 kN
- Minimum Bend Radius - During Installation (under Tension): 258 mm
- Minimum Bend Radius - Installed: 172 mm
3X120mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHP23AA003OMAA - Country ref. FTHP23AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 120 mm²
- Earth conductor cross section: 35 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.197 Ohm/km
- Inductive reactance at 50Hz: 0.071 Ohm/km
- Insulation resistance at 20°C : 290 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Maximum Pull Tension of Conductor: 25 kN
- Maximum Pulling Tension: 4.88 kN
- Minimum Bend Radius - During Installation (under Tension): 366 mm
- Minimum Bend Radius - Installed: 244 mm
3X150mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHP24AA003OMAA - Country ref. FTHP24AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 150 mm²
- Earth conductor cross section: 50 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.16 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 330 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Maximum Pull Tension of Conductor: 25 kN
- Maximum Pulling Tension: 5.23 kN
- Minimum Bend Radius - During Installation (under Tension): 392 mm
- Minimum Bend Radius - Installed: 262 mm
3X16mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHP15AA003OMAA - Country ref. FTHP15AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Stranded copper
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 1.47 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 520 MOhm.km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Maximum Pull Tension of Conductor: 3 kN
- Maximum Pulling Tension: 2.24 kN
- Minimum Bend Radius - During Installation (under Tension): 112 mm
- Minimum Bend Radius - Installed: 75 mm
3X185mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHP25AA003OMAA - Country ref. FTHP25AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 185 mm²
- Earth conductor cross section: 70 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.129 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 330 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Maximum Pull Tension of Conductor: 25 kN
- Maximum Pulling Tension: 5.86 kN
- Minimum Bend Radius - During Installation (under Tension): 586 mm
- Minimum Bend Radius - Installed: 390 mm
3X25mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHC17AA003OMAA - Country ref. FTHC17AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.927 Ohm/km
- Inductive reactance at 50Hz: 0.081 Ohm/km
- Insulation resistance at 20°C : 500 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Maximum Pull Tension of Conductor: 5 kN
- Maximum Pulling Tension: 2.5 kN
- Minimum Bend Radius - During Installation (under Tension): 250 mm
- Minimum Bend Radius - Installed: 166 mm
3X35mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHC18AA003OMAA - Country ref. FTHC18AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 35 mm²
- Earth conductor cross section: 10 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.669 Ohm/km
- Inductive reactance at 50Hz: 0.079 Ohm/km
- Insulation resistance at 20°C : 430 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Maximum Pull Tension of Conductor: 7 kN
- Maximum Pulling Tension: 2.8 kN
- Minimum Bend Radius - During Installation (under Tension): 280 mm
- Minimum Bend Radius - Installed: 186 mm
3X50mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHC19AA003OMAA - Country ref. FTHC19AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 50 mm²
- Earth conductor cross section: 16 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.494 Ohm/km
- Inductive reactance at 50Hz: 0.075 Ohm/km
- Insulation resistance at 20°C : 410 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Maximum Pull Tension of Conductor: 10 kN
- Maximum Pulling Tension: 3.19 kN
- Minimum Bend Radius - During Installation (under Tension): 319 mm
- Minimum Bend Radius - Installed: 213 mm
3X70mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHC20AA003OMAA - Country ref. FTHC20AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 70 mm²
- Earth conductor cross section: 25 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.343 Ohm/km
- Inductive reactance at 50Hz: 0.074 Ohm/km
- Insulation resistance at 20°C : 380 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Maximum Pull Tension of Conductor: 15 kN
- Maximum Pulling Tension: 3.68 kN
- Minimum Bend Radius - During Installation (under Tension): 368 mm
- Minimum Bend Radius - Installed: 246 mm
3X95mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHC22AA003OMAA - Country ref. FTHC22AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Earth conductor cross section: 25 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.248 Ohm/km
- Inductive reactance at 50Hz: 0.072 Ohm/km
- Insulation resistance at 20°C : 330 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Maximum Pull Tension of Conductor: 20 kN
- Maximum Pulling Tension: 4.1 kN
- Minimum Bend Radius - During Installation (under Tension): 410 mm
- Minimum Bend Radius - Installed: 274 mm
3x240mm2 + E XLPE/PVC Circular Orange
Nexans ref. FTHP26AA003OMAA - Country ref. FTHP26AA003OMAA
- Packaging: Cut to length (m)
- Type of conductor: Compact copper
- Conductor cross-section: 240 mm²
- Earth conductor cross section: 95 mm²
- Number of cores: 3
- Conductor AC resistance at 50 Hz: 0.1 Ohm/km
- Inductive reactance at 50Hz: 0.071 Ohm/km
- Insulation resistance at 20°C : 310 MOhm.km
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Maximum Pull Tension of Conductor: 25 kN
- Maximum Pulling Tension: 6.56 kN
- Minimum Bend Radius - During Installation (under Tension): 656 mm
- Minimum Bend Radius - Installed: 438 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- 2 & 3 core+earth, circular,
- 0.6/1kV X-90 insulated,
- PVC sheathed to AS/NZS 5000.1
- Copper conductors, 90°C.
Note: Earth cores smaller than 25mm2 are not compacted.
Orange Circular; Circs
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Orange
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-90
Outer sheath
PVC
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Resources
Resources
XLPE/PVC Circular (2 Core+E) - Current carrying capacities single phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 18.0 | 17.0 | 14.0 | 9.0 | 16.0 | 12.0 | 8.0 | 26.0 | 19.0 |
| 1.5 | 24.0 | 22.0 | 18.0 | 11.0 | 20.0 | 16.0 | 10.0 | 33.0 | 24.0 |
| 2.5 | 34.0 | 31.0 | 25.0 | 16.0 | 28.0 | 23.0 | 14.0 | 46.0 | 34.0 |
| 4.0 | 45.0 | 42.0 | 33.0 | 21.0 | 37.0 | 29.0 | 18.0 | 60.0 | 45.0 |
| 6.0 | 57.0 | 53.0 | 42.0 | 27.0 | 46.0 | 37.0 | 23.0 | 75.0 | 56.0 |
| 10.0 | 78.0 | 73.0 | 58.0 | 36.0 | 63.0 | 51.0 | 32.0 | 101.0 | 75.0 |
| 16.0 | 104.0 | 97.0 | 78.0 | 49.0 | 82.0 | 66.0 | 41.0 | 132.0 | 98.0 |
| 25.0 | 140.0 | 131.0 | 105.0 | 66.0 | 110.0 | 88.0 | 55.0 | 170.0 | 128.0 |
| 35.0 | 173.0 | 162.0 | 129.0 | 81.0 | 132.0 | 106.0 | 66.0 | 205.0 | 154.0 |
| 50.0 | 211.0 | 197.0 | 158.0 | 0.0 | 162.0 | 130.0 | 0.0 | 244.0 | 185.0 |
| 70.0 | 268.0 | 250.0 | 200.0 | 0.0 | 200.0 | 160.0 | 0.0 | 300.0 | 228.0 |
| 95.0 | 331.0 | 309.0 | 247.0 | 0.0 | 250.0 | 200.0 | 0.0 | 360.0 | 279.0 |
| 120.0 | 385.0 | 359.0 | 287.0 | 0.0 | 285.0 | 228.0 | 0.0 | 410.0 | 318.0 |
| 150.0 | 441.0 | 411.0 | 328.0 | 0.0 | 332.0 | 265.0 | 0.0 | 460.0 | 365.0 |
| 185.0 | 509.0 | 473.0 | 379.0 | 0.0 | 377.0 | 301.0 | 0.0 | 520.0 | 413.0 |
| 240.0 | 604.0 | 562.0 | 449.0 | 0.0 | 448.0 | 358.0 | 0.0 | 603.0 | 485.0 |
| 300.0 | 694.0 | 645.0 | 516.0 | 0.0 | 523.0 | 418.0 | 0.0 | 680.0 | 558.0 |
| 400.0 | 804.0 | 745.0 | 596.0 | 0.0 | 596.0 | 477.0 | 0.0 | 771.0 | 633.0 |
| 500.0 | 915.0 | 848.0 | 678.0 | 0.0 | 695.0 | 556.0 | 0.0 | 862.0 | 728.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground Wiring Enclosure |
XLPE/PVC Circular 3C+E and 4C+E - Current carrying capacities three phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 16.0 | 14.0 | 12.0 | 7.0 | 13.0 | 10.0 | 6.0 | 22.0 | 16.0 |
| 1.5 | 20.0 | 19.0 | 15.0 | 9.0 | 16.0 | 13.0 | 8.0 | 28.0 | 20.0 |
| 2.5 | 28.0 | 26.0 | 21.0 | 13.0 | 24.0 | 19.0 | 12.0 | 39.0 | 29.0 |
| 4.0 | 38.0 | 35.0 | 28.0 | 18.0 | 30.0 | 24.0 | 15.0 | 51.0 | 37.0 |
| 6.0 | 48.0 | 45.0 | 36.0 | 22.0 | 38.0 | 30.0 | 19.0 | 63.0 | 46.0 |
| 10.0 | 66.0 | 62.0 | 49.0 | 31.0 | 53.0 | 42.0 | 26.0 | 85.0 | 63.0 |
| 16.0 | 88.0 | 83.0 | 66.0 | 41.0 | 68.0 | 55.0 | 34.0 | 110.0 | 81.0 |
| 25.0 | 119.0 | 111.0 | 89.0 | 56.0 | 91.0 | 73.0 | 46.0 | 143.0 | 107.0 |
| 35.0 | 147.0 | 137.0 | 110.0 | 69.0 | 114.0 | 91.0 | 57.0 | 172.0 | 130.0 |
| 50.0 | 180.0 | 168.0 | 134.0 | 0.0 | 136.0 | 108.0 | 0.0 | 204.0 | 155.0 |
| 70.0 | 229.0 | 213.0 | 170.0 | 0.0 | 173.0 | 138.0 | 0.0 | 251.0 | 193.0 |
| 95.0 | 283.0 | 263.0 | 210.0 | 0.0 | 209.0 | 167.0 | 0.0 | 302.0 | 233.0 |
| 120.0 | 330.0 | 306.0 | 245.0 | 0.0 | 246.0 | 197.0 | 0.0 | 344.0 | 270.0 |
| 150.0 | 377.0 | 350.0 | 280.0 | 0.0 | 277.0 | 222.0 | 0.0 | 385.0 | 304.0 |
| 185.0 | 436.0 | 404.0 | 323.0 | 0.0 | 322.0 | 257.0 | 0.0 | 435.0 | 348.0 |
| 240.0 | 517.0 | 479.0 | 383.0 | 0.0 | 386.0 | 309.0 | 0.0 | 504.0 | 411.0 |
| 300.0 | 594.0 | 549.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 567.0 | 463.0 |
| 400.0 | 685.0 | 632.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 640.0 | 524.0 |
| 500.0 | 779.0 | 718.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 714.0 | 601.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground Wiring Enclosure |
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
