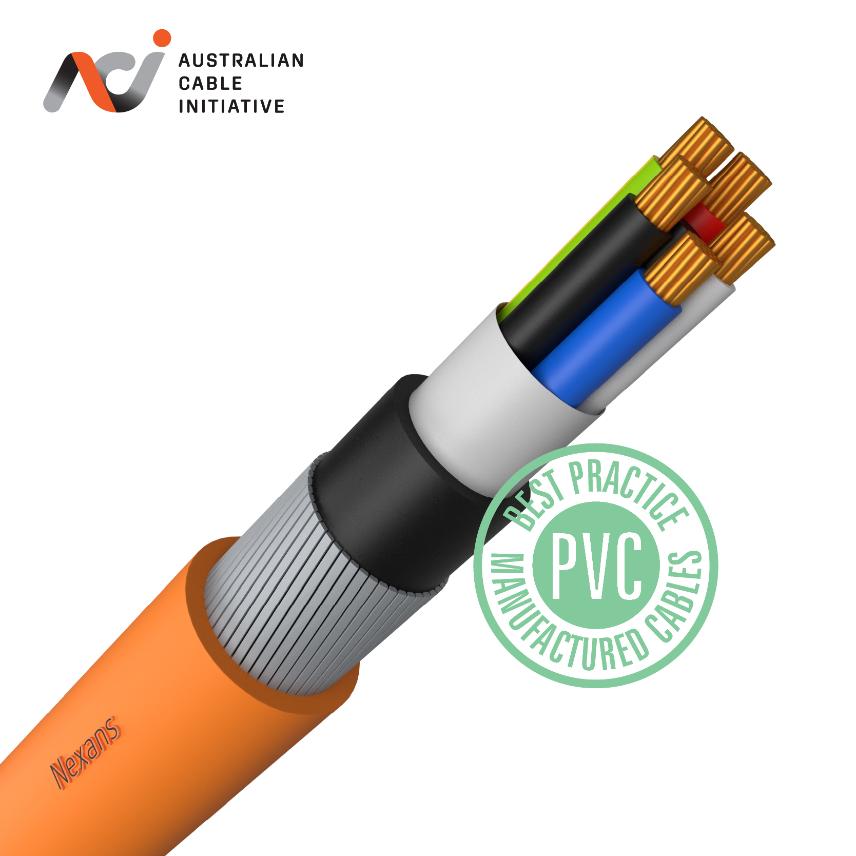

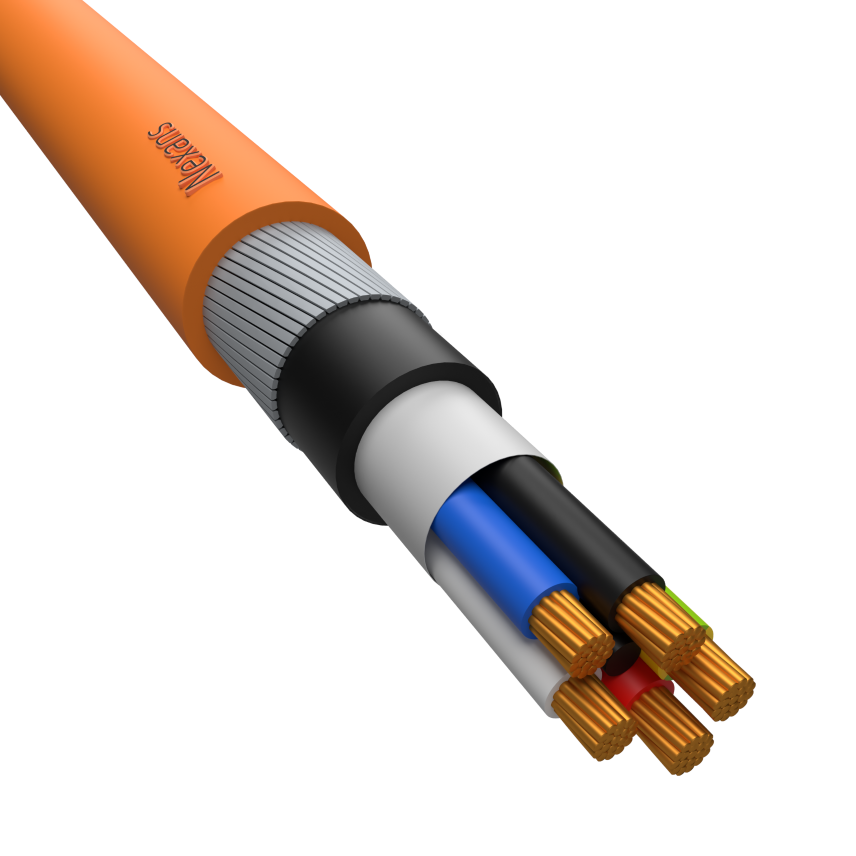

PVC Steel Wire Armour Circular 4C+E (0.6/1kV)
PVC Steel Wire Armour Circular 4C+E (0.6/1kV)
4 core + earth, circular, 0.6/1kV V-90 insulated, PVC bedded, steel wire armoured, PVC sheathed cable to AS/NZS 5000.1, copper conductors, 90°C. Manufactured to PVC Best Practice Guidelines.
Read more4X1.5mm2 + E PVC SWA Circular Black
Nexans ref. HNMP05AA004CXWW - Country ref. HNMP05AA004CXWW
- Packaging: Cut to length (m)
- Colour: Black
- Type of conductor: Stranded copper
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Maximum Pull Tension of Armour: 3 kN
- Maximum Pulling Tension: 1.9 kN
- Minimum Bend Radius - During Installation (under Tension): 290 mm
- Minimum Bend Radius - Installed: 190 mm
4X1.5mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP05AA004OMAA - Country ref. HNMP05AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Maximum Pull Tension of Armour: 3 kN
- Maximum Pulling Tension: 1.9 kN
- Minimum Bend Radius - During Installation (under Tension): 290 mm
- Minimum Bend Radius - Installed: 190 mm
4X10mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP13AA004OMAA - Country ref. HNMP13AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Maximum Pull Tension of Armour: 9 kN
- Maximum Pulling Tension: 2.9 kN
- Minimum Bend Radius - During Installation (under Tension): 440 mm
- Minimum Bend Radius - Installed: 290 mm
4X150mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP24AA004OMAA - Country ref. HNMP24AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 150 mm²
- Earth conductor cross section: 50 mm²
- Maximum Pull Tension of Armour: 25 kN
- Maximum Pulling Tension: 7.2 kN
- Minimum Bend Radius - During Installation (under Tension): 1080 mm
- Minimum Bend Radius - Installed: 720 mm
4X16mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP15AA004OMAA - Country ref. HNMP15AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Maximum Pull Tension of Armour: 10 kN
- Maximum Pulling Tension: 3.2 kN
- Minimum Bend Radius - During Installation (under Tension): 480 mm
- Minimum Bend Radius - Installed: 320 mm
4X2.5mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP07AA004OMAA - Country ref. HNMP07AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Maximum Pull Tension of Armour: 3 kN
- Maximum Pulling Tension: 2.1 kN
- Minimum Bend Radius - During Installation (under Tension): 310 mm
- Minimum Bend Radius - Installed: 210 mm
4X4mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP09AA004OMAA - Country ref. HNMP09AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Maximum Pull Tension of Armour: 5 kN
- Maximum Pulling Tension: 2.4 kN
- Minimum Bend Radius - During Installation (under Tension): 360 mm
- Minimum Bend Radius - Installed: 240 mm
4X6mm2 + E PVC SWA Circular Orange
Nexans ref. HNMP11AA004OMAA - Country ref. HNMP11AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Stranded copper
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Maximum Pull Tension of Armour: 6 kN
- Maximum Pulling Tension: 2.6 kN
- Minimum Bend Radius - During Installation (under Tension): 390 mm
- Minimum Bend Radius - Installed: 260 mm
4X95mm2 + E PVC SWA Circular Orange
Nexans ref. HNMC22AA004OMAA - Country ref. HNMC22AA004OMAA
- Packaging: Cut to length (m)
- Colour: Orange
- Type of conductor: Compact copper
- Conductor cross-section: 95 mm²
- Earth conductor cross section: 25 mm²
- Maximum Pull Tension of Armour: 24 kN
- Maximum Pulling Tension: 5.9 kN
- Minimum Bend Radius - During Installation (under Tension): 880 mm
- Minimum Bend Radius - Installed: 590 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
- 4 core + earth,
- Circular,
- 0.6/1kV
- V-90 insulated,
- PVC bedded,
- Steel wire armoured,
- PVC sheathed cable to AS/NZS 5000.1,
- Copper conductors, 90°C.
Note: 3½ core (3 core+reduced neutral with or without earth) available on request subject to minimum production runs.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Steel wires
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Material of bedding
PVC filler
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Resources
Resources
PVC Circular SWA 3C + 4C and Earth - Current carrying capacities three phase (in Amps)
Insulation type: Thermoplastic
Maximum conductor temperature: 75°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 13.0 | 12.0 | 9.0 | 6.0 | 11.0 | 9.0 | 5.0 | 19.0 | 14.0 |
| 1.5 | 16.0 | 15.0 | 12.0 | 8.0 | 14.0 | 11.0 | 7.0 | 24.0 | 18.0 |
| 2.5 | 23.0 | 22.0 | 17.0 | 11.0 | 20.0 | 16.0 | 10.0 | 34.0 | 25.0 |
| 4.0 | 31.0 | 29.0 | 23.0 | 15.0 | 25.0 | 20.0 | 13.0 | 44.0 | 33.0 |
| 6.0 | 40.0 | 37.0 | 30.0 | 19.0 | 33.0 | 26.0 | 16.0 | 55.0 | 42.0 |
| 10.0 | 54.0 | 51.0 | 41.0 | 25.0 | 44.0 | 35.0 | 22.0 | 74.0 | 55.0 |
| 16.0 | 72.0 | 68.0 | 54.0 | 34.0 | 58.0 | 47.0 | 29.0 | 96.0 | 73.0 |
| 25.0 | 97.0 | 91.0 | 73.0 | 46.0 | 76.0 | 60.0 | 38.0 | 125.0 | 94.0 |
| 35.0 | 120.0 | 112.0 | 90.0 | 56.0 | 94.0 | 75.0 | 47.0 | 150.0 | 114.0 |
| 50.0 | 146.0 | 137.0 | 109.0 | 0.0 | 112.0 | 89.0 | 0.0 | 178.0 | 136.0 |
| 70.0 | 185.0 | 172.0 | 138.0 | 0.0 | 142.0 | 114.0 | 0.0 | 219.0 | 170.0 |
| 95.0 | 228.0 | 213.0 | 170.0 | 0.0 | 177.0 | 142.0 | 0.0 | 263.0 | 208.0 |
| 120.0 | 265.0 | 247.0 | 198.0 | 0.0 | 202.0 | 162.0 | 0.0 | 300.0 | 237.0 |
| 150.0 | 303.0 | 282.0 | 226.0 | 0.0 | 228.0 | 182.0 | 0.0 | 336.0 | 266.0 |
| 185.0 | 348.0 | 324.0 | 259.0 | 0.0 | 263.0 | 211.0 | 0.0 | 379.0 | 304.0 |
| 240.0 | 412.0 | 383.0 | 307.0 | 0.0 | 316.0 | 253.0 | 0.0 | 438.0 | 359.0 |
| 300.0 | 472.0 | 438.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 493.0 | 404.0 |
| 400.0 | 544.0 | 504.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 557.0 | 468.0 |
| 500.0 | 616.0 | 571.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 620.0 | 522.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts |
Selling & delivery Information
Other colours are available on request
