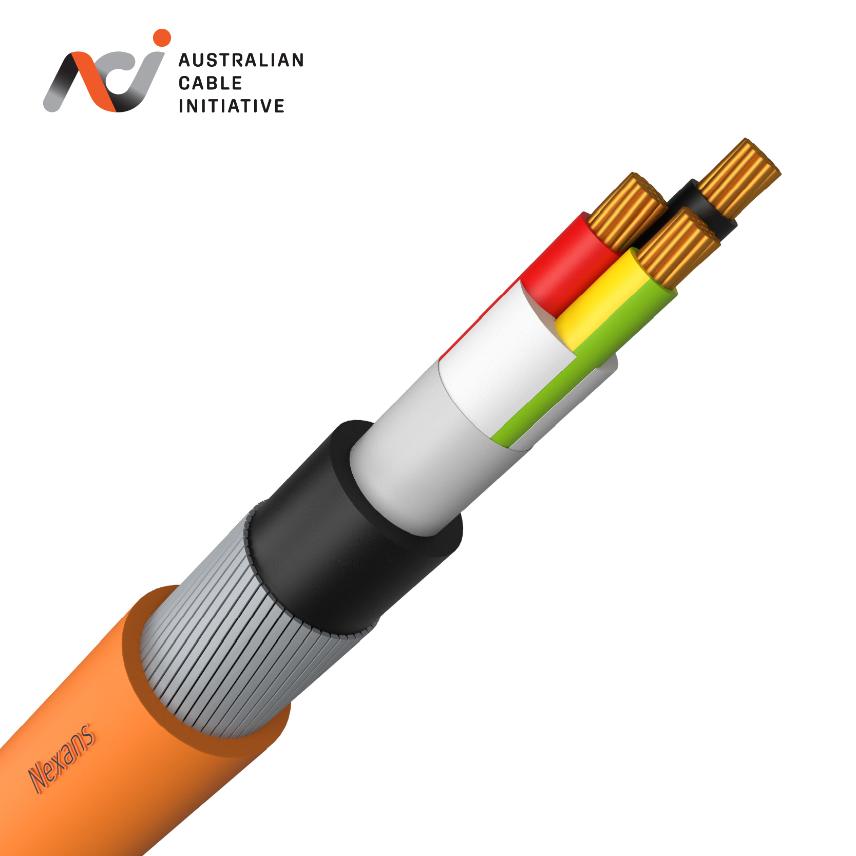

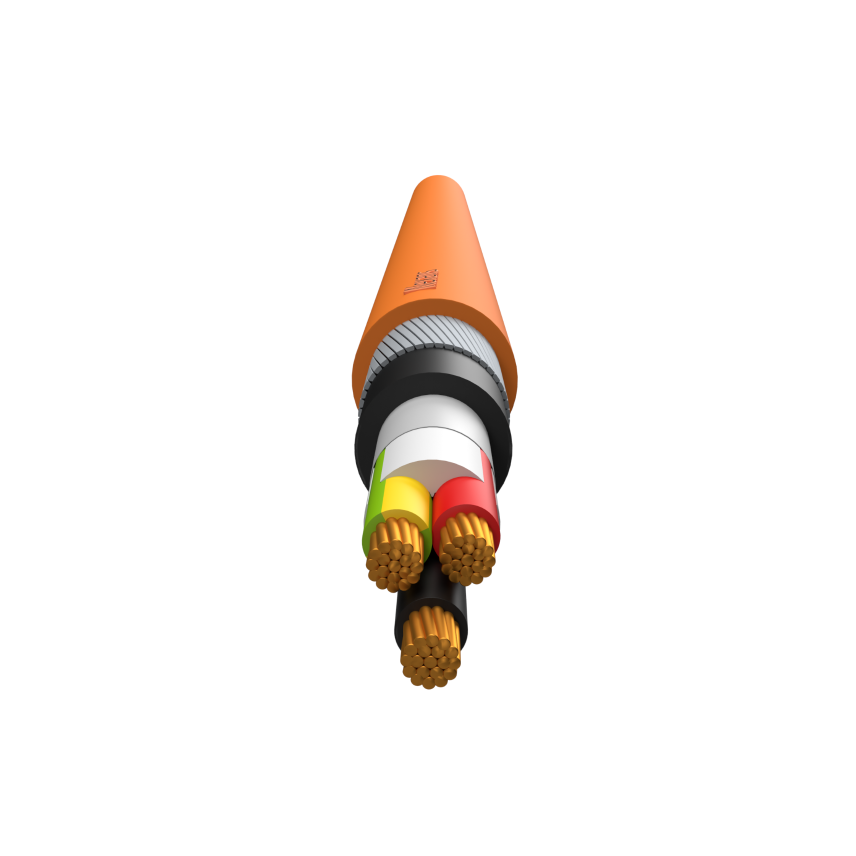

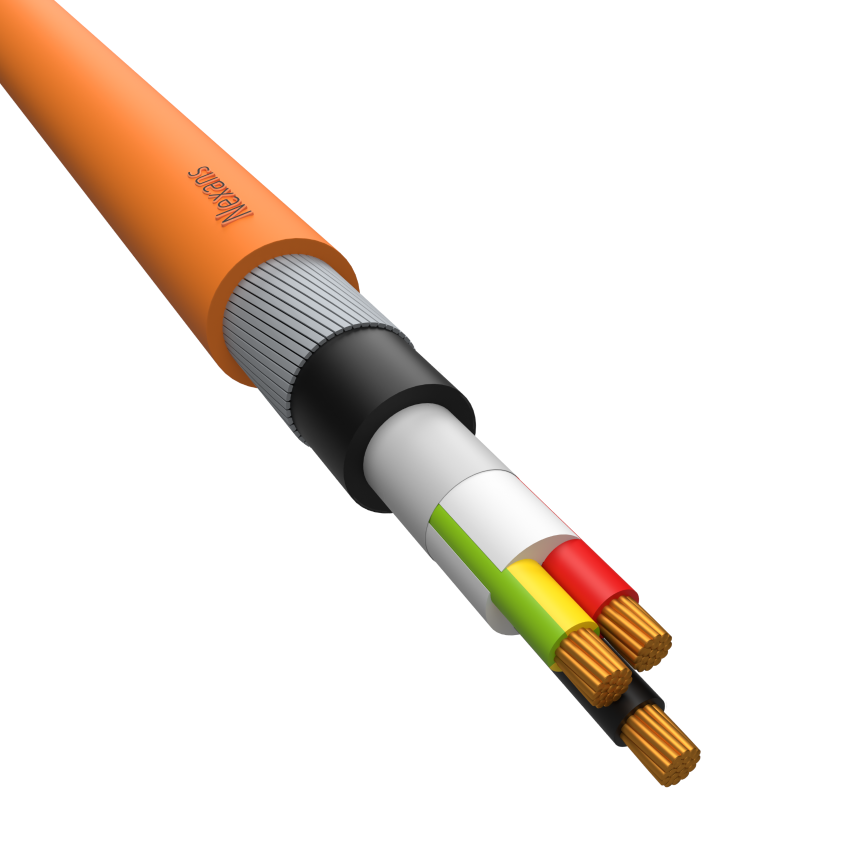

PVC SWA Circular 2C+E & 3C+E (0.6/1kV)

2 & 3 core+earth, circular, 0.6/1kV V-90 insulated, PVC bedded, steel wire armoured, PVC sheathed cable to AS/NZS 5000.1, copper conductors, 90°C.

Find distributor

Products

Description

Standards

National

AS/NZS 1125; AS/NZS 5000.1

2 & 3 core+earth,
Circular,
0.6/1kV
V-90 insulated,
PVC bedded,
Steel wire armoured,
PVC sheathed cable to AS/NZS 5000.1,
Copper conductors, 90°C.

Orange Circulars; Armoured;

Characteristics

Construction characteristics

Conductor material

Copper

Type of conductor

Stranded copper

Insulation

V-90

Armour type

Steel wires

Outer sheath

PVC

Conductor flexibility

Class 2

Conductor shape

Circular

Material of bedding

Dimensional characteristics

Number of earth cores

Electrical characteristics

Rated Voltage Uo/U (Um)

0,6/1 kV

Mechanical characteristics

Cable flexibility

Rigid

Resources

PVC Circular SWA (2 Core+E) - Current carrying capacities single phase (in Amps)

Insulation type: Thermoplastic

Maximum conductor temperature: 75°C

Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu	Cu	Cu	Cu
1.0	15.0	14.0	11.0	7.0	13.0	10.0	6.0	22.0	17.0
1.5	19.0	18.0	14.0	9.0	16.0	13.0	8.0	28.0	21.0
2.5	27.0	26.0	20.0	13.0	23.0	19.0	12.0	40.0	30.0
4.0	37.0	34.0	27.0	17.0	30.0	24.0	15.0	52.0	39.0
6.0	46.0	44.0	35.0	22.0	39.0	31.0	20.0	65.0	50.0
10.0	64.0	60.0	48.0	30.0	52.0	42.0	26.0	87.0	66.0
16.0	85.0	80.0	64.0	40.0	68.0	54.0	34.0	114.0	86.0
25.0	113.0	107.0	85.0	53.0	90.0	72.0	45.0	147.0	112.0
35.0	139.0	131.0	105.0	65.0	112.0	90.0	56.0	178.0	136.0
50.0	170.0	159.0	127.0	0.0	133.0	107.0	0.0	211.0	162.0
70.0	215.0	201.0	161.0	0.0	170.0	136.0	0.0	259.0	202.0
95.0	265.0	248.0	198.0	0.0	204.0	163.0	0.0	311.0	243.0
120.0	307.0	288.0	230.0	0.0	241.0	192.0	0.0	355.0	282.0
150.0	351.0	328.0	263.0	0.0	271.0	217.0	0.0	398.0	317.0
185.0	403.0	377.0	302.0	0.0	313.0	250.0	0.0	449.0	363.0
240.0	477.0	446.0	357.0	0.0	364.0	291.0	0.0	520.0	421.0
300.0	547.0	511.0	409.0	0.0	424.0	340.0	0.0	586.0	483.0
400.0	631.0	589.0	471.0	0.0	482.0	386.0	0.0	663.0	548.0
500.0	716.0	668.0	534.0	0.0	561.0	449.0	0.0	741.0	628.0

Unenclosed spaced

Unenclosed touching

Unenclosed and partially surrounded by thermal insulation

Unenclosed and completely surrounded by thermal insulation

Enclosed conduit in air

Enclosed, partially surrounded by thermal insulation

Enclosed, completely surrounded by thermal insulation

Buried direct

Underground ducts

PVC Circular SWA 3C + 4C and Earth - Current carrying capacities three phase (in Amps)

Insulation type: Thermoplastic

Maximum conductor temperature: 75°C

Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND

Conductor cross-section
mm²	Cu	Cu	Cu	Cu	Cu	Cu	Cu	Cu	Cu
1.0	13.0	12.0	9.0	6.0	11.0	9.0	5.0	19.0	14.0
1.5	16.0	15.0	12.0	8.0	14.0	11.0	7.0	24.0	18.0
2.5	23.0	22.0	17.0	11.0	20.0	16.0	10.0	34.0	25.0
4.0	31.0	29.0	23.0	15.0	25.0	20.0	13.0	44.0	33.0
6.0	40.0	37.0	30.0	19.0	33.0	26.0	16.0	55.0	42.0
10.0	54.0	51.0	41.0	25.0	44.0	35.0	22.0	74.0	55.0
16.0	72.0	68.0	54.0	34.0	58.0	47.0	29.0	96.0	73.0
25.0	97.0	91.0	73.0	46.0	76.0	60.0	38.0	125.0	94.0
35.0	120.0	112.0	90.0	56.0	94.0	75.0	47.0	150.0	114.0
50.0	146.0	137.0	109.0	0.0	112.0	89.0	0.0	178.0	136.0
70.0	185.0	172.0	138.0	0.0	142.0	114.0	0.0	219.0	170.0
95.0	228.0	213.0	170.0	0.0	177.0	142.0	0.0	263.0	208.0
120.0	265.0	247.0	198.0	0.0	202.0	162.0	0.0	300.0	237.0
150.0	303.0	282.0	226.0	0.0	228.0	182.0	0.0	336.0	266.0
185.0	348.0	324.0	259.0	0.0	263.0	211.0	0.0	379.0	304.0
240.0	412.0	383.0	307.0	0.0	316.0	253.0	0.0	438.0	359.0
300.0	472.0	438.0	0.0	0.0	0.0	0.0	0.0	493.0	404.0
400.0	544.0	504.0	0.0	0.0	0.0	0.0	0.0	557.0	468.0
500.0	616.0	571.0	0.0	0.0	0.0	0.0	0.0	620.0	522.0
