MBW BOOST TPS PVC 2X1.5E PC PVC WT 150m
MBW BOOST TPS PVC 2X1.5E PC PVC WT 150m
MOBIWAY
MBW BOOST TPS PVC 2X1.5E PC PVC WT 150m
Read more- Nexans ref. : 10585175
- Country ref. : CNCP05MK002WVAA
- EAN : 9319215516567
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.2

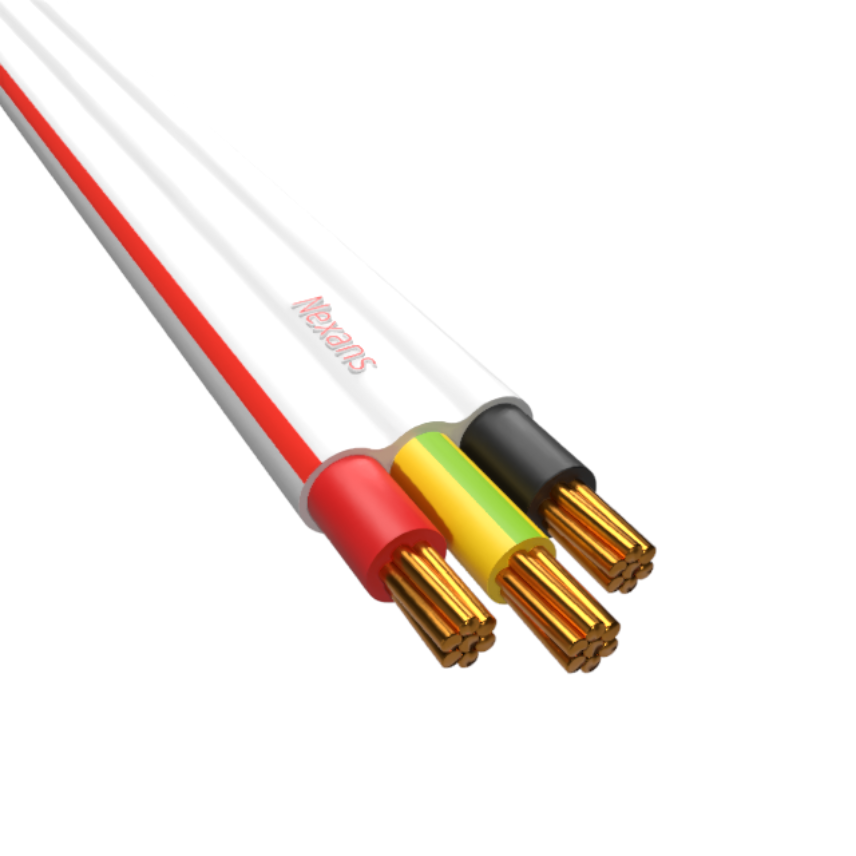

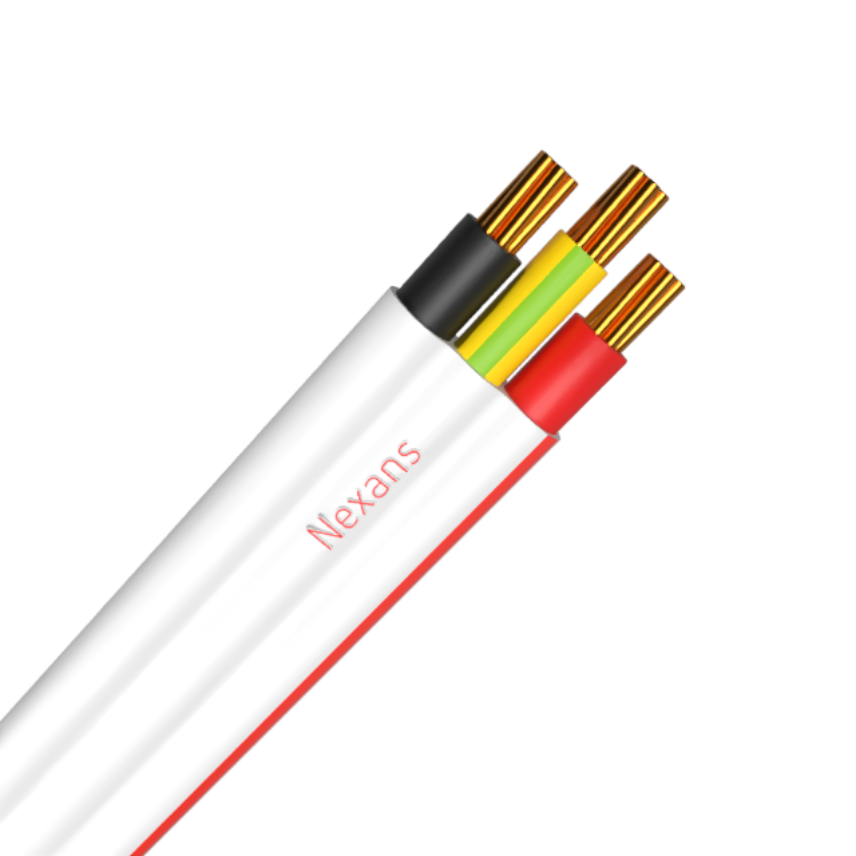

2X1.0mm2 + E PVC Flat Red Black Cores with White Sheath
Nexans MOBIWAYTM BOOST SYSTEM (CABLE & SPOOL)
Made to AS/NZS 5000.2
Cable data
Cu conductors, PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Application
• Domestic, residential, and commercial building
• Industrial general applications
• Fixed applications for power and lighting

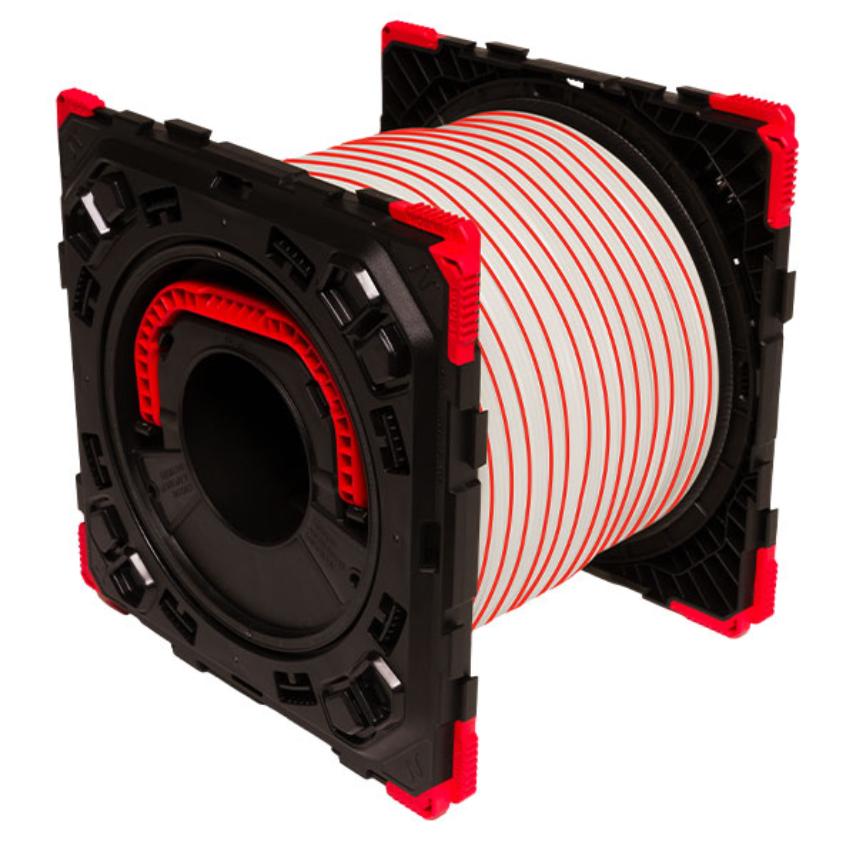

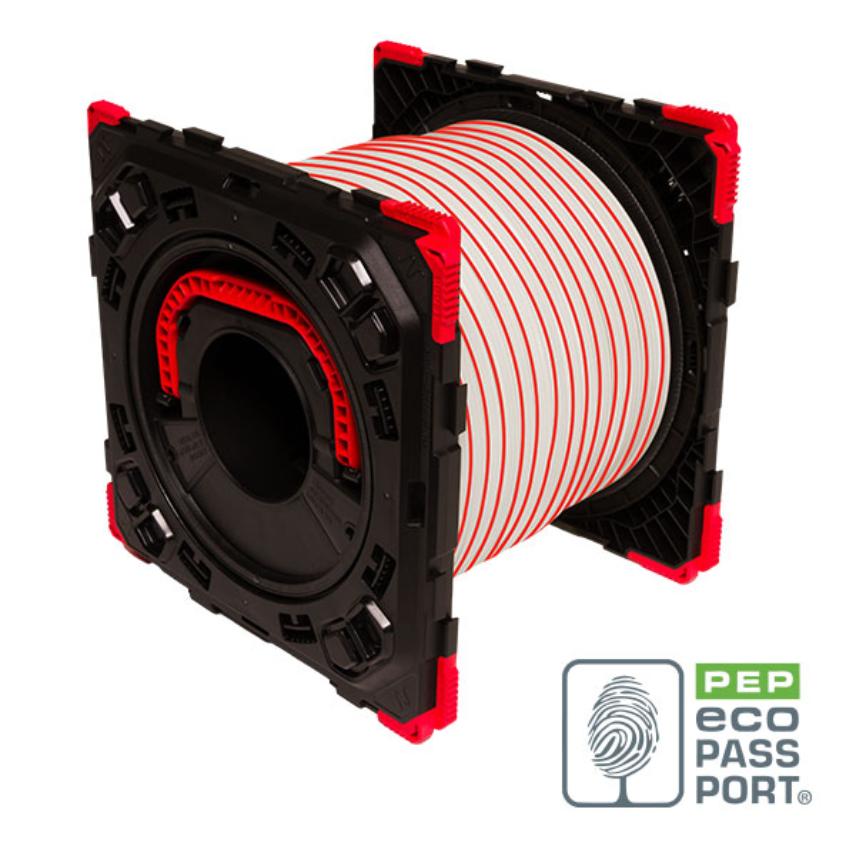

MOBIWAY BOOST UNIT DETAILS

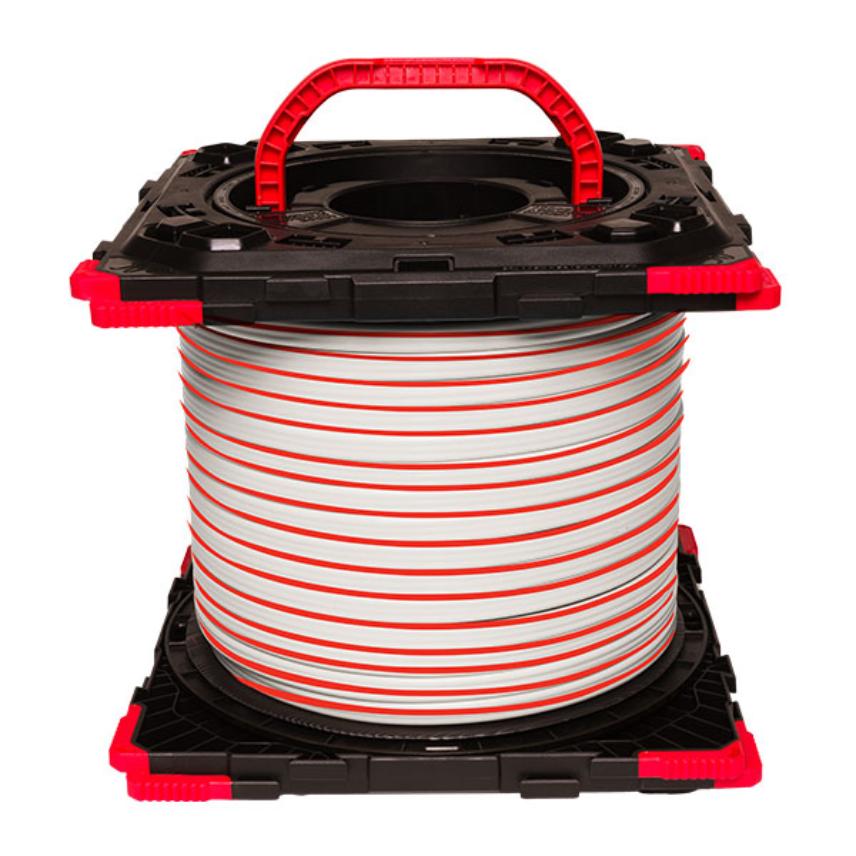

MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm
PALLET DIMENSIONS (FULL PALLET = 64 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm - WEIGHT: 1150kg (approx)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White / Black / Red
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Stranded copper
With Green/Yellow core
Yes
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Approximate weight
13.29 kg/100m
Cable length
150 m
Conductor cross-section
1.5 mm²
Earth conductor cross section
1.5 mm²
Neutral conductor section (when smaller)
- mm²
Nominal insulation thickness
0.6 mm
Nominal outer sheath thickness
0.9 mm
Nominal overall diameter
9.9 x 4.5
Number of cores
2
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
16.5 Ohm/km
Inductive reactance at 50Hz
0.172 Ohm/km
Insulation resistance at 20°C
14 MOhm.km
Max. DC resistance of the conductor at 20°C
13.6 Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Bending factor when installed
4 (xD)
Bending factor when laying
6 (xD)
