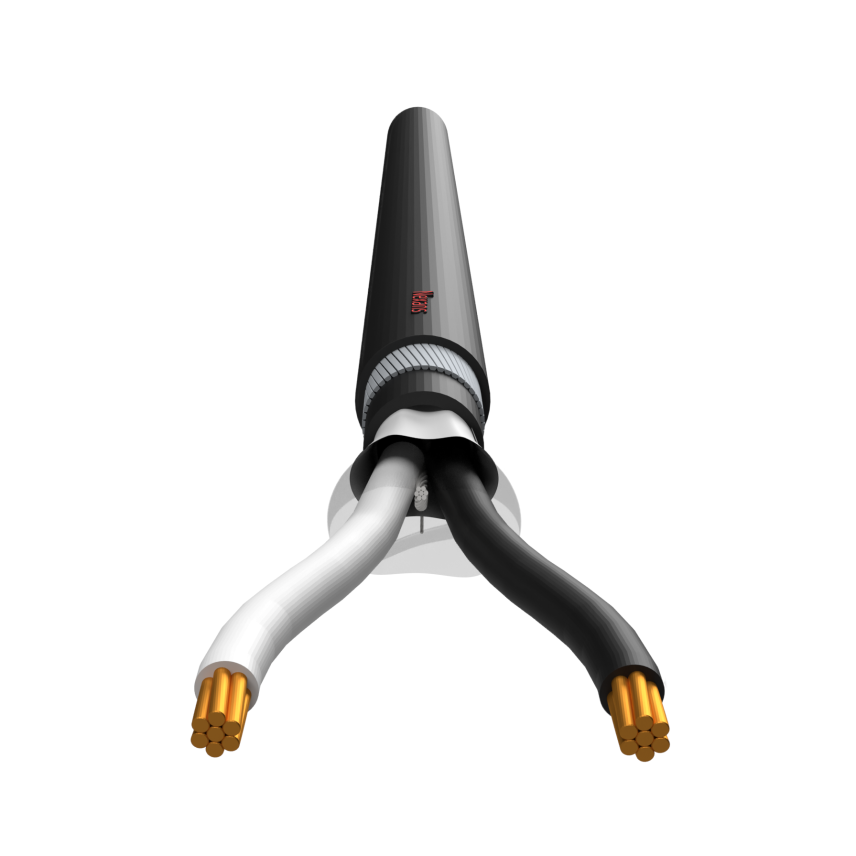

Instrolex® Instrumentation SWA Pairs
Instrolex® Instrumentation SWA Pairs
Plain annealed copper conductor, V-90 RP PVC insulated, Steel wire armour
Read moreInstrolex® Instrumentation SWA
Nexans ref. IEF184AA001
- Packaging: Cut to length (m)
- Screen: Single screened
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 10.2 mm
- Number of pairs: 1
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA002
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 11.4 mm
- Number of pairs: 2
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA004
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 12.0 mm
- Number of pairs: 4
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA006
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 13.6 mm
- Number of pairs: 6
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA008
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 14.8 mm
- Number of pairs: 8
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA010
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 16.1 mm
- Number of pairs: 10
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA012
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 17.0 mm
- Number of pairs: 12
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA016
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 18.9 mm
- Number of pairs: 16
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA002
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 11.7 mm
- Number of pairs: 2
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA004
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 14.0 mm
- Number of pairs: 4
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA006
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 16.0 mm
- Number of pairs: 6
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA008
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 17.5 mm
- Number of pairs: 8
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA010
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 18.2 mm
- Number of pairs: 10
Instrolex® Instrumentation SWA
Nexans ref. - Country ref. IGF184AA001
- Packaging: Cut to length (m)
- Screen: Single screened
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 10.6 mm
- Number of pairs: -
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA020
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 21.1 mm
- Number of pairs: 20
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA024
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 22.7 mm
- Number of pairs: 24
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA036
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 26.3 mm
- Number of pairs: 36
Instrolex® Instrumentation SWA
Nexans ref. IEG183AA050
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 29.9 mm
- Number of pairs: 50
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA002
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 13.6 mm
- Number of pairs: 2
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA004
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 14.5 mm
- Number of pairs: 4
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA006
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 16.6 mm
- Number of pairs: 6
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA008
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 18.2 mm
- Number of pairs: 8
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA010
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 20.6 mm
- Number of pairs: 10
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA012
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 22.1 mm
- Number of pairs: 12
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA016
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 24.4 mm
- Number of pairs: 16
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA020
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 26.6 mm
- Number of pairs: 20
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA024
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 28.6 mm
- Number of pairs: 24
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA036
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 34.4 mm
- Number of pairs: 36
Instrolex® Instrumentation SWA
Nexans ref. IEG184AA050
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 39.7 mm
- Number of pairs: 50
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA012
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 19.6 mm
- Number of pairs: 12
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA016
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 22.6 mm
- Number of pairs: 16
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA020
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 24.4 mm
- Number of pairs: 20
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA024
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 26.2 mm
- Number of pairs: 24
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA036
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 30.6 mm
- Number of pairs: 36
Instrolex® Instrumentation SWA
Nexans ref. IEH183AA050
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Nominal outer diameter: 35.8 mm
- Number of pairs: 50
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA002
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 13.9 mm
- Number of pairs: 2
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA004
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 17.1 mm
- Number of pairs: 4
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA006
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 20.4 mm
- Number of pairs: 6
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA008
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 22.7 mm
- Number of pairs: 8
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA010
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 23.7 mm
- Number of pairs: 10
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA012
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 25.4 mm
- Number of pairs: 12
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA016
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 28.4 mm
- Number of pairs: 16
Instrolex® Instrumentation SWA
Nexans ref. IEH184AA024
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 33.9 mm
- Number of pairs: 24
Description
Description
- Plain annealed copper conductor,
- V-90 RP PVC insulated,
- Twisted pairs and triads
- Overall or individually and overall screened with aluminium polyester tape plus tinned annealed copper drain wire,
- Rip cord,
- PVC bedding,
- Steel wire armour,
- 5V-90 RP PVC sheathed..
Instrolex Electrical Characteristics
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Steel wires
Conductor material
Annealed copper
Insulation
PVC
Material of bedding
PVC filler
Outer sheath
PVC
Overall screen
Annealed tinned copper drain wire + aluminium/polyester tape
Dimensional characteristics
Dimensional characteristics
Number of wires per conductor
7
