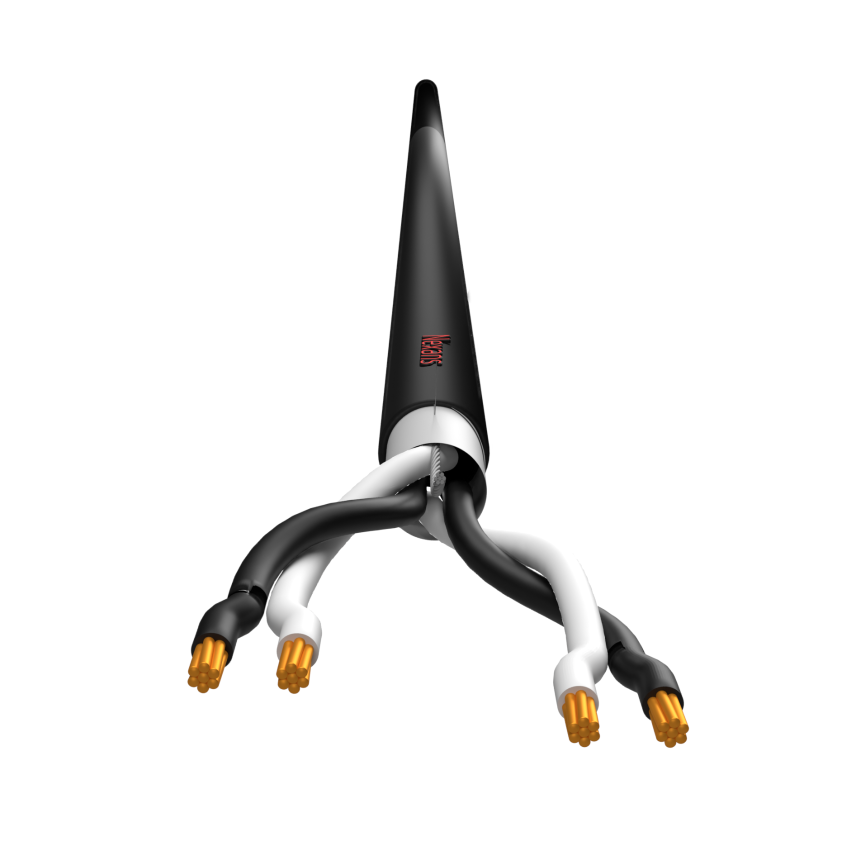

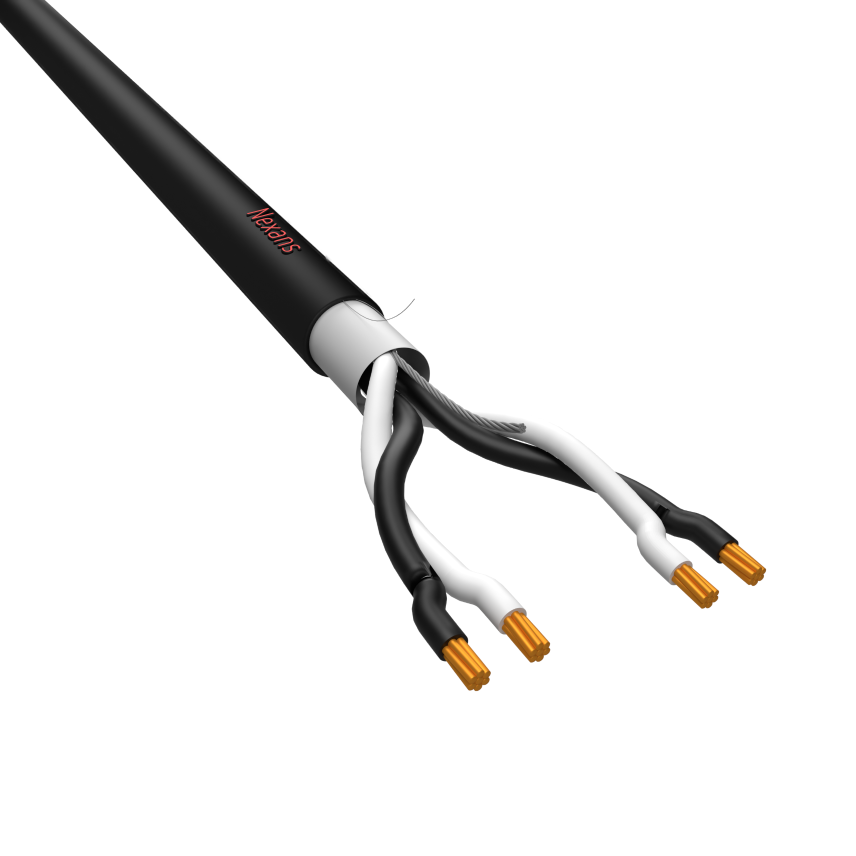

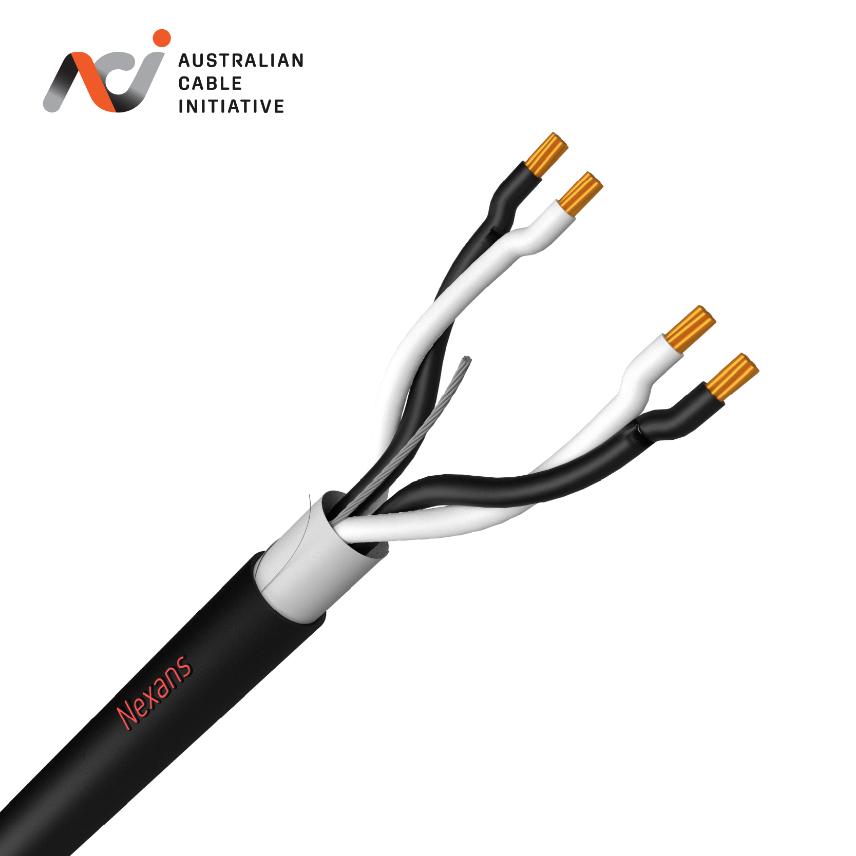

Instrolex® Instrumentation Pairs
Instrolex® Instrumentation Pairs
Overall, or Individual & overall screened with aluminium polyester tape plus tinned annealed copper drain wire
Read moreINST I+OS 0.5 X 2 PR
Nexans ref. IED183AA004CXAA - Country ref. IED183AA004CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 4
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.28 kN
- Minimum Bend Radius - During Installation (under Tension): 94 mm
- Minimum Bend Radius - Installed: 62 mm
INST I+OS 0.5 X 4 PR
Nexans ref. IED183AA002CXAA - Country ref. IED183AA002CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 2
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.14 kN
- Minimum Bend Radius - During Installation (under Tension): 73 mm
- Minimum Bend Radius - Installed: 49 mm
INST I+OS 0.5 X 6 PR
Nexans ref. IED183AA006CXAA - Country ref. IED183AA006CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 6
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.42 kN
- Minimum Bend Radius - During Installation (under Tension): 110 mm
- Minimum Bend Radius - Installed: 73 mm
INST I+OS 1.5 X 2 PR
Nexans ref. IED184AA002CXAA - Country ref. IED184AA002CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 2
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.42 kN
- Minimum Bend Radius - During Installation (under Tension): 93 mm
- Minimum Bend Radius - Installed: 62 mm
INST I+OS 1.5 X 4 PR
Nexans ref. IED184AA004CXAA - Country ref. IED184AA004CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 4
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.84 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 80 mm
INST I+OS 1.5 X 6 PR
Nexans ref. IED184AA006CXAA - Country ref. IED184AA006CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 6
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 1.26 kN
- Minimum Bend Radius - During Installation (under Tension): 145 mm
- Minimum Bend Radius - Installed: 97 mm
INST I+OS 1.5 X 10 PR
Nexans ref. IED184AA010CXAA - Country ref. IED184AA010CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 10
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 2.1 kN
- Minimum Bend Radius - During Installation (under Tension): 175 mm
- Minimum Bend Radius - Installed: 115 mm
INST I+OS 1.5 X 24 PR
Nexans ref. IED184AA024CXAA - Country ref. IED184AA024CXAA
- Packaging: Cut to length (m)
- Screen: Individually and overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 24
- Maximum Pull Tension of Conductor: 5 kN
- Maximum Pulling Tension: 3.48 kN
- Minimum Bend Radius - During Installation (under Tension): 260 mm
- Minimum Bend Radius - Installed: 175 mm
INST OS 0.5 X 2 PR
Nexans ref. IEC183AA002CXAA - Country ref. IEC183AA002CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 2
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.14 kN
- Minimum Bend Radius - During Installation (under Tension): 70 mm
- Minimum Bend Radius - Installed: 47 mm
INST OS 0.5 X 4 PR
Nexans ref. IEC183AA004CXAA - Country ref. IEC183AA004CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 4
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.28 kN
- Minimum Bend Radius - During Installation (under Tension): 76 mm
- Minimum Bend Radius - Installed: 50 mm
INST OS 0.5 X 6 PR
Nexans ref. IEC183AA006CXAA - Country ref. IEC183AA006CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 6
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.42 kN
- Minimum Bend Radius - During Installation (under Tension): 90 mm
- Minimum Bend Radius - Installed: 60 mm
INST OS 0.5 X 8 PR
Nexans ref. IEC183AA008CXAA - Country ref. IEC183AA008CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 8
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.56 kN
- Minimum Bend Radius - During Installation (under Tension): 100 mm
- Minimum Bend Radius - Installed: 67 mm
INST OS 0.5 X 10 PR
Nexans ref. IEC183AA010CXAA - Country ref. IEC183AA010CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 10
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.7 kN
- Minimum Bend Radius - During Installation (under Tension): 115 mm
- Minimum Bend Radius - Installed: 75 mm
INST OS 0.5 X 12 PR
Nexans ref. IEC183AA012CXAA - Country ref. IEC183AA012CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 12
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.84 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 80 mm
INST OS 0.5 X 16 PR
Nexans ref. IEC183AA016CXAA - Country ref. IEC183AA016CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 0.5 mm²
- Number of pairs: 16
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 1.12 kN
- Minimum Bend Radius - During Installation (under Tension): 135 mm
- Minimum Bend Radius - Installed: 91 mm
INST OS 1.5 X 8 PR
Nexans ref. IEC184AA008CXAA - Country ref. IEC184AA008CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 8
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 1.68 kN
- Minimum Bend Radius - During Installation (under Tension): 130 mm
- Minimum Bend Radius - Installed: 88 mm
INST OS 1.5 X 1 PR
Nexans ref. IEB184AA001CXAA - Country ref. IEB184AA001CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 1
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.21 kN
- Minimum Bend Radius - During Installation (under Tension): 59 mm
- Minimum Bend Radius - Installed: 40 mm
INST OS 1.5 X 1 PR BU
Nexans ref. IEB184AA001BFAA - Country ref. IEB184AA001BFAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 1
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.21 kN
- Minimum Bend Radius - During Installation (under Tension): 59 mm
- Minimum Bend Radius - Installed: 40 mm
INST OS 1.5 X 2 PR
Nexans ref. IEC184AA002CXAA - Country ref. IEC184AA002CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 2
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.42 kN
- Minimum Bend Radius - During Installation (under Tension): 89 mm
- Minimum Bend Radius - Installed: 59 mm
INST OS 1.5 X 4 PR
Nexans ref. IEC184AA004CXAA - Country ref. IEC184AA004CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 4
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.84 kN
- Minimum Bend Radius - During Installation (under Tension): 98 mm
- Minimum Bend Radius - Installed: 65 mm
INST OS 1.5 X 6 PR
Nexans ref. IEC184AA006CXAA - Country ref. IEC184AA006CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 6
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 1.26 kN
- Minimum Bend Radius - During Installation (under Tension): 115 mm
- Minimum Bend Radius - Installed: 78 mm
INST OS 1.5 X 10 PR
Nexans ref. IEC184AA010CXAA - Country ref. IEC184AA010CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 10
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 1.96 kN
- Minimum Bend Radius - During Installation (under Tension): 145 mm
- Minimum Bend Radius - Installed: 98 mm
INST OS 1.5 X 12 PR
Nexans ref. IEC184AA012CXAA - Country ref. IEC184AA012CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 12
- Maximum Pull Tension of Conductor: 3 kN
- Maximum Pulling Tension: 2.1 kN
- Minimum Bend Radius - During Installation (under Tension): 160 mm
- Minimum Bend Radius - Installed: 105 mm
INST OS 1.5 X 16 PR
Nexans ref. IEC184AA016CXAA - Country ref. IEC184AA016CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 16
- Maximum Pull Tension of Conductor: 3 kN
- Maximum Pulling Tension: 2.4 kN
- Minimum Bend Radius - During Installation (under Tension): 180 mm
- Minimum Bend Radius - Installed: 120 mm
INST OS 1.5 X 20 PR
Nexans ref. IEC184AA020CXAA - Country ref. IEC184AA020CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 20
- Maximum Pull Tension of Conductor: 4 kN
- Maximum Pulling Tension: 2.68 kN
- Minimum Bend Radius - During Installation (under Tension): 200 mm
- Minimum Bend Radius - Installed: 135 mm
INST OS 1.5 X 24 PR
Nexans ref. IEC184AA024CXAA - Country ref. IEC184AA024CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 24
- Maximum Pull Tension of Conductor: 5 kN
- Maximum Pulling Tension: 2.89 kN
- Minimum Bend Radius - During Installation (under Tension): 215 mm
- Minimum Bend Radius - Installed: 145 mm
INST OS 1.5 X 36 PR
Nexans ref. IEC184AA036CXAA - Country ref. IEC184AA036CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 36
- Maximum Pull Tension of Conductor: 8 kN
- Maximum Pulling Tension: 3.5 kN
- Minimum Bend Radius - During Installation (under Tension): 265 mm
- Minimum Bend Radius - Installed: 175 mm
INST OS 1.5 X 50 PR
Nexans ref. IEC184AA050CXAA - Country ref. IEC184AA050CXAA
- Packaging: Cut to length (m)
- Screen: Overall screen
- Conductor cross-section: 1.5 mm²
- Number of pairs: 50
- Maximum Pull Tension of Conductor: 10 kN
- Maximum Pulling Tension: 4.1 kN
- Minimum Bend Radius - During Installation (under Tension): 310 mm
- Minimum Bend Radius - Installed: 205 mm
Description
Description
- Plain annealed copper conductor
- V-90RP PVC insulated
- Twisted pairs
- Overall, or Individual & overall screened with aluminium polyester tape plus tinned annealed copper drain wire
- Rip cord
- 5V-90RP PVC sheathed.

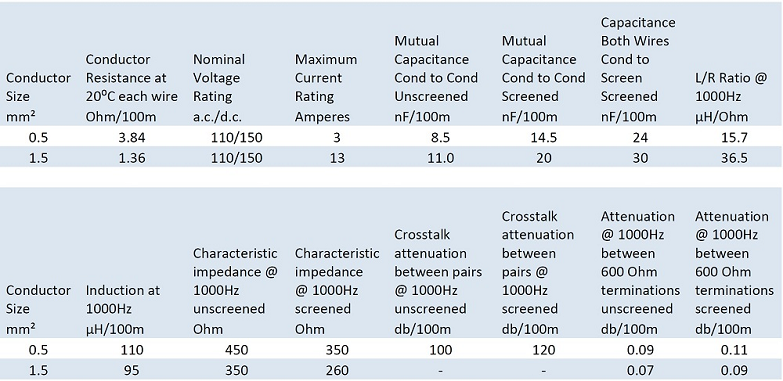

Instrolex Electrical Characteristics
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Annealed copper
Individual screen
-
Insulation
PVC
Outer sheath
PVC
Overall screen
Annealed tinned copper drain wire + aluminium/polyester tape
Dimensional characteristics
Dimensional characteristics
Number of wires per conductor
7
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
