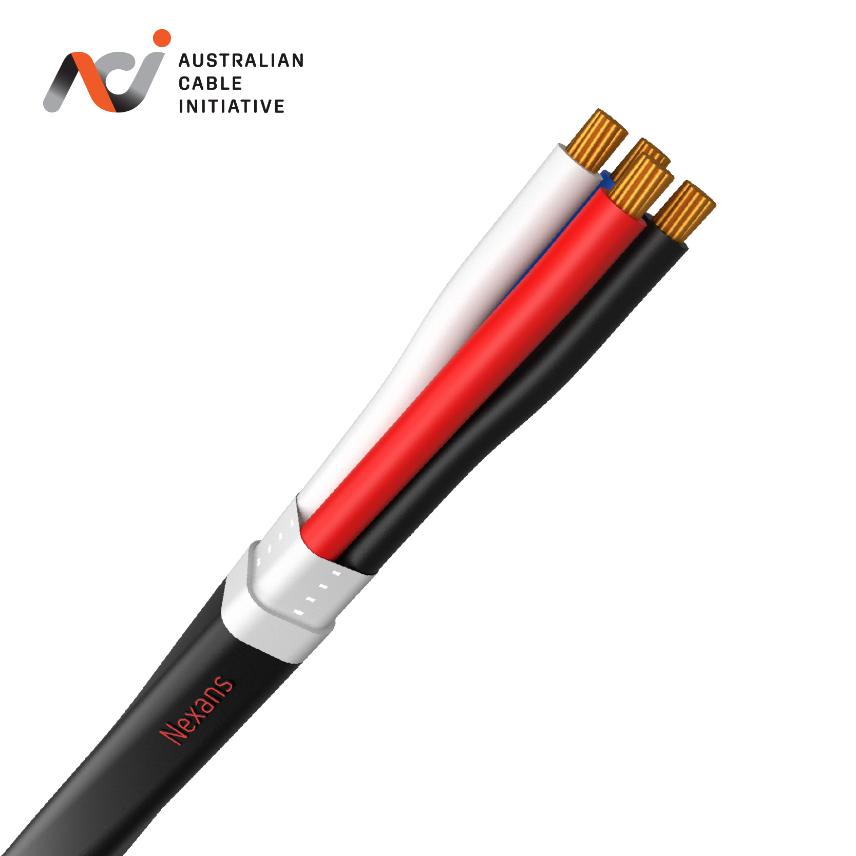

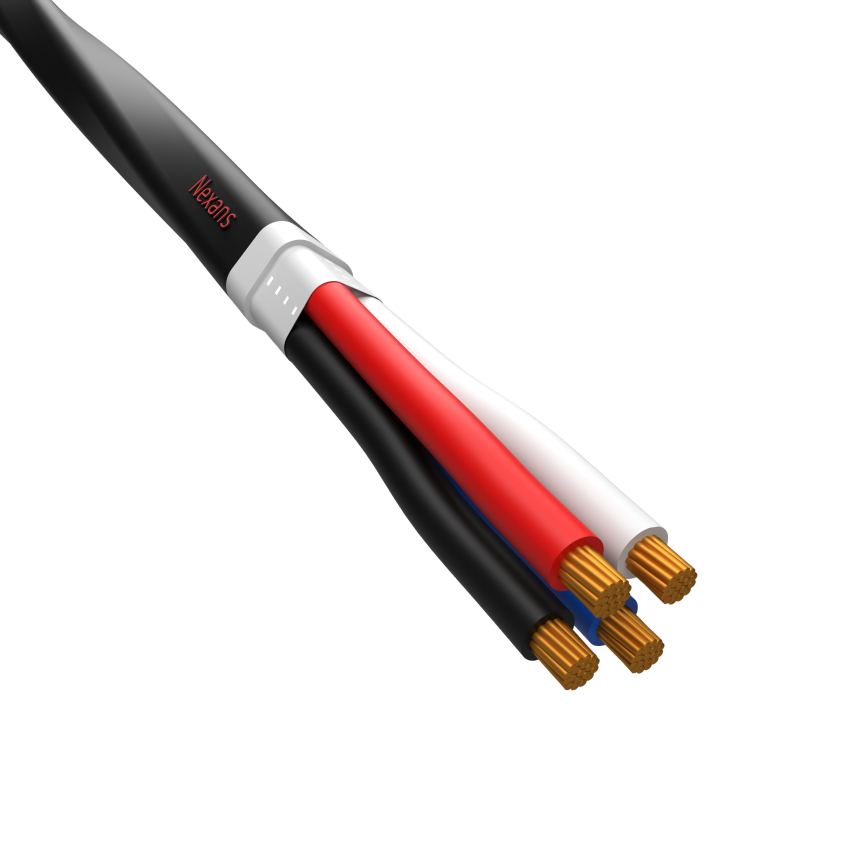

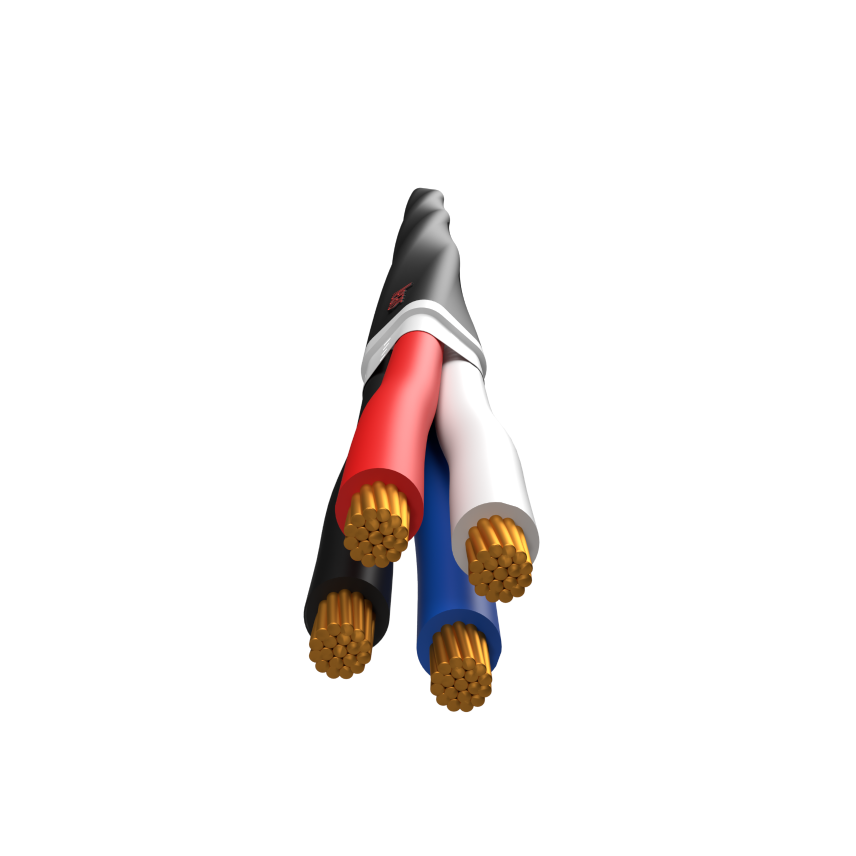

XLPE URD Power Service 4C

XLPE URD Power Service 4C XLPE URD Power Service 4C XLPE URD Power Service 4C

XLPE URD Power Service 4C

4 core Low Voltage Underground Residential Distribution Cable to AS/NZS 4026. Manufactured to PVC Best Practice Guidelines.

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

4X50mm2 0.6/1.0kV XLPE URD

Nexans ref. HEVC19AA004

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



4X50mm2 0.6/1.0kV XLPE URD to Vic Spec

Nexans ref. HEVC19SJ004CXEM - Country ref. HEVC19SJ004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



4x16mm2 0.6/1.0kV XLPE URD

Nexans ref. HEVP15AA004CXEM - Country ref. HEVP15AA004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²



4x16mm2 0.6/1.0kV XLPE URD 300m

Nexans ref. HEVP15A3004CXEM - Country ref. HEVP15A3004CXEM

  • Conductor cross-section: 16 mm²



4x16mm2 0.6/1.0kV XLPE URD to Vic Spec

Nexans ref. HEVP15SJ004CXEM - Country ref. HEVP15SJ004CXEM

  • Packaging: Cut to length (500m)
  • Conductor cross-section: 16 mm²



4x16mm2 0.6/1.0kV XLPE to Networks NSW Spec

Nexans ref. HEVP15SK004CXEM - Country ref. HEVP15SK004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²



4x16mm2 0.6/1.0kV XLPE to Networks NSW Spec 500m

Nexans ref. HEVP15SK004CXEM500 - Country ref. HEVP15SK004CXEM500

  • Conductor cross-section: 16 mm²



4x25mm2 0.6/1.0kV XLPE URD

Nexans ref. HEVC17AA004

  • Packaging: m
  • Conductor cross-section: 25 mm²



4x25mm2 0.6/1.0kV XLPE to Networks NSW Spec

Nexans ref. HEVC17SK004CXEM - Country ref. HEVC17SK004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²



4x25mm2 0.6/1.0kV XLPE to Networks NSW Spec 100m

Nexans ref. HEVC17SK004CXEM100

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²



4x25mm2 0.6/1.0kV XLPE to Networks NSW Spec 250m

Nexans ref. HEVC17SK004CXEM250

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²



4x25mm2 0.6/1.0kV XLPE to Networks NSW Spec 500m

Nexans ref. HEVC17SK004CXEM500

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²



4x35mm2 0.6/1.0kV XLPE URD

Nexans ref. HEVC18AA004

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²



4x35mm2 0.6/1.0kV XLPE URD to Vic Spec

Nexans ref. HEVC18SJ004CXEM - Country ref. HEVC18SJ004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²



4x50mm2 0.6/1.0kV XLPE to Networks NSW Spec

Nexans ref. HEVC19SK004CXEM - Country ref. HEVC19SK004CXEM

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



4x50mm2 0.6/1.0kV XLPE to Networks NSW Spec 100m

Nexans ref. HEVC19SK004CXEM100

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



4x50mm2 0.6/1.0kV XLPE to Networks NSW Spec 250m

Nexans ref. HEVC19SK004CXEM250

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



4x50mm2 0.6/1.0kV XLPE to Networks NSW Spec 500m

Nexans ref. HEVC19SK004CXEM500

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²



Description

Description

Standards

  • Product
    AS/NZS 4026
  • 4 cores
  • 0.6/1kV
  • X-90 insulated,
  • PVC sheathed
  • Low Voltage Underground Residential Distribution Cable to
    AS/NZS 4026, 90°C.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-90
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Resources

Resources

Current carrying capacities three phase (in Amps)

Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90

Maximum conductor temperature: 90°C

Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND

Conductor cross-section
mm² Cu Al Cu Al Cu Al Cu Al Cu Al Cu Al Cu Al Cu Al Cu Al
1.0 16 0 14 0 12 0 7 0 13 0 10 0 6 0 22 0 16 0
1.5 20 0 19 0 15 0 9 0 16 0 13 0 8 0 28 0 20 0
2.5 28 0 26 0 21 0 13 0 24 0 19 0 12 0 39 0 29 0
4.0 38 0 35 0 28 0 18 0 30 0 24 0 15 0 51 0 37 0
6.0 48 0 45 0 36 0 22 0 38 0 30 0 19 0 63 0 46 0
10.0 66 0 62 0 49 0 31 0 53 0 42 0 26 0 85 0 63 0
16.0 88 68 83 64 66 51 41 32 68 53 55 42 34 26 110 85 81 63
25.0 119 93 111 84 89 69 56 43 91 71 73 57 46 36 143 111 107 83
35.0 147 114 137 106 110 85 69 53 114 88 91 71 57 44 172 133 130 101
50.0 180 140 168 10 134 104 0 0 136 105 108 84 0 0 204 159 155 120
70.0 229 178 213 165 170 132 0 0 173 134 138 107 0 0 251 195 193 150
95.0 283 220 263 204 210 163 0 0 209 162 167 129 0 0 302 234 233 181
120.0 330 256 306 238 245 190 0 0 246 192 197 153 0 0 344 268 270 210
150.0 377 293 350 272 280 217 0 0 277 216 222 172 0 0 385 299 304 236
185.0 436 340 404 315 323 252 0 0 322 251 257 201 0 0 435 340 348 272
240.0 517 405 479 375 383 300 0 0 386 303 309 242 0 0 504 395 411 322
300.0 594 467 549 432 0 0 0 0 0 0 0 0 0 0 567 446 463 365
400.0 685 545 632 504 0 0 0 0 0 0 0 0 0 0 640 510 524 417
500.0 779 629 718 579 0 0 0 0 0 0 0 0 0 0 714 577 601 485
Unenclosed spaced
Unenclosed touching
Unenclosed and partially surrounded by thermal insulation
Unenclosed and completely surrounded by thermal insulation
Enclosed conduit in air
Enclosed, partially surrounded by thermal insulation
Enclosed, completely surrounded by thermal insulation
Buried direct
Underground ducts A
