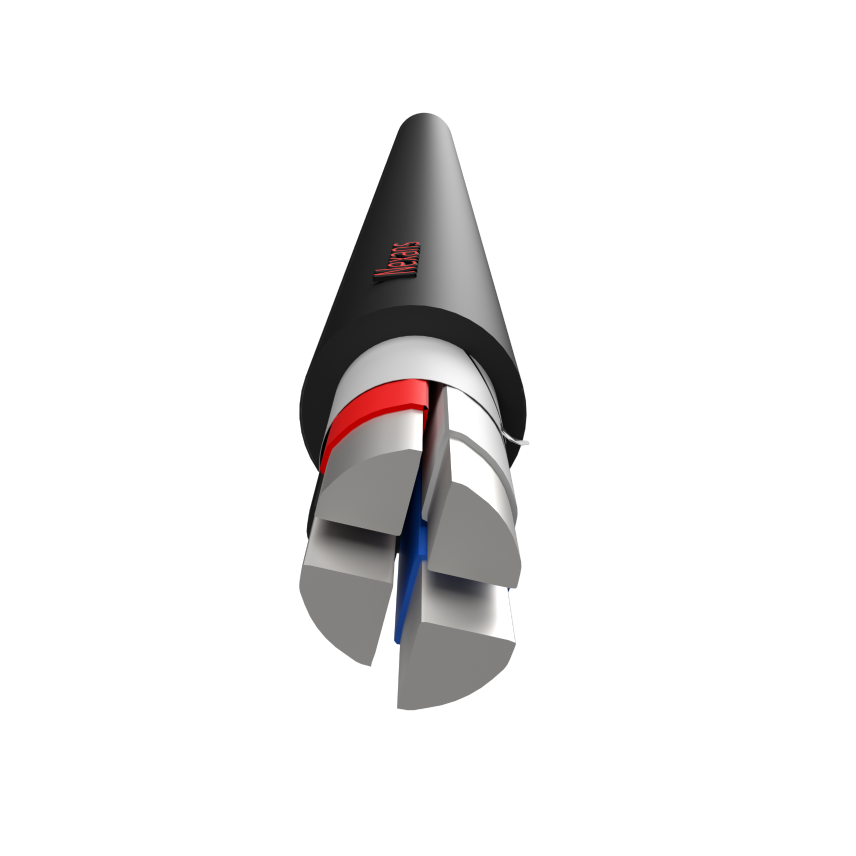

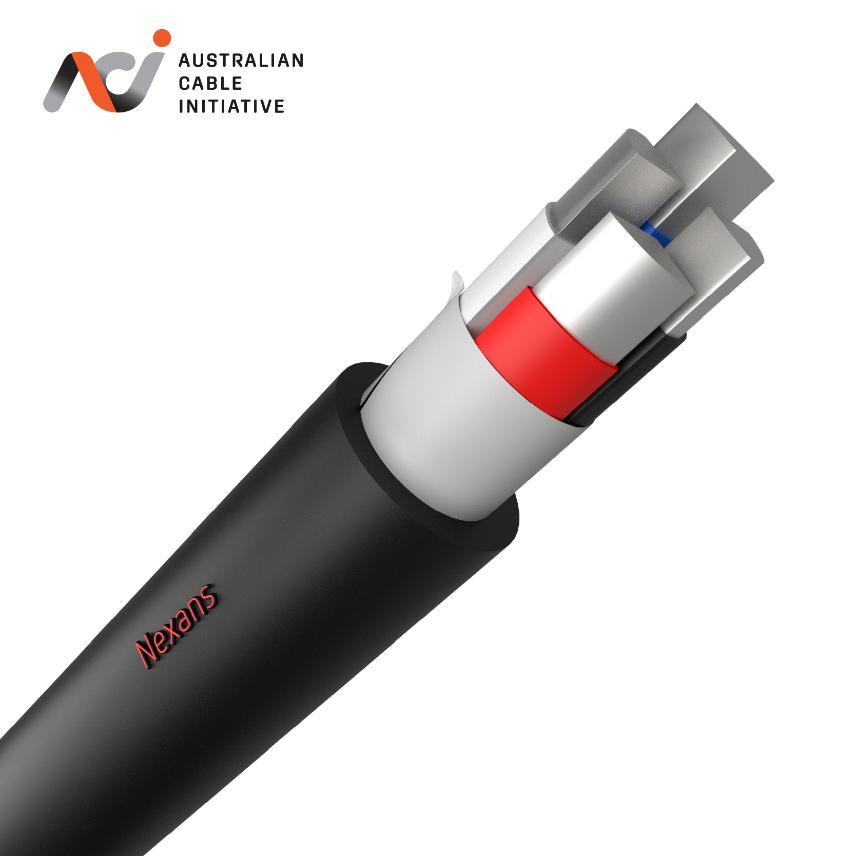

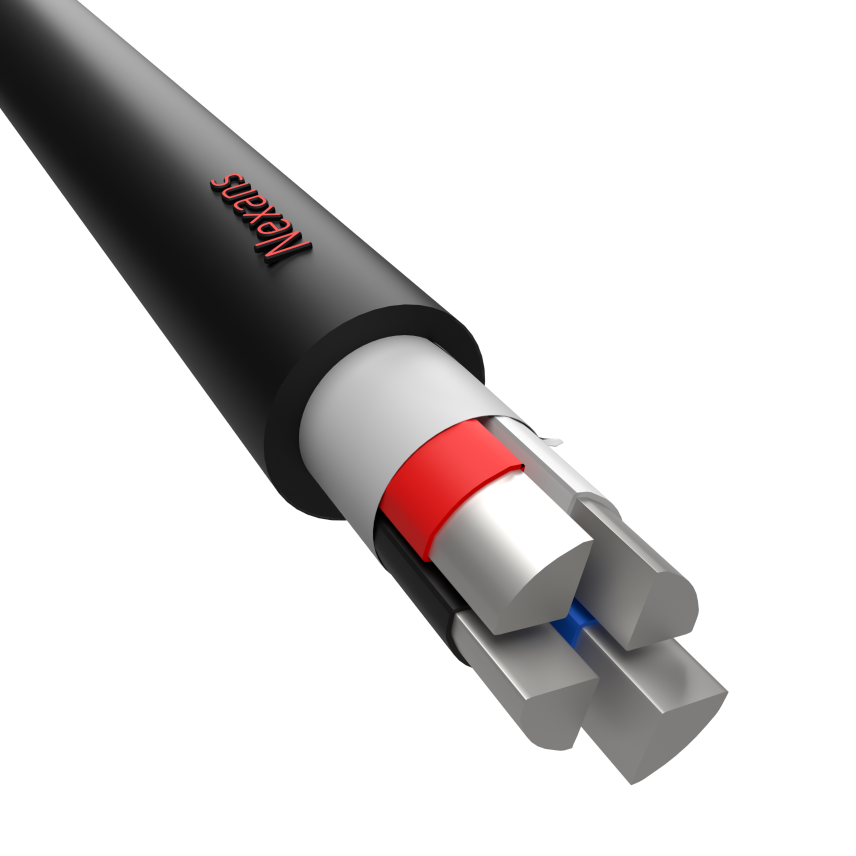

XLPE URD Power Distribution 4C
XLPE URD Power Distribution 4C
4 core, sector aluminium, X-90 insulated, PVC sheathed, Low Voltage Underground Residential Distribution (URD) Cable to AS/NZS 4026.
Read more4X185mm2 Solid AL XLPE 0.6/1KV PVC URD (Solidal)
Nexans ref. XDDS25AA004CXAA
- Packaging: Cut to length (m)
- Conductor flexibility: Solid
- Type of conductor: Solid
- Conductor cross-section: 185 mm²
- Neutral conductor section (when smaller): 185 mm²
- Maximum Pulling Tension: 5.2 kN
- Minimum Bend Radius - During Installation (under Tension): 500 mm
- Minimum Bend Radius - Installed: 350 mm
4X185mm2 Solid AL XLPE 0.6/1KV PVC URD (Solidal) to Powercor Spec
Nexans ref. XDDS25SU004CXAA - Country ref. XDDS25SU004CXAA
- Packaging: Cut to length (m)
- Conductor flexibility: Solid
- Type of conductor: Solid
- Conductor cross-section: 185 mm²
- Neutral conductor section (when smaller): 185 mm²
- Maximum Pulling Tension: 5.2 kN
- Minimum Bend Radius - During Installation (under Tension): 500 mm
- Minimum Bend Radius - Installed: 350 mm
4X240mm2 AL XLPE 0.6/1KV PVC URD
Nexans ref. XDDG37AA004CXAA - Country ref. XDDG37AA004CXAA
- Packaging: Cut to length (600m)
- Conductor flexibility: Stranded
- Type of conductor: Stranded
- Conductor cross-section: 240 mm²
- Neutral conductor section (when smaller): 240 mm²
- Maximum Pulling Tension: 6.4 kN
- Minimum Bend Radius - During Installation (under Tension): 650 mm
- Minimum Bend Radius - Installed: 430 mm
4X240mm2 Solid AL XLPE 0.6/1KV PVC URD (Solidal)
Nexans ref. XDDS26AA004CXAA - Country ref. XDDS26AA004CXAA
- Packaging: Cut to length (m)
- Conductor flexibility: Solid
- Type of conductor: Solid
- Conductor cross-section: 240 mm²
- Neutral conductor section (when smaller): 240 mm²
- Maximum Pulling Tension: 5.9 kN
- Minimum Bend Radius - During Installation (under Tension): 600 mm
- Minimum Bend Radius - Installed: 390 mm
4X240mm2 Solid AL XLPE 0.6/1KV PVC URD (Solidal) to NSW Spec
Nexans ref. XDDS26SK004CXAA - Country ref. XDDS26SK004CXAA
- Packaging: Cut to length (500m)
- Conductor flexibility: Solid
- Type of conductor: Solid
- Conductor cross-section: 240 mm²
- Neutral conductor section (when smaller): 240 mm²
- Maximum Pulling Tension: 5.9 kN
- Minimum Bend Radius - During Installation (under Tension): 600 mm
- Minimum Bend Radius - Installed: 390 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 4026; AS/NZS 5000.1
- 4 core annealed aluminium sector,
- 0.6/1 kV
- X-90 insulated,
- PVC sheathed
- Low Voltage Underground Residential Distribution Cable to
AS/NZS 4026, 90°C.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Black
Conductor material
Aluminum
Conductor shape
Sector-shaped
Insulation
X-90
Outer sheath
PVC
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Maximum Pull Tension of Conductor
25 kN
Resources
Resources
Current carrying capacities three phase (in Amps)
Insulation type: X-90, X-HF-90, R-EP-90, R-CPE-90, R-HF-90 OR R-CSP-90
Maximum conductor temperature: 90°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.0 | 16 | 0 | 14 | 0 | 12 | 0 | 7 | 0 | 13 | 0 | 10 | 0 | 6 | 0 | 22 | 0 | 16 | 0 |
| 1.5 | 20 | 0 | 19 | 0 | 15 | 0 | 9 | 0 | 16 | 0 | 13 | 0 | 8 | 0 | 28 | 0 | 20 | 0 |
| 2.5 | 28 | 0 | 26 | 0 | 21 | 0 | 13 | 0 | 24 | 0 | 19 | 0 | 12 | 0 | 39 | 0 | 29 | 0 |
| 4.0 | 38 | 0 | 35 | 0 | 28 | 0 | 18 | 0 | 30 | 0 | 24 | 0 | 15 | 0 | 51 | 0 | 37 | 0 |
| 6.0 | 48 | 0 | 45 | 0 | 36 | 0 | 22 | 0 | 38 | 0 | 30 | 0 | 19 | 0 | 63 | 0 | 46 | 0 |
| 10.0 | 66 | 0 | 62 | 0 | 49 | 0 | 31 | 0 | 53 | 0 | 42 | 0 | 26 | 0 | 85 | 0 | 63 | 0 |
| 16.0 | 88 | 68 | 83 | 64 | 66 | 51 | 41 | 32 | 68 | 53 | 55 | 42 | 34 | 26 | 110 | 85 | 81 | 63 |
| 25.0 | 119 | 93 | 111 | 84 | 89 | 69 | 56 | 43 | 91 | 71 | 73 | 57 | 46 | 36 | 143 | 111 | 107 | 83 |
| 35.0 | 147 | 114 | 137 | 106 | 110 | 85 | 69 | 53 | 114 | 88 | 91 | 71 | 57 | 44 | 172 | 133 | 130 | 101 |
| 50.0 | 180 | 140 | 168 | 10 | 134 | 104 | 0 | 0 | 136 | 105 | 108 | 84 | 0 | 0 | 204 | 159 | 155 | 120 |
| 70.0 | 229 | 178 | 213 | 165 | 170 | 132 | 0 | 0 | 173 | 134 | 138 | 107 | 0 | 0 | 251 | 195 | 193 | 150 |
| 95.0 | 283 | 220 | 263 | 204 | 210 | 163 | 0 | 0 | 209 | 162 | 167 | 129 | 0 | 0 | 302 | 234 | 233 | 181 |
| 120.0 | 330 | 256 | 306 | 238 | 245 | 190 | 0 | 0 | 246 | 192 | 197 | 153 | 0 | 0 | 344 | 268 | 270 | 210 |
| 150.0 | 377 | 293 | 350 | 272 | 280 | 217 | 0 | 0 | 277 | 216 | 222 | 172 | 0 | 0 | 385 | 299 | 304 | 236 |
| 185.0 | 436 | 340 | 404 | 315 | 323 | 252 | 0 | 0 | 322 | 251 | 257 | 201 | 0 | 0 | 435 | 340 | 348 | 272 |
| 240.0 | 517 | 405 | 479 | 375 | 383 | 300 | 0 | 0 | 386 | 303 | 309 | 242 | 0 | 0 | 504 | 395 | 411 | 322 |
| 300.0 | 594 | 467 | 549 | 432 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 567 | 446 | 463 | 365 |
| 400.0 | 685 | 545 | 632 | 504 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 640 | 510 | 524 | 417 |
| 500.0 | 779 | 629 | 718 | 579 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 714 | 577 | 601 | 485 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts A |
