Lighting Home Run
Lighting Home Run
Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.3
Read more10m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.100
- Packaging: Unit
- Approximate weight: 13.51 kg/km
15m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.150
- Packaging: Unit
- Approximate weight: 18.82 kg/km
20m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.200
- Packaging: Unit
- Approximate weight: 24.12 kg/km
25m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.250
- Packaging: Unit
- Approximate weight: 29.43 kg/km
30m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.300
- Packaging: Unit
- Approximate weight: 34.73 kg/km
35m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.350
- Packaging: Unit
- Approximate weight: 40.03 kg/km
40m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.400
- Packaging: Unit
- Approximate weight: 45.34 kg/km
45m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.450
- Packaging: Unit
- Approximate weight: 50.65 kg/km
50m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.500
- Packaging: Unit
- Approximate weight: 55.95 kg/km
5m 6 Port Pluggable HRB - 6 Circuit 2.5mm² Lighting Home Run
Nexans ref. A1.1.6S.3.050
- Packaging: Unit
- Approximate weight: 8.21 kg/km
Description
Description

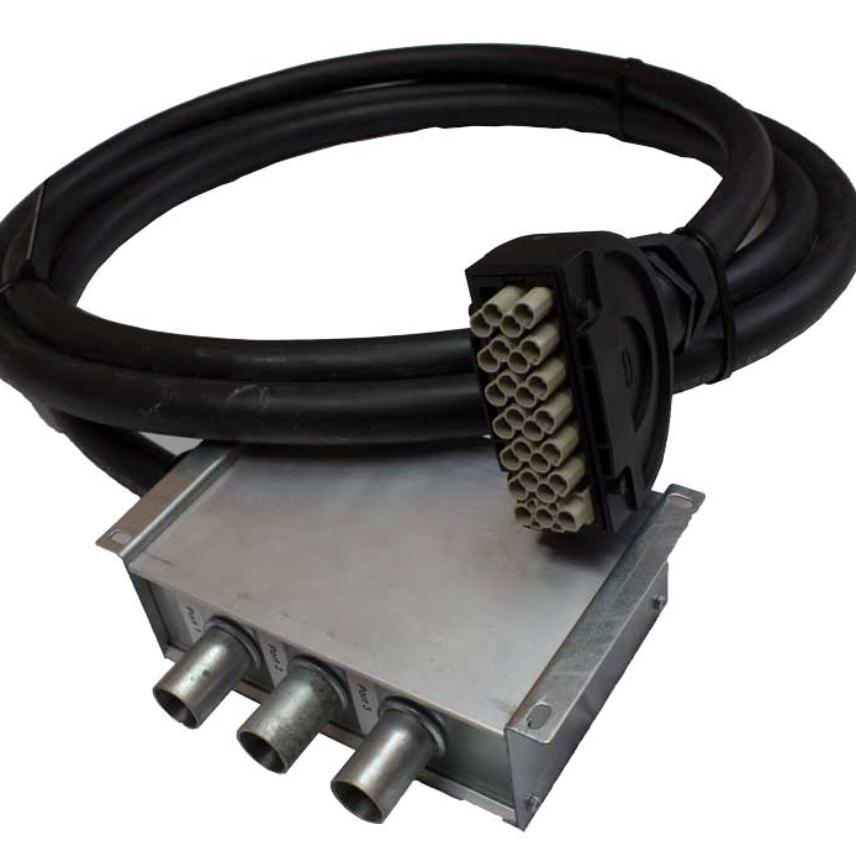

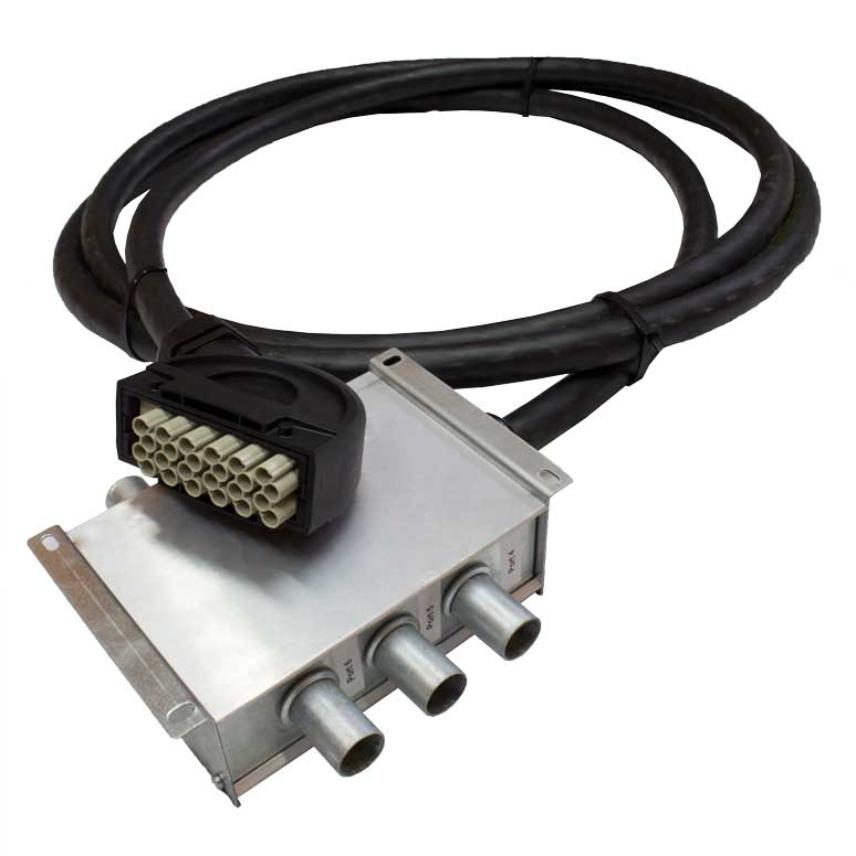

As part of the ENVIROLEX Flexible Multicore 90°C product range, the HomeRun connections are a measured, pre-wired corridor feed to service the field wiring to rooms and corridors and is a pluggable solution to the PanelMounts. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.3
Constructions
- Multicore cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
- Rating: Up to 20 amp. No# Conductors: 31wire. Conductor Size: 2.5mm. Ports: 6cct
Benefits
- Provide measured, pre-wired corridor feeds to service the field wiring to rooms and corridors. A pluggable solutions/connection to the DB
Applications
- Corridor Wiring
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
