Type SC/GZ

Nexans ref. GALSTEEL 3/2.00

  • Conductor cross-section: 9.43 mm²

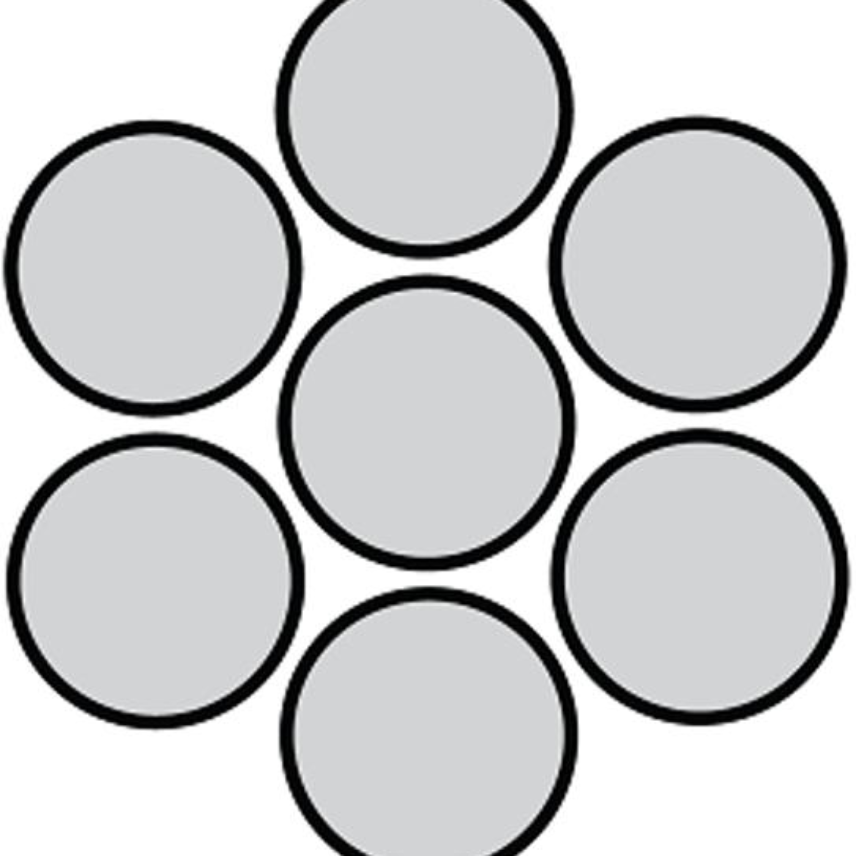

  • Stranding (No./mm): 3/2.00



Type SC/GZ

Nexans ref. GALSTEEL 3/2.75

  • Conductor cross-section: 17.8 mm²
  • Stranding (No./mm): 3/2.75



Type SC/GZ

Nexans ref. GALSTEEL 7/2.00

  • Conductor cross-section: 22 mm²
  • Stranding (No./mm): 7/2.00



Type SC/GZ

Nexans ref. GALSTEEL 7/2.75

  • Conductor cross-section: 41.6 mm²
  • Stranding (No./mm): 7/2.75



Type SC/GZ

Nexans ref. GALSTEEL 7/3.25

  • Conductor cross-section: 58.1 mm²
  • Stranding (No./mm): 7/3.25



Type SC/GZ

Nexans ref. GALSTEEL 7/3.75

  • Conductor cross-section: 77.3 mm²
  • Stranding (No./mm): 7/3.75



Type SC/GZ

Nexans ref.

  • Conductor cross-section: 59.7 mm²
  • Stranding (No./mm): 19/2.00



Type SC/GZ

Nexans ref.

  • Conductor cross-section: 113 mm²
  • Stranding (No./mm): 19/2.75



Type SC/GZ

Nexans ref. GALSTEEL 19/3.25

  • Conductor cross-section: 158 mm²
  • Stranding (No./mm): 19/3.25



Description

Description

The wires in all bare conductors are stranded concentrically with successive layers having an opposite direction of lay, the outermost layer being right-handed. When required, a larger central wire (king-wire) is included in a conductor. The diameter of this wire is based on conductor design considerations and is usually 5% greater than the surrounding wires. The incorporation of a king wire is often an advantage for ACSR type conductors, as it ensures that the surrounding layer of wires fits firmly on the central wire.

Note Current ratings are based on the following conditions

  • Conductor temperature rise above ambient of 40°C
  • Ambient air temperature of 35°C for summer noon or 10°C for winter night
  • Direct solar radiation intensity of 1000W/m² for summer noon or zero for winter night
  • Diffuse solar radiation intensity of 100W/m² for summer noon or zero for winter night
  • Ground reflectance of 0.2
  • Emissivity and solar absorption coefficient of the conductor surface, 0.5

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Galvanised Steel

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Resources

Resources

Type SC/GZ - Continuous Current Carrying Capacity in Amps

Conductor cross-section
mm² Al Al Al Al Al Al
9.43 21 37 43 17 34 40
17.8 31 54 63 25 49 58
22.0 35 61 71 28 55 66
41.6 54 91 106 41 82 97
58.1 67 113 131 51 100 119
59.7 69 115 134 52 102 121
77.3 81 134 156 60 119 141
113.0 105 171 199 76 150 179
158.0 133 213 247 94 186 221
Winter night - Still air
Winter night - 1m/s wind
Winter night - 2m/s wind
Summer noon - Still air
Summer noon - 1m/s wind
Summer noon - 2m/s wind
