MOBIWAY BOOST

Products

CU TPS 2X 1.5+E WH 150M BOOST

Nexans ref. CNCP05MK002WVAA - Country ref. CNCP05MK002WVAA

  • Packaging: Unit
  • Cable length: 150 m
  • Conductor cross-section: 1.5 mm²
  • Earth conductor cross section: 1.5 mm²



CU TPS 2X2.5+E WH 110M BOOST NEW

Nexans ref. CNCP07MK002WVAA - Country ref. CNCP07MK002WVAA

  • Packaging: Unit
  • Cable length: 110 m
  • Conductor cross-section: 2.5 mm²
  • Earth conductor cross section: 2.5 mm²



Description

Description

Standards

  • National
    AS/NZS 1125; AS/NZS 5000.2

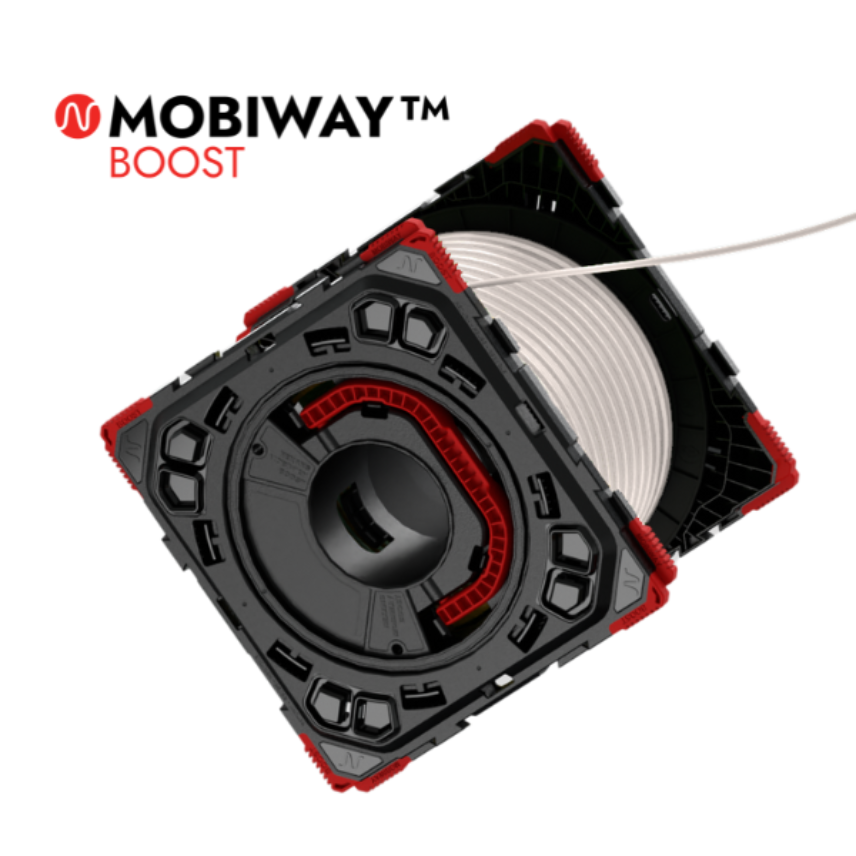

An innovative 'cable & reel' installation system that is easy to transport, easy to install, and reusable!



The MOBIWAY BOOST system includes:

  • The patented MOBIWAY BOOST reel system
  • Nexans Top 2 selling TPS cables in optimal, pre-cut length


Features & Benefits:

  • Integrated handle means easy to carry

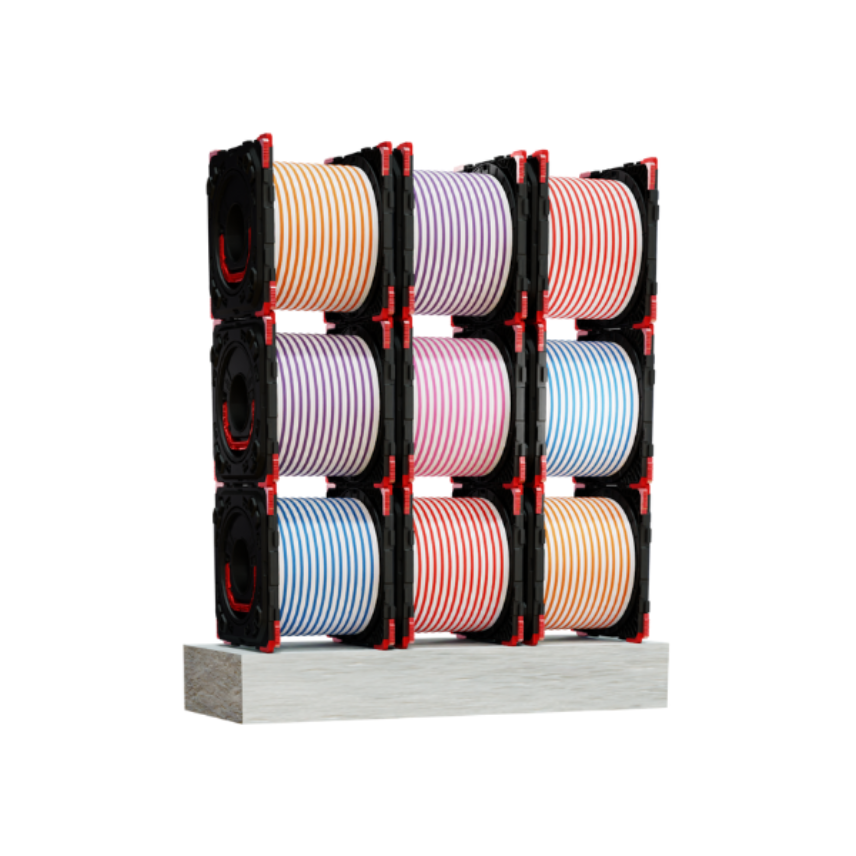

  • Vertical or horizontal stacking for running multiple cables
  • Optimised pre-cut cable length on every reel
  • Meter marked
  • Easy to unspool
  • Easy to rewind
  • The MOBIWAY BOOST reel is returnable and reusable
  • 2 core+earth
  • 450/750V V-90 insulated
  • PVC sheathed to AS/NZS 5000.2
  • Copper Conductors



Cable data

  • 2 core+earth
  • 450/750V V-90 insulated
  • PVC sheathed to AS/NZS 5000.2
  • Copper conductors



Application

  • Domestic, residential, and commercial building
  • Industrial general applications
  • Fixed applications for power and lighting


MOBIWAY BOOST UNIT DETAILS

MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm

PALLET DIMENSIONS (FULL PALLET = 64 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm - WEIGHT: 1150kg (approx)

MOBIWAY BOOST

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
White / Black / Red
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
With Green/Yellow core
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
2
Number of earth cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Bending factor when installed
4 (xD)
Bending factor when laying
6 (xD)

Resources

Resources

PVC Flat With Earth - Current carrying capacities single phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu
1.0 15.0 14.0 11.0 7.0 13.0 10.0 6.0 17.0
1.5 19.0 18.0 14.0 9.0 16.0 13.0 8.0 21.0
2.5 27.0 26.0 20.0 13.0 23.0 19.0 12.0 30.0
4.0 37.0 34.0 27.0 17.0 30.0 24.0 15.0 39.0
6.0 46.0 44.0 35.0 22.0 39.0 31.0 20.0 50.0
10.0 64.0 60.0 48.0 30.0 52.0 42.0 26.0 66.0
16.0 85.0 80.0 64.0 40.0 68.0 54.0 34.0 86.0
Unenclosed spaced
Unenclosed touching
Unenclosed and partially surrounded by thermal insulation
Unenclosed and completely surrounded by thermal insulation
Enclosed conduit in air
Enclosed, partially surrounded by thermal insulation
Enclosed, completely surrounded by thermal insulation
Underground ducts

PVC Flat With Earth - Current carrying capacities three phase (in Amps)

Copper Conductor

Insulation PVC

Maximum Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu Cu
1.0 13.0 12.0 9.0 6.0 11.0 9.0 5.0 14.0
1.5 16.0 15.0 12.0 8.0 14.0 11.0 7.0 18.0
2.5 23.0 22.0 17.0 11.0 20.0 16.0 10.0 25.0
4.0 31.0 29.0 23.0 15.0 25.0 20.0 13.0 33.0
Unenclosed spaced
Unenclosed touching
Unenclosed and partially surrounded by thermal insulation
Unenclosed and completely surrounded by thermal insulation
Enclosed conduit in air
Enclosed, partially surrounded by thermal insulation
Enclosed, completely surrounded by thermal insulation
Underground ducts
