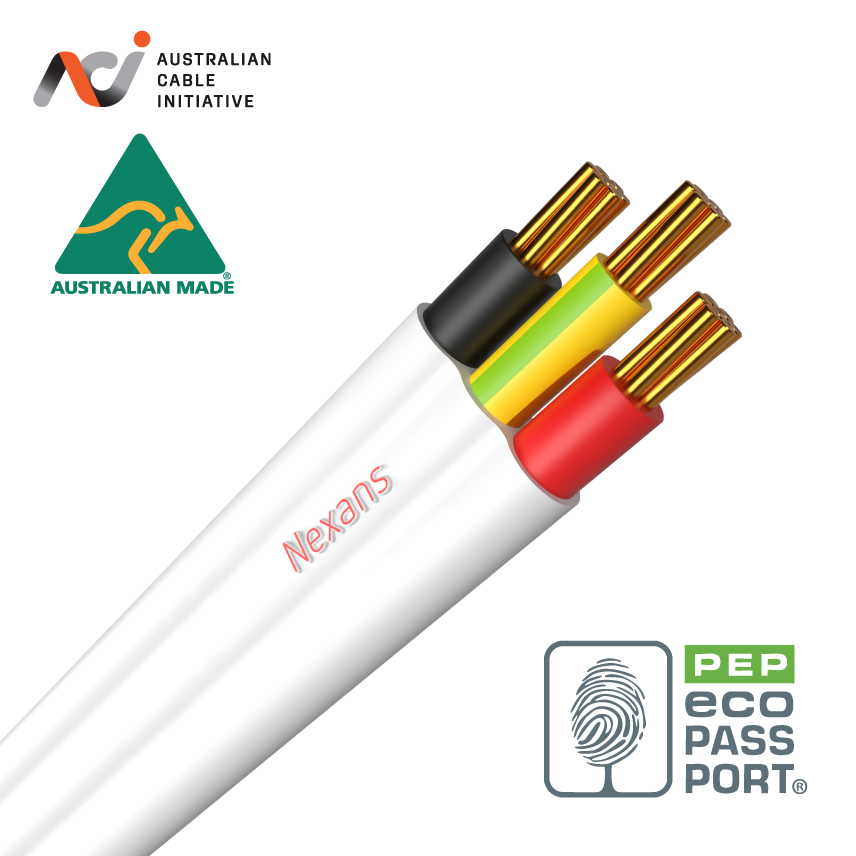

1mm 2C&E Flat White 200m
1mm 2C&E Flat White 200m
2X1.0mm2 + E PVC Flat Red Black Cores with White Sheath
Read more- Nexans ref. : CNCP02A2002WVAA
- Country ref. : CNCP02A2002WVAA
- EAN : 9319215300203
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.2
- 2 & 3 core+earth flat,
- 450/750V V-90 insulated,
- 90°C PVC sheathed to AS/NZS 5000.2,
- Copper conductors.
Twin & Earth, Flats, TPS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White / Black / Red
Conductor flexibility
Solid class 1
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
Type of conductor
Solid copper
With Green/Yellow core
Yes
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Approximate weight
7.74 kg/100m
Cable length
200 m
Conductor cross-section
1 mm²
Earth conductor cross section
1 mm²
Neutral conductor section (when smaller)
- mm²
Nominal insulation thickness
0.6 mm
Nominal outer sheath thickness
0.9 mm
Nominal overall diameter
8.9 x 4.2
Number of cores
2
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Conductor AC resistance at 50 Hz
25.8 Ohm/km
Inductive reactance at 50Hz
0.184 Ohm/km
Insulation resistance at 20°C
17 MOhm.km
Max. DC resistance of the conductor at 20°C
18.1 Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Bending factor when installed
4 (xD)
Bending factor when laying
6 (xD)
Resources
Resources
Selling & delivery Information
Full pallet Quantity 12,800m 64 x 100m Spools
